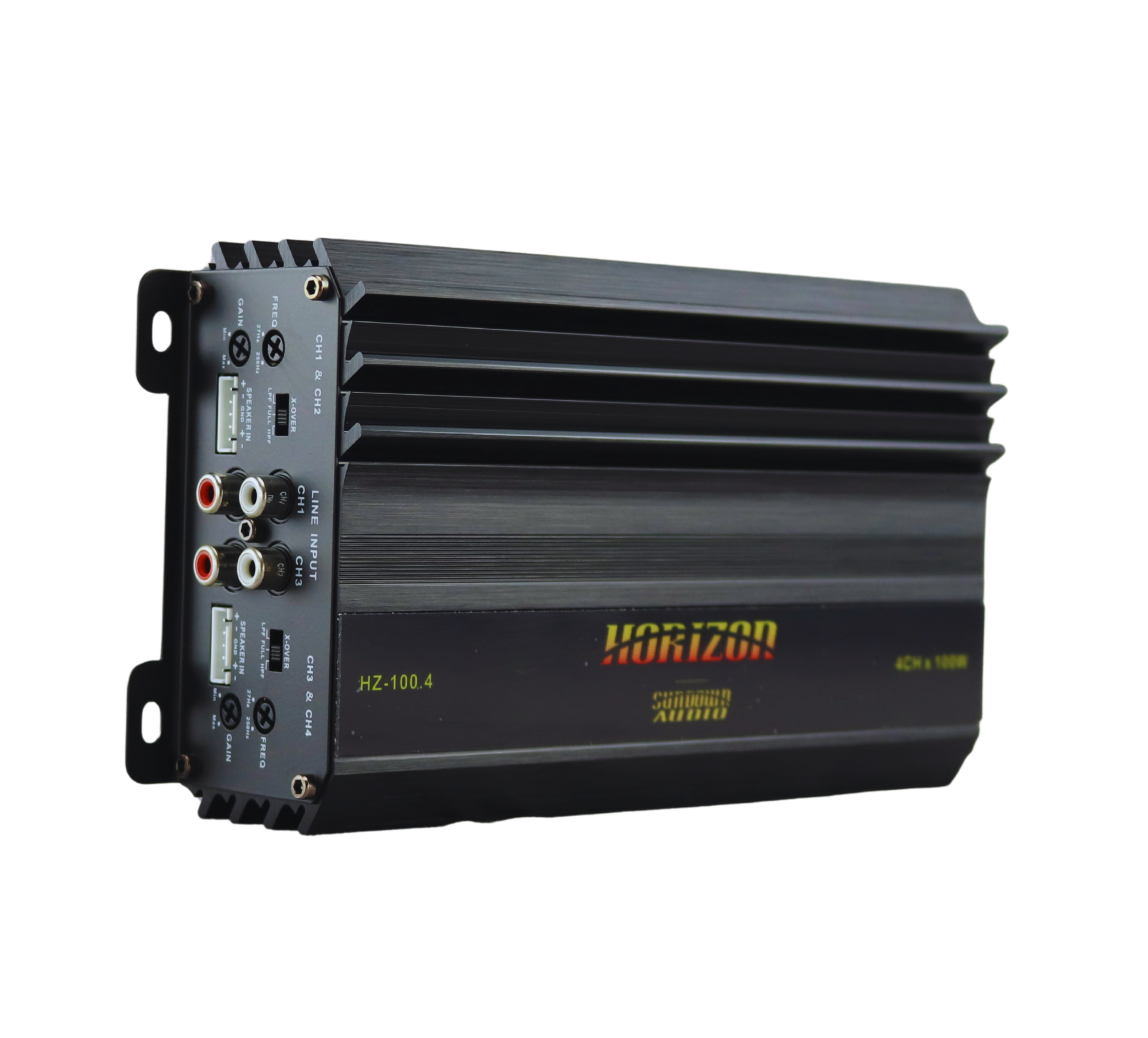

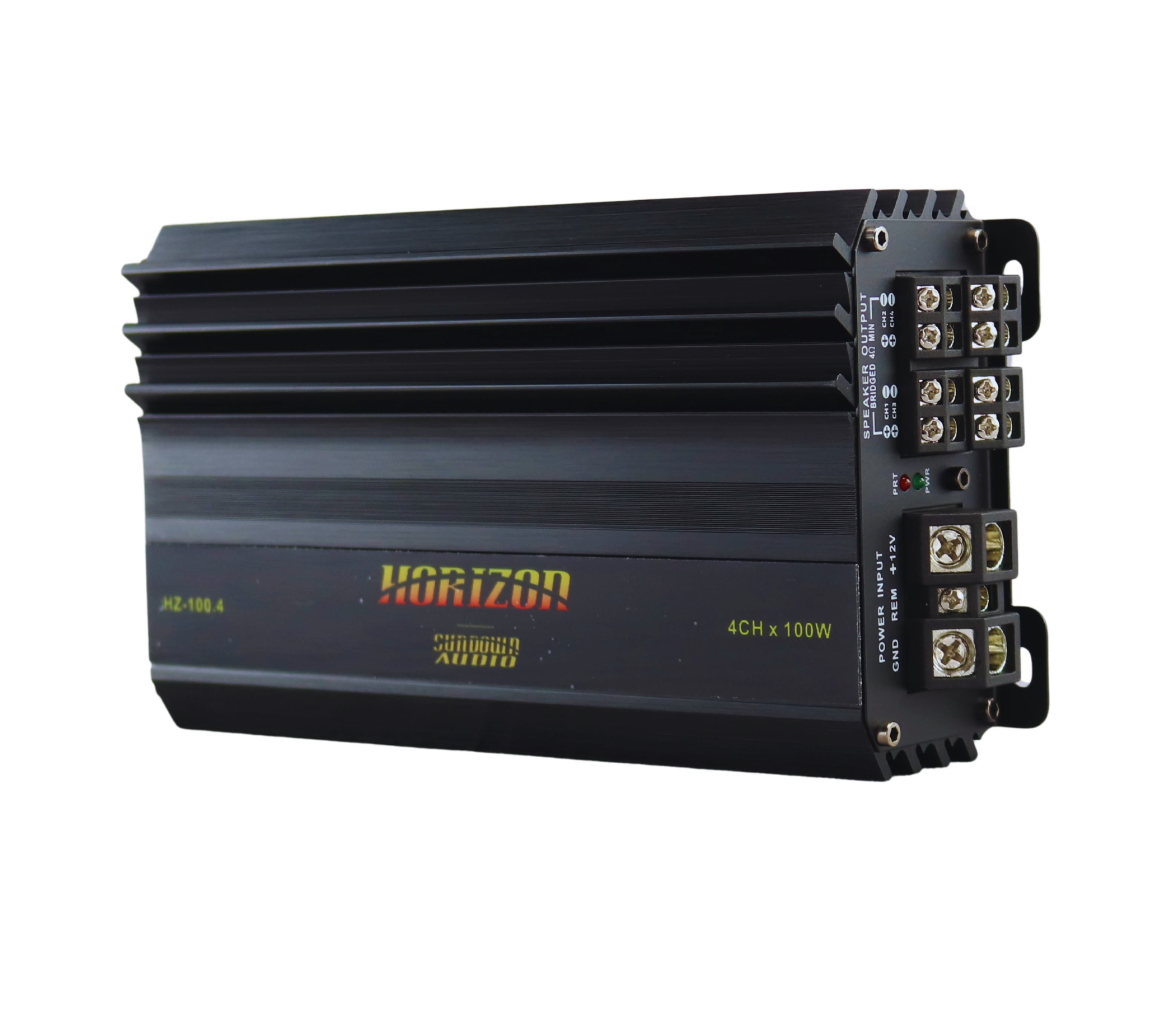

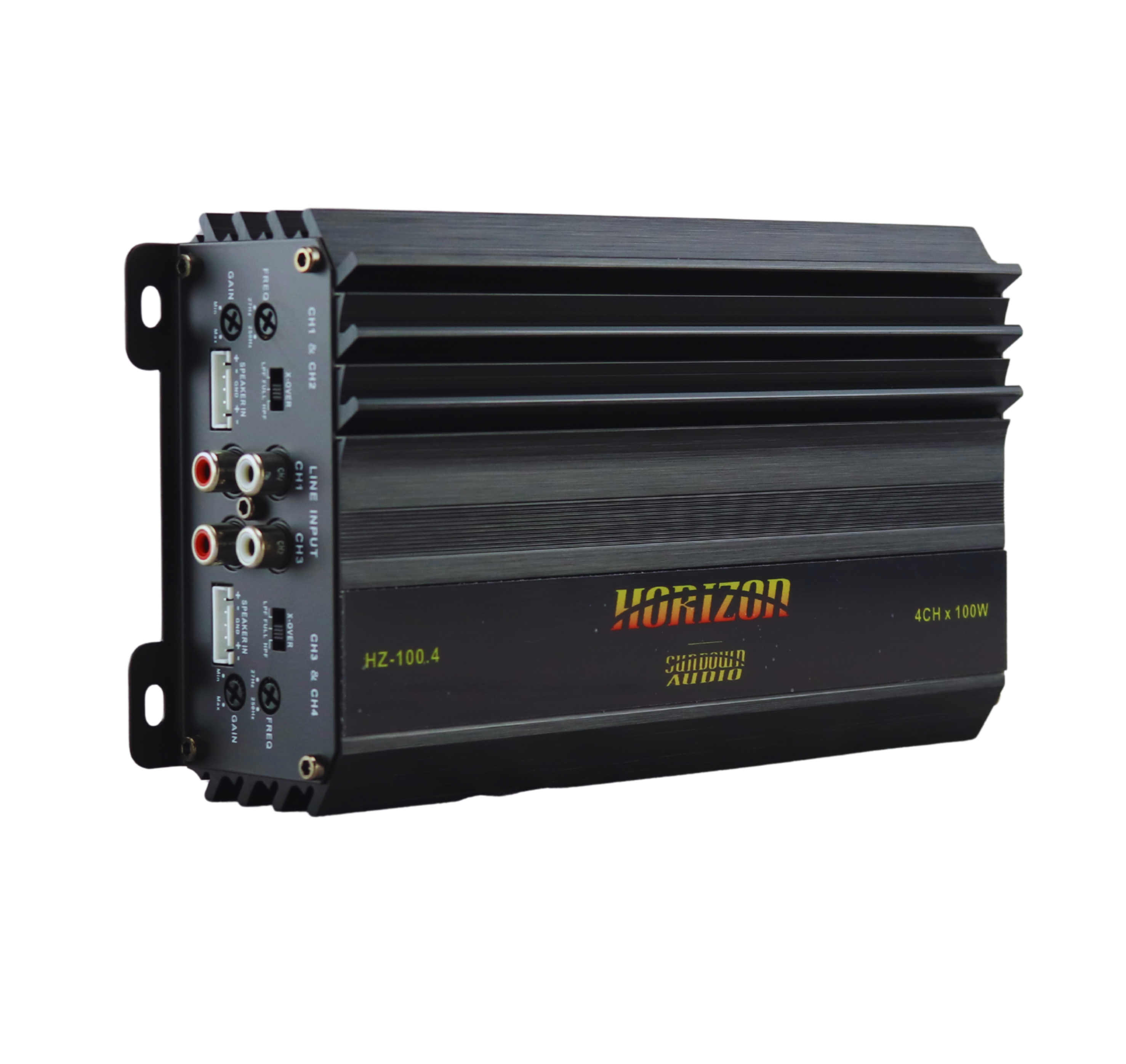

Sundown Audio Horizon HZ-100.4 4-Channel Amplifier 100W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20on%20all%20four%20channels%0A%0AInputs%20%E2%80%94%20High-level%20inputs%20with%20DC%20Sense%20fo...
){kind=link}
- RMS Power — 100W x4 @ 4Ω / 170W x4 @ 2Ω
- Class — 4-channel full-range amplifier
- Crossovers — Adjustable HPF and LPF (27Hz–250Hz) on all four channels
- Inputs — High-level inputs with DC Sense for factory integration
- Protection — Sundown 4-way protection
This Listing Includes: (1) Sundown Audio Horizon HZ-100.4 4-Channel Amplifier
The Horizon HZ-100.4 delivers 100 watts RMS per channel at 4 ohms, or 170W x4 at 2 ohms, for powering component speakers, pro audio drivers, or full-range coaxials. Fully adjustable HPF and LPF crossovers (27Hz–250Hz) let you run active or passive setups, bridge channels, or mix configurations. High-level inputs, DC Sense, and 4-way protection make it at home in factory integration and custom builds alike. Input sensitivity is up to 6V with a 95dB signal-to-noise ratio and a 60A fuse rating. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 100W x4 @ 4Ω, 170W x4 @ 2Ω
- Adjustable high-pass and low-pass filters on all channels
- Bridgeable for active or passive setups
- High-level inputs and DC Sense turn-on
- Sundown 4-way protection circuit
Specifications
| RMS Power (4Ω) | 100W x4 |
| RMS Power (2Ω) | 170W x4 |
| High Pass Filter (CH1-4) | 27Hz – 250Hz |
| Low Pass Filter (CH1-4) | 27Hz – 250Hz |
| Input Sensitivity | Up to 6V |
| Signal-to-Noise Ratio | 95dB |
| Fuse Rating | 60A |
| Dimensions | 8.63" x 4.63" x 2.2" |
| Weight | 2.93 lbs (1.33 kg) |
