Pride Audio Quattro 4-Channel Amplifier 100W RMS x4
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- RMS Power at 2 Ohm — 100W x 4 channels
- RMS Power at 4 Ohm — 75W x 4 channels
- Bridged Power at 4 Ohm — 200W x 2
- Frequency Response — 15 Hz – 30 kHz
- Class — 4-channel Class AB amplifier with advanced filters
This Listing Includes: (1) Quattro 4-Channel Amplifier 100W RMS x4

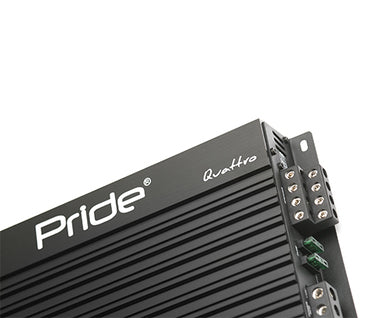

The Pride Quattro is a 4-channel Class AB amplifier with advanced frequency filters, well suited to running powerful speakers, a subwoofer, or a 2- or 3-way system. Each of its four channels produces 75W at 4 Ohm or 100W at 2 Ohm at 14.4V with 1% distortion, and the channels can be bridged for 200W into a 4 Ohm load. It covers a 15 Hz – 30 kHz range with high- and low-pass filters, a 100 dB signal-to-noise ratio, a damping factor over 200, and a 60A fuse rating (2 x 30A). In stock and shipping free from JS Ultimate Sounds — your authorized Pride Audio dealer.
Features
- 4-channel Class AB design with advanced filters
- 100W x 4 at 2 Ohm, 75W x 4 at 4 Ohm
- 200W x 2 bridged into 4 Ohm
- High-pass (20 Hz – 8 kHz) and low-pass (50 Hz – 8 kHz) filters
- 100 dB signal-to-noise ratio, damping factor over 200
Specifications
| Brand | Pride Audio |
| Model / SKU | Q.100 |
| Class | AB |
| Channels | 4 |
| RMS Power at 2 Ohm | 100W x 4 |
| RMS Power at 4 Ohm | 75W x 4 |
| Bridged Power at 4 Ohm | 200W x 2 |
| Frequency Response | 15 Hz – 30 kHz |
| Signal-to-Noise | 100 dB |
| Efficiency @ 4 Ohm | Over 65% |
| Damping Factor | > 200 |
| Input Sensitivity | 8V – 0.3V |
| High-Pass Filter | 20 Hz – 8 kHz |
| Low-Pass Filter | 50 Hz – 8 kHz |
| Fuse Rating | 60A (2 x 30A) |
| Voltage | 14.4V |
| Distortion | 1% |
| Dimensions (L x H x W) | 290 mm x 53 mm x 220 mm |
| Color | Black |
