Orion XTRPRO802D XTR Pro Series 8" 1,000W RMS Subwoofer Dual 2 Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20through%20a%20dual%202-ohm%20voice%20coil.%20Built%20for%20high-SPL%20enthusiasts%20who%20...
){kind=link}

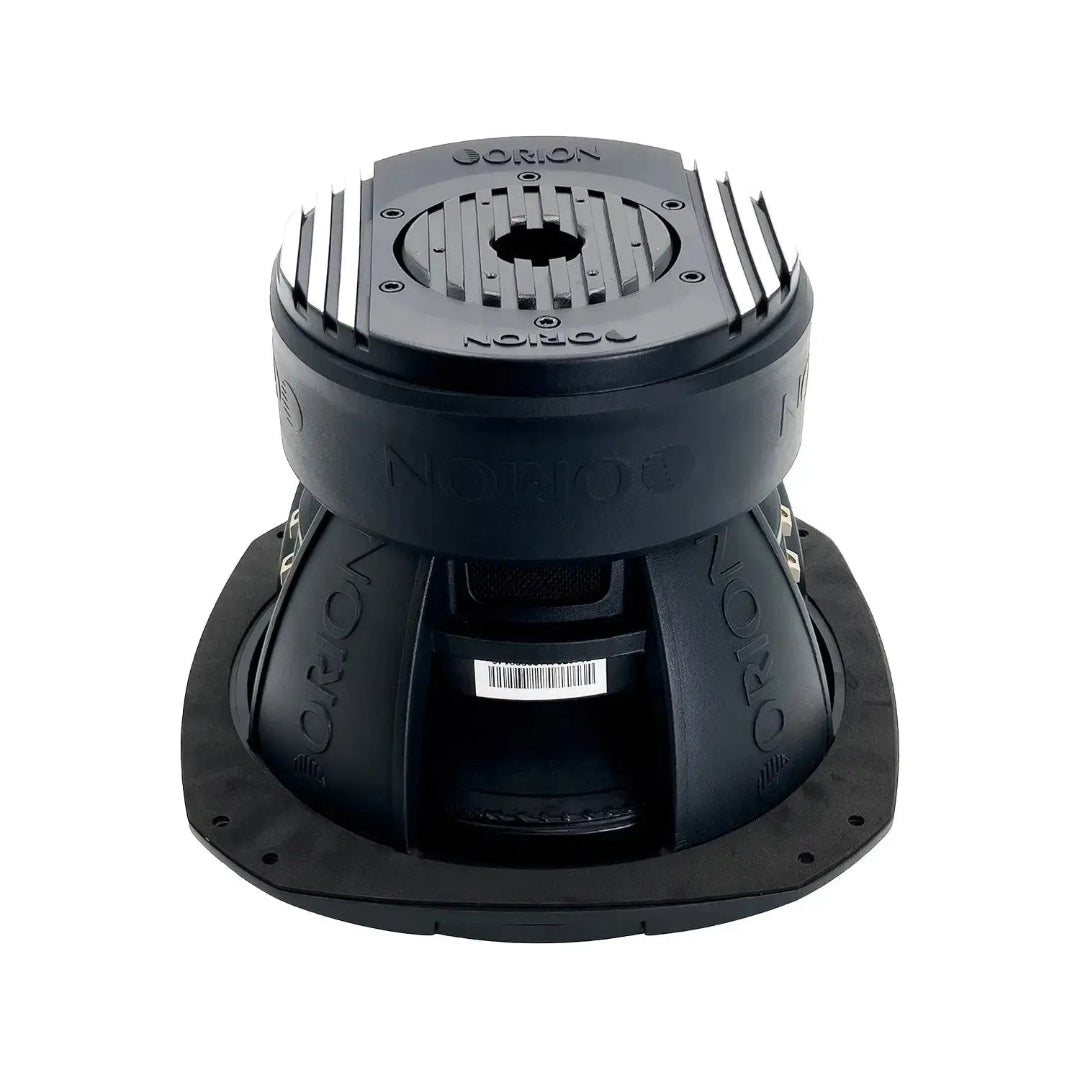

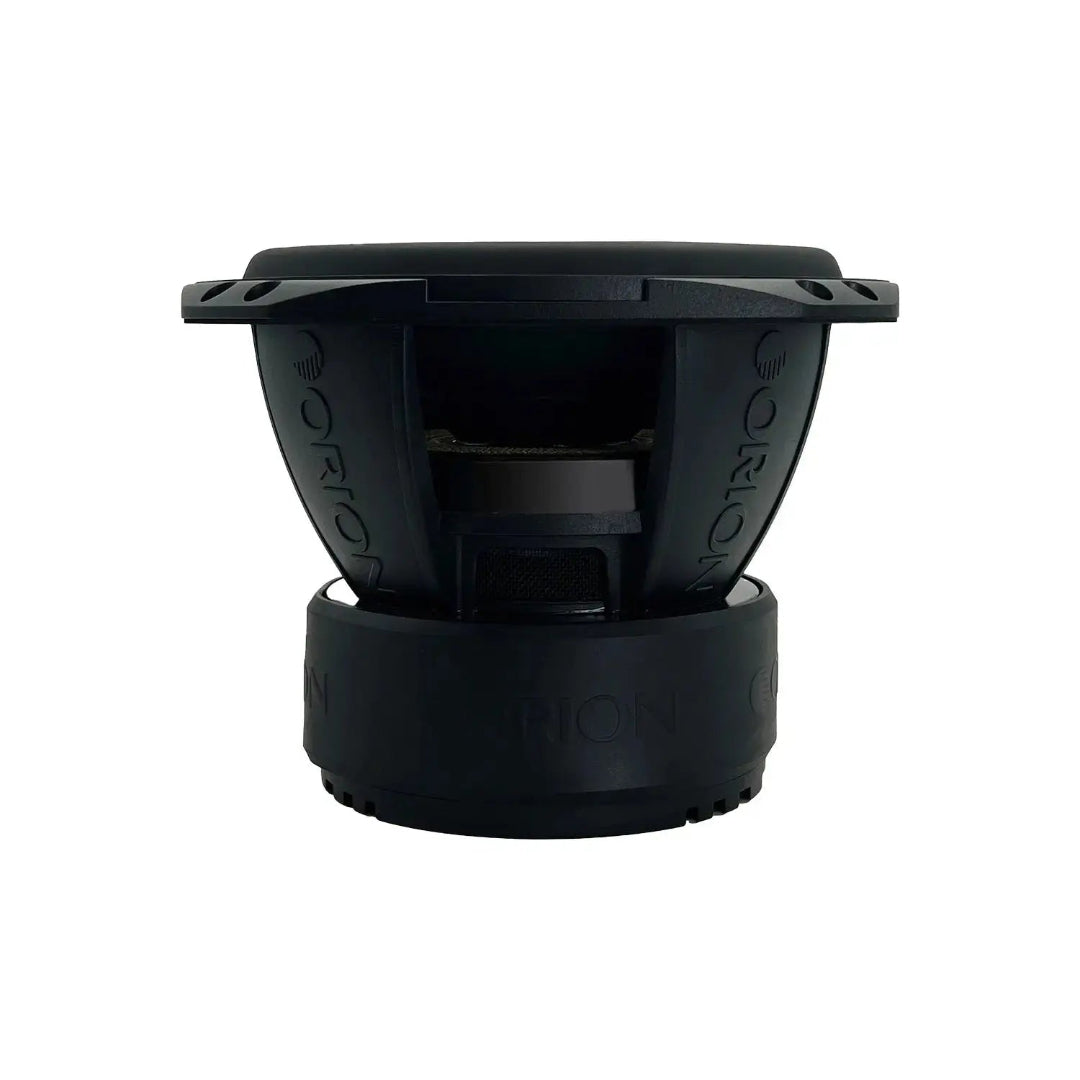

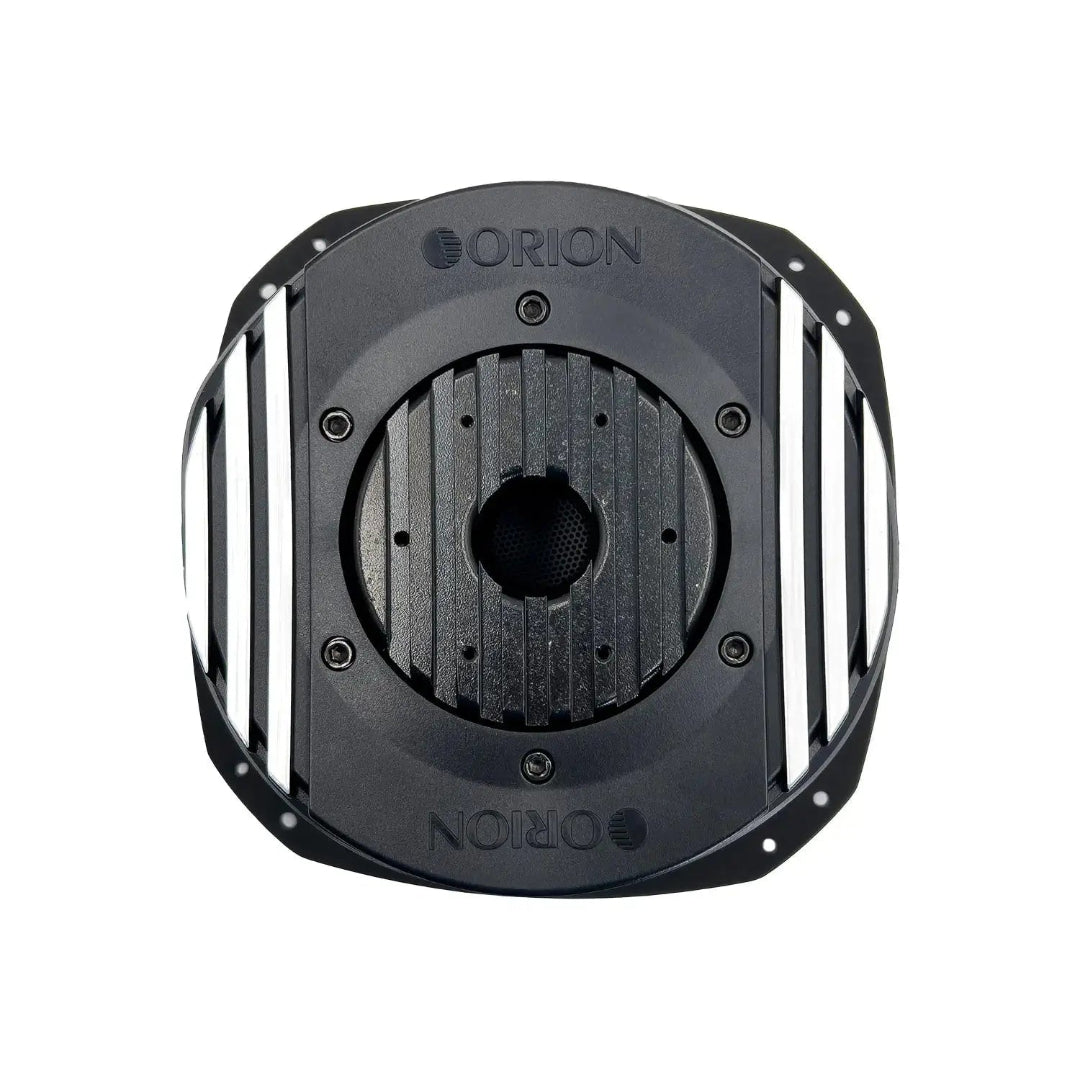

The Orion XTRPRO802D packs competition-grade output into a compact 8-inch footprint, handling 1,000 watts RMS (4,000 watts peak) through a dual 2-ohm voice coil. Built for high-SPL enthusiasts who want serious low end from a tight enclosure, it pairs a 2.5-inch aluminum-wound coil and a heavy 125-ounce ferrite motor with a rigid cast-aluminum frame for hard-hitting, controlled bass. The dual 2-ohm coils give you flexible wiring options to match single- or multi-woofer setups to your amplifier.
Key Features
- 1,000W RMS / 4,000W peak power handling for demanding daily and competition use
- Dual 2-ohm voice coils for versatile wiring configurations
- 2.5-inch aluminum-wound voice coil on a Kapton former for high-temperature durability
- 125-ounce ferrite magnet motor structure for strong cone control
- UV-coated reinforced paper cone with a durable Santoprene surround
- Dual flat Conex spiders with loop-stitched tinsel leads for reliable high-excursion movement
- Polypropylene dustcap and a proprietary cast-aluminum frame for rigidity and cooling
- Compact 8-inch chassis with a 6.96-inch mounting depth for space-limited installs
Specifications
| Specification | Value |
|---|---|
| Size | 8 inches |
| RMS Power | 1,000 Watts |
| Peak Power | 4,000 Watts |
| Voice Coil Configuration | Dual 2-ohm |
| Voice Coil Diameter | 2.5 inches |
| Voice Coil Material | Aluminum wound on Kapton former |
| Sensitivity | 85.23 dB |
| Frequency Response | 40 Hz - 150 Hz |
| Cone | UV-coated reinforced paper |
| Surround | Santoprene |
| Spider | Dual flat Conex spiders with loop-stitched tinsel leads |
| Dustcap | Polypropylene |
| Frame | Proprietary cast-aluminum |
| Magnet | 125 oz ferrite |
| Mounting Depth | 176.8 mm / 6.96 in |
| Cutout Diameter | 202.9 mm / 7.99 in |
| Displacement | 0.06 cu. ft. |
Install tip: To hit its rated output, plan a properly sized sealed or ported enclosure built to the woofer's displacement and design goals, and wire the dual 2-ohm coils to a final impedance your amplifier is rated to drive.
