DS18 EXL-X8.4D 8" Car Subwoofer 1200 Watts 4-Ohm DVC
EXL X (Extremely loud) competition grade subwoofers features DS18 private red aluminum basket, fiber glass dust cap, 2.5" voice coils and 1200 watts of power, with the combination of modern technologies and unique engineering solutions this subwoofer is the evidence of DS18 technological and methodical dominance, EXL X is the best choice to enter the bass head world in the lanes or to play daily music.
Highlights
- Big bass in a small package. Small sized sub with full size ferrite magnet and lots of Xmax.
- High strength foam surround holding a durable pressed cone with fiberglass
- DS18 dustpan will not only give you DS18 flare but is strong enough to force great bass out even with a small cone area size.
- Works great in ported and sealed boxes in all vehicles shapes and sizes!
Technical Details
%20competition%20grade%20subwoofers%20features%20DS18%20private%20red%20aluminum%20basket,%20fiber%20glass%20dust%20cap,%202.5%22%20voice%20coils%20and%201200...
){kind=link}
| Model: | EXL-X8.4D |
| Type: | Subwoofer |
| Size: | 8" |
| RMS Power: | 600W |
| MAX Power: | 1200W |
| Impedance: | 4 + 4 Ohms |
| Voice Coil Size: | 2.5" |
| Magnet: | Ferrite |
| Magnet Weight: | 130 oz |
| Frequency Response: | 38Hz - 1.0KHz |
| Materials | |
| Frame: | DS18 Private Red Aluminum |
| Surround: | Foam Edge |
| Dust Cap: | Glass Fiber |
| Voice Coil Former Material: | Black Aluminum |

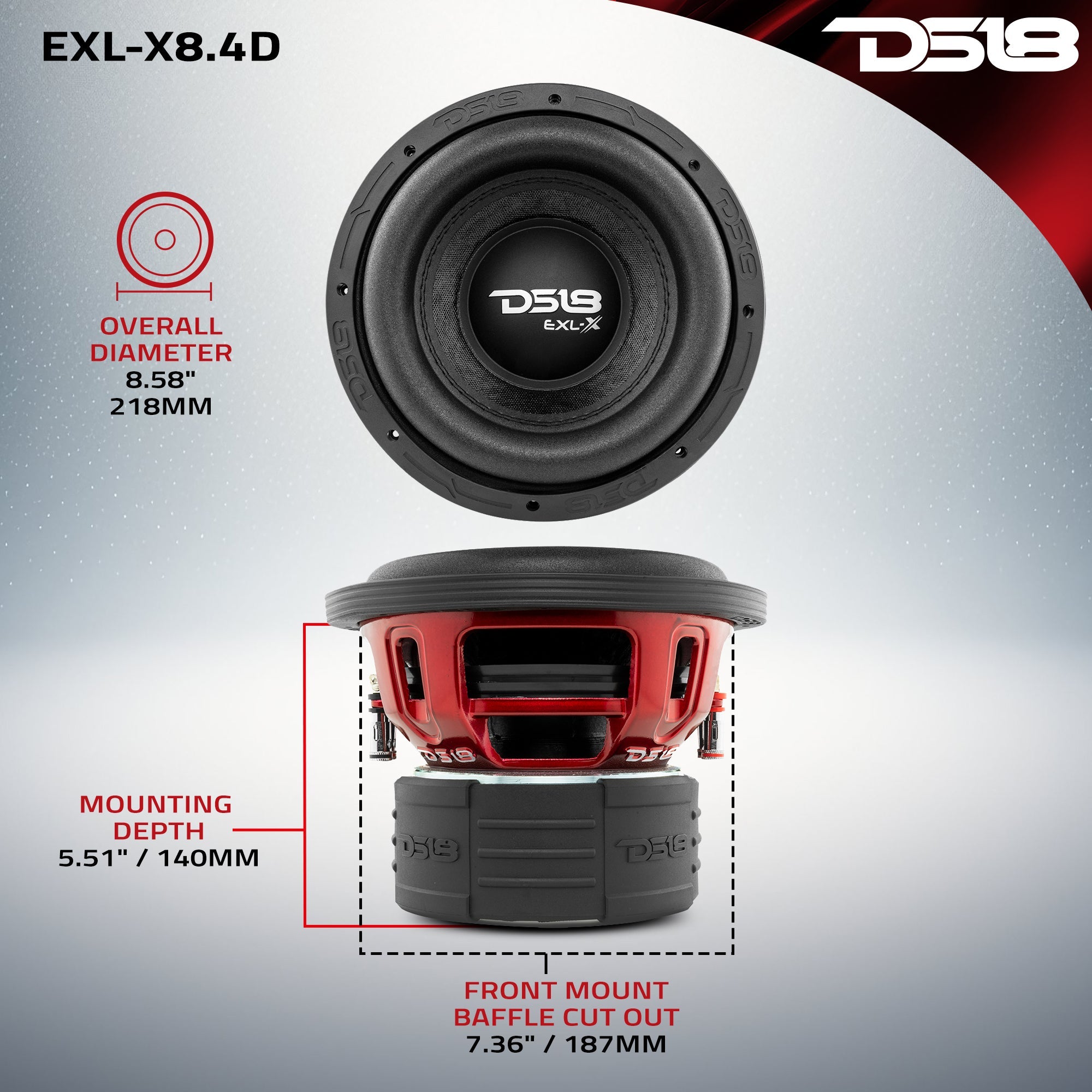

| Measurements | |
| Mounting Cut-Out: | 7.36" |
| Mounting Depth: | 5.51" |
| Overall Diameter: | 8.58" |
| Optimum Sealed ft3 | 0.417 |
| Optimum Ported ft3 | 1.0 |
| Port Tune | 43Hz |
