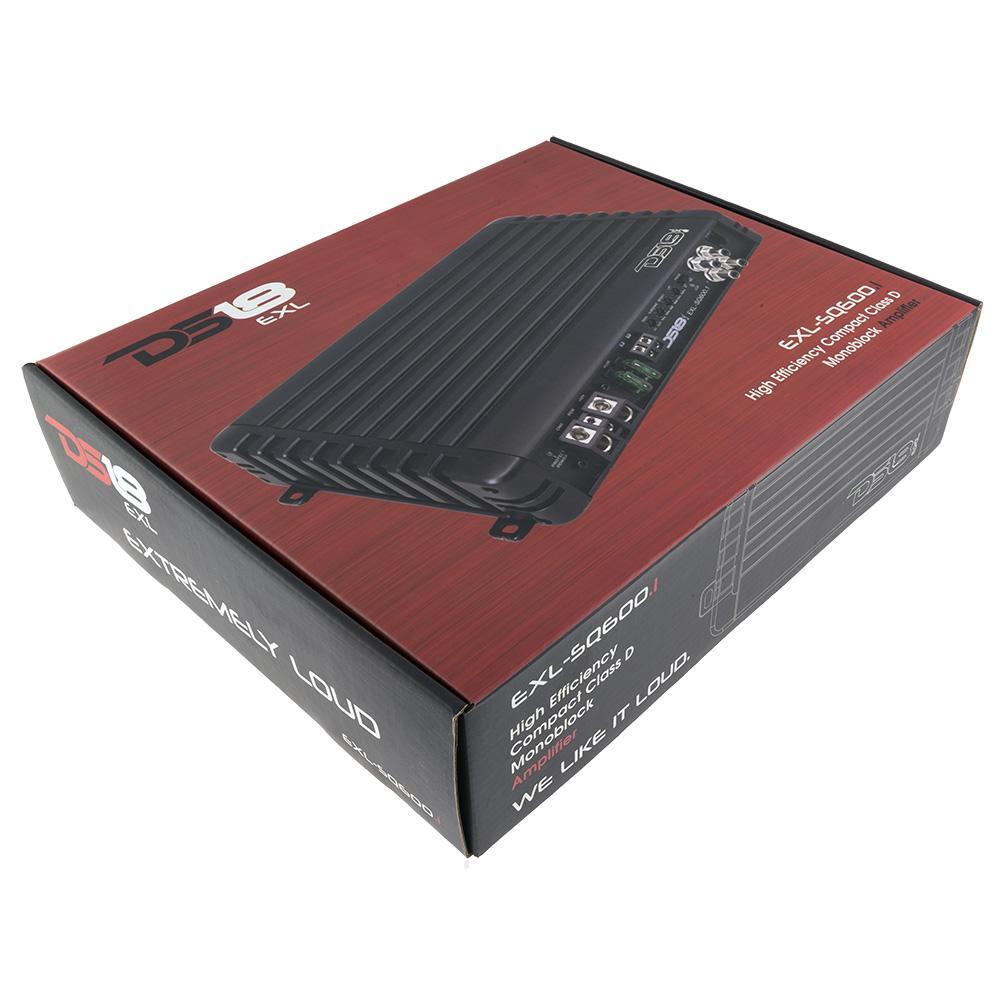

DS18 EXL Sound Quality Class D Monoblock Car Amplifier 1200 Watts
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
|
The EXL-SQ line of amps are DS18’s highest end sound quality amps that are available today. Customers demanded a dynamic product that has extremely high sound quality and come in a multitude of power options to easier fit the ever-growing power demands of the audio enthusiast’s needs. These amps are the epitome of sound quality and audio precision. These amps come in a multitude of sizes that include 2 channel, 4 channel, and monoblocks of all sizes from 160w to 3000w RMS! All these amps have built in protection and heatsink boasts a sleek design. The amps have sets of crossovers to further tune your system to perfection while the tiffany style RCA jacks receive the highest quality signal. |
Specifications
Download EXL-SQ600.1D ProductManual
| Model: | EXL-SQ600.1D |
| Class: | D |
| Number of Channels: | 1 |
| Frequency Response: | 20Hz - 500Hz |
| Max Power: | 1200W |
| 1 Ohm RMS Power (14.4V) Per Channel: | 600W |
| 2 Ohm RMS Power (14.4V) Per Channel: | 400W |
| 4 Ohm RMS Power (14.4V) Per Channel: | 250W |
| Speaker Impedance Range: | 1-4 Ohms |
| Input Sensitivity: | 0.2-5V |
| Low Pass Filter: | 50Hz - 250Hz |
| Fuse Size: | 2 x 30A |
| Signal-to-Noise Ratio: | >90dB |
| THD: | 0.07% |
| Bass Boost: | 0dB - 18dB |
| Product Dimensions (L x W x H): | 264 x 170 x 51mm |
