DS18 DX 6.5" 2- Way Component Speaker System With Kevlar Cone 230 Watts Rms 4-Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
DS18 DX2 Kevlar 6.5” 2 Way Premium Quality Car Component Speaker System 460 Watts 4-Ohm

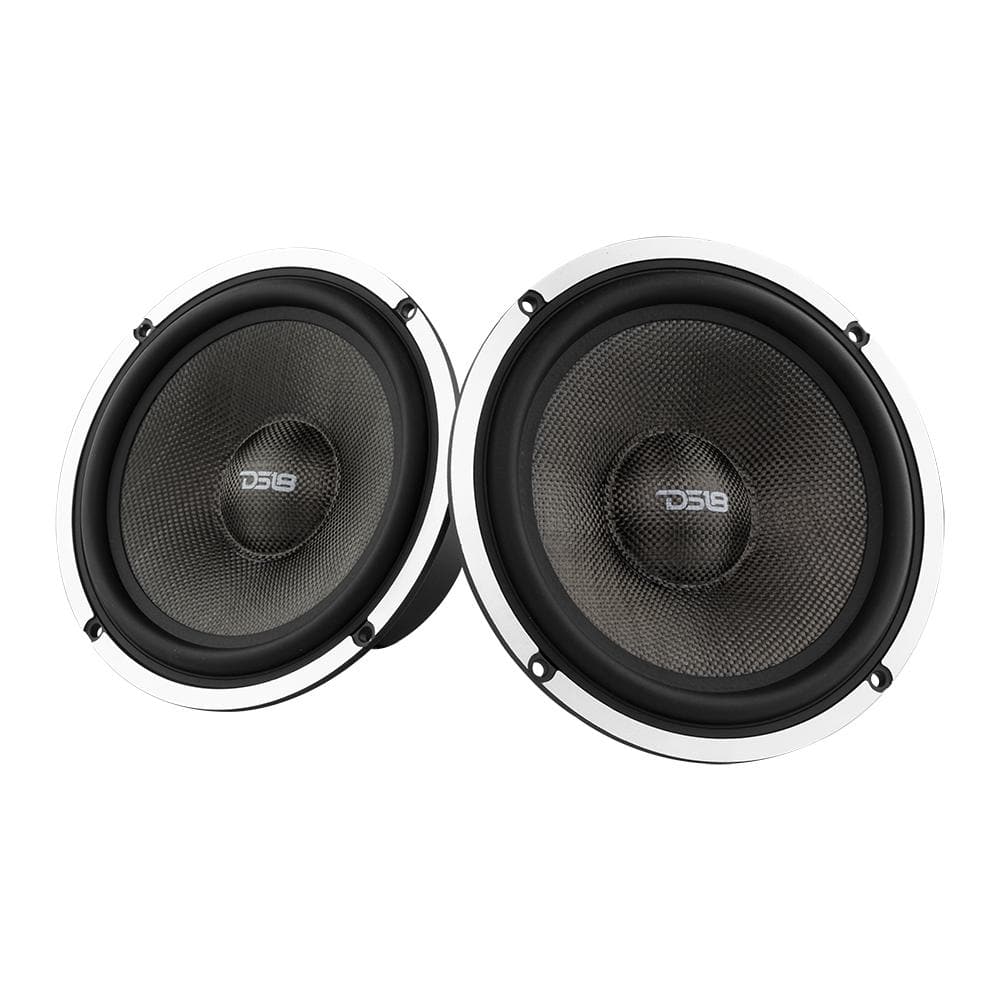

The DX2 set comes with two DX2W 6.5" woofers, as well as two DX2T 1.18" tweeters, and two DX2C passive 2-way crossovers.
The DX2W woofer is a rigid carbon fiber cone with a machined aluminum basket that emits a clear, low end signal at 50Hz and up to 12KHz with a 4 ohms impedance. The DX2T neodymium tweeter, also at 4 ohms, fills the mid-high to high end frequencies adding the right amount of brightness and sizzle to your favorite music.
Also included are the DX2C 2-way passive crossovers which accurately separates wattage and frequencies for your component set, ensuring long lasting and great sounding experiences. The TW ATT options gives you a selection of 0dB, 2dB, and 4dB loudness options at 12dB/oct.
The DS18 DX2 is a quality speaker system that offers exceptional value.
Highlights

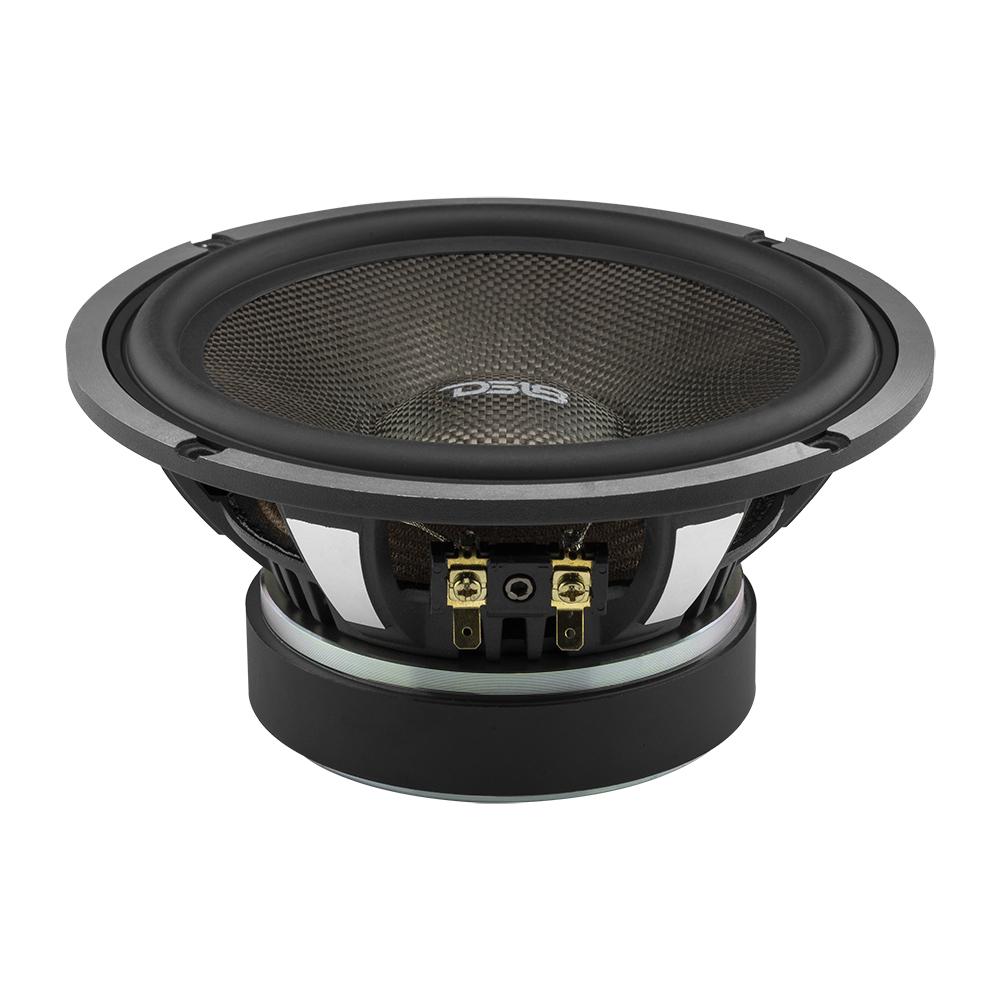

- DX2W 6.5" woofer which handles 100w AES. Featuring a carbon fiber cone, ferrite magnet, machined aluminum basket, and high quality terminals.

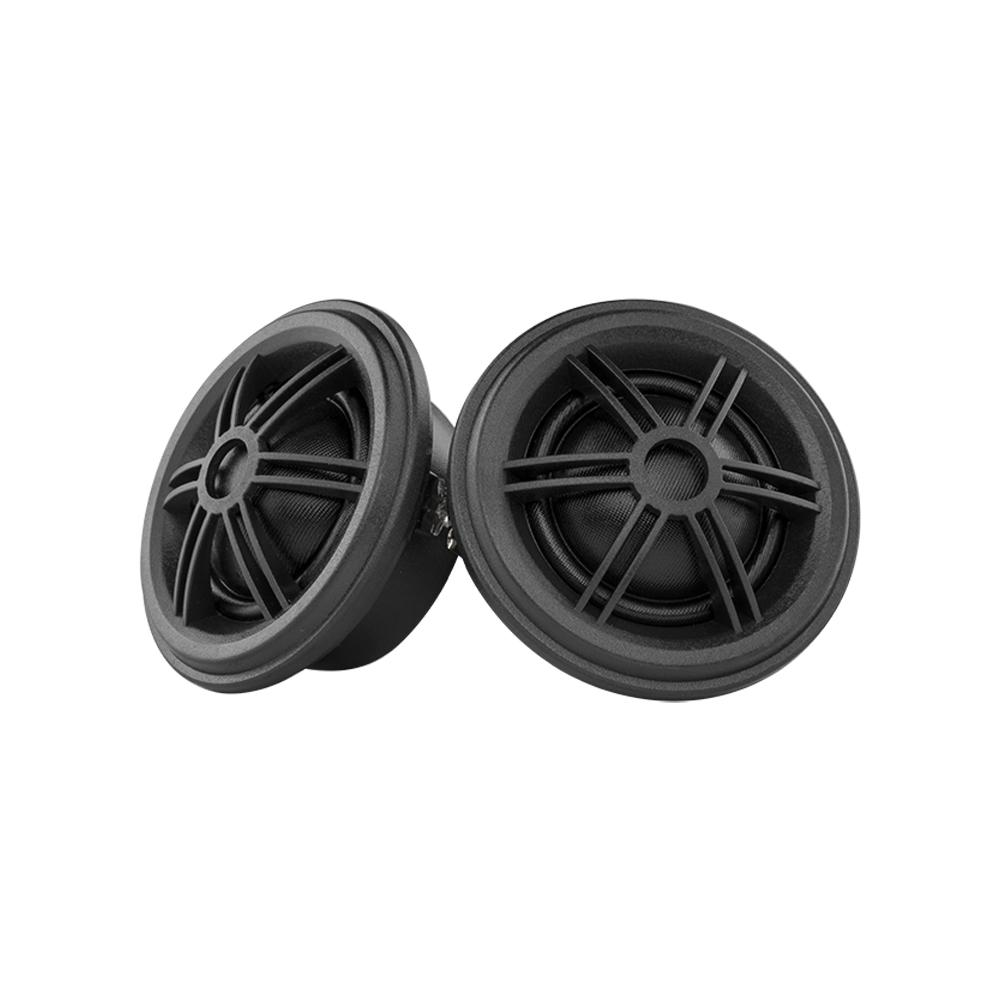

- DX2T 1.18" high fidelity neodymium tweeter that is easy to mount and will complete your HQ full range experience.

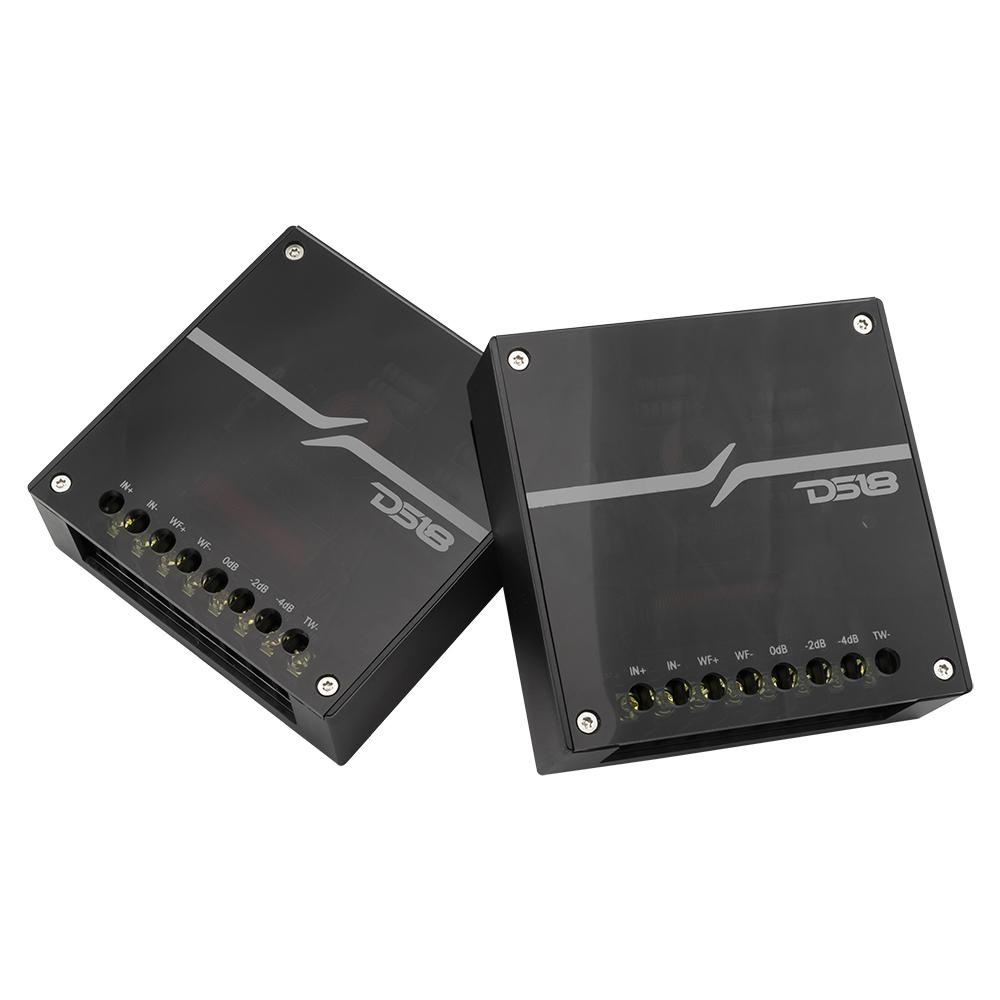

- DX2C 2-way passive crossover with multiple DB selections so you can be sure to get distortion free HQ sound accurately routed to the proper speaker with ease.
Technical Details
|
WOOFER |
|
| Nominal Diameter | 6.5" |
| Nominal Impedance | 4 Ohms |
| Peak Power Handling | 400W |
| Program Power Handling | 200W |
| AES Power Handling | 100W |
| Sensitivity (1w/1m) | 89 dB |
| Frequency Response | 50Hz - 12KHz |
| Recommended HI Pass Crossover | 45 Hz |
| MOTOR | |
| Voice Coil Diameter | 1.2"/30.5 mm |
| Voice Coil Former Material | TIL |
| Winding Material | SV |
| Cone Material | Carbon Fiber |
| Surround Materia | Rubber Edge |
| Basket Materia | Aluminum |
| Magnet Materia | Ferrite |
| Magnet Weight | 20.2 oz |

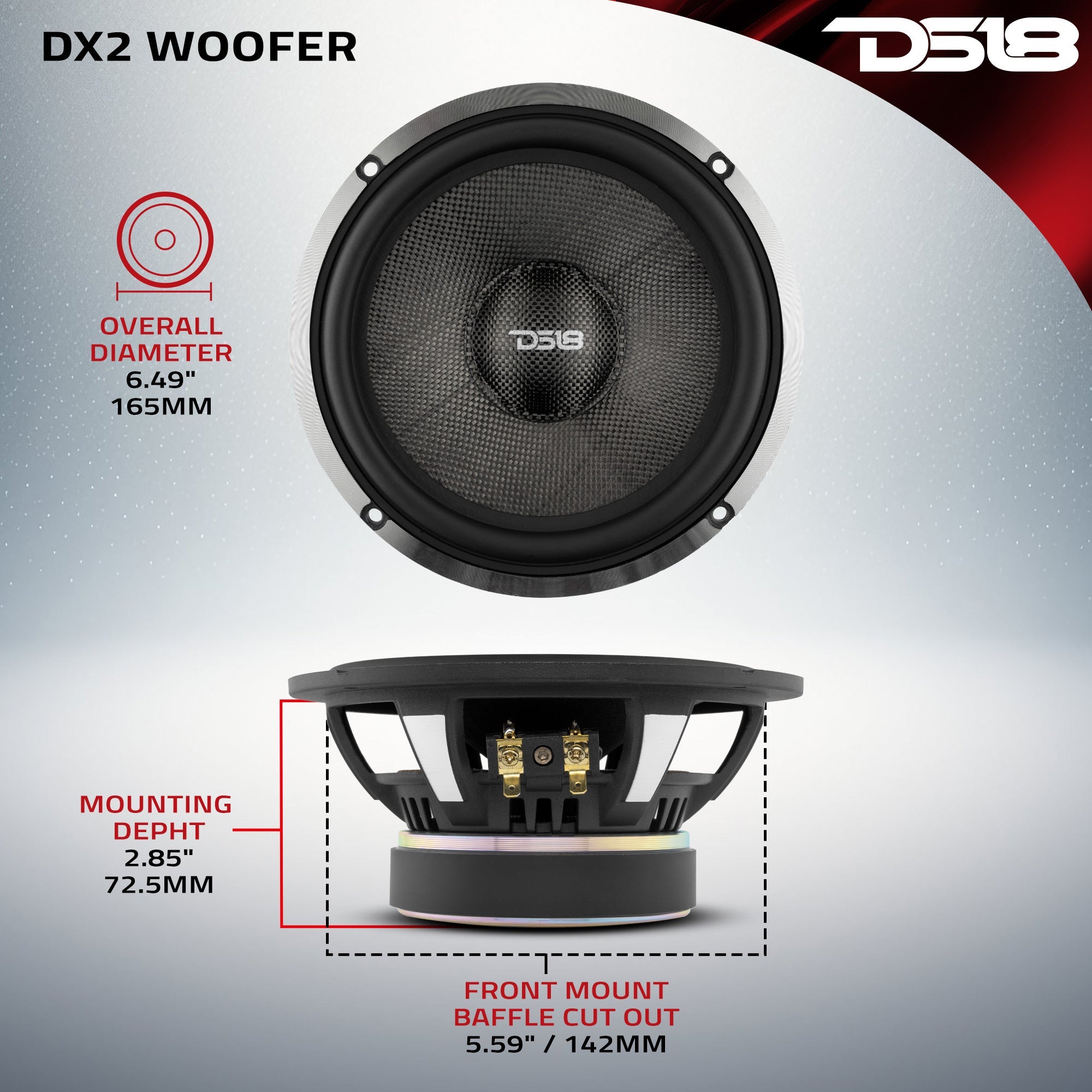

| Measurements | |
| Overall Diameter | 6.49"/165 mm |
| Front Mount Baffle Cutout | 5.59"/142 mm |
| Mounting Depth | 2.85"/72.5 mm |
| Overall Depth | 3.05"/77.5mm |
| Motor Diameter | 3.9"/100mm |
|
TWEETER |
|
| Nominal Diameter | 1.18" |
| Nominal Impedance | 4 ohms |
| Peak Power Handling | 60 Watts |
| Program Power Handling | 30 Watts |
| AES Power Handling | 15 Watts |
| Sensitivity (1w/1m) | 90dB |
| Frequency Response | 800Hz - 20Khz |
| Recommended HI Pass Crossover | 3.8 KHz |
| MOTOR | |
| Voice Coil Diameter | 0.98" |
| Voice Coil Former Material | ASV |
| Winding Material | CCAW |
| Diaphragm Material | Silk |
| Magnet Material | Neodymium |
| Magnet Weight | 14 oz |
| Body Material | ABS |
| MEASUREMENT | |
| Overall Diameter | 2" / 51mm |
| Overall Depth | 1.1"/28.1 mm |
| Front Mount Baffle Cutout | 1.85" x 47 mm |
| Mounting Depth | 0.7"/ 18 mm |
|
CROSSOVER |
|
| Passive Crossover Ways | 2 Ways |
| Frequency Crossover | 3.2 KHz |
| Power Handling | 300 Watts |
| Cut Off Slope | 12dB /Oct |
| Tweeter Attenuation | 4dB |
| FEATURES | |
| Capacitor Type | Metac Film |
| Coil Type | Inductor |
| Terminals Type | Screw Terminal |
| Housing Material | ABS |
| Adjustments | Tw Att by Terminal |
| Extra Features | Spk Phase Switch |
| MEASUREMENT | |
| Overall Length | 4.3"/110 mm |
| Overall Depth | 4.3"/110 mm |
| Overall Height | 1.37"/35 mm |
