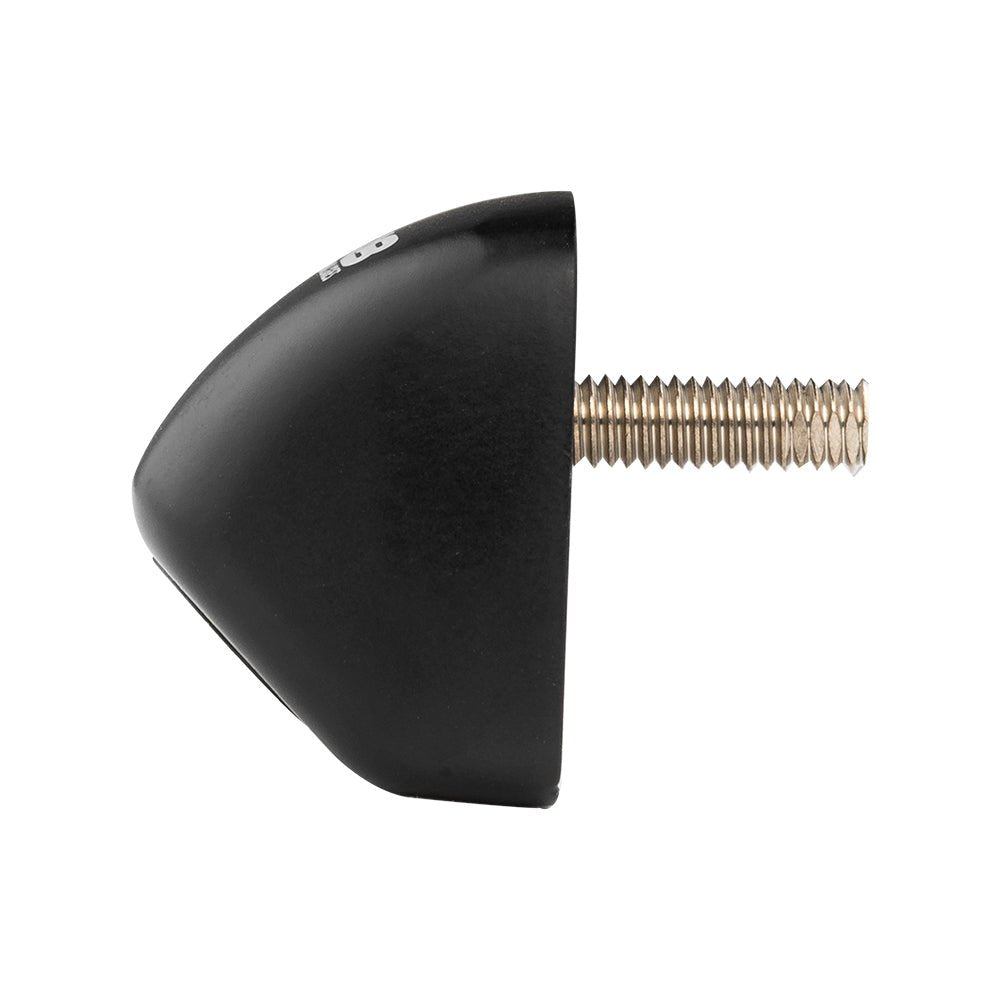

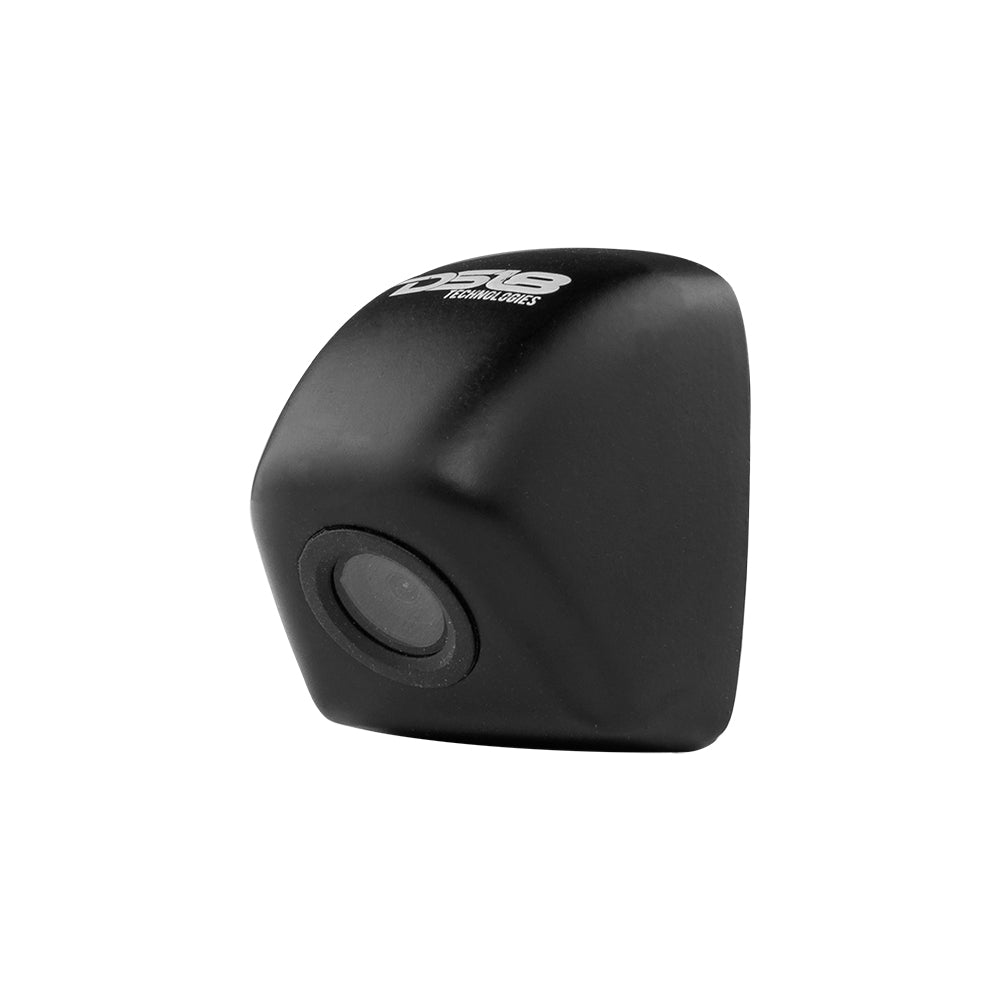

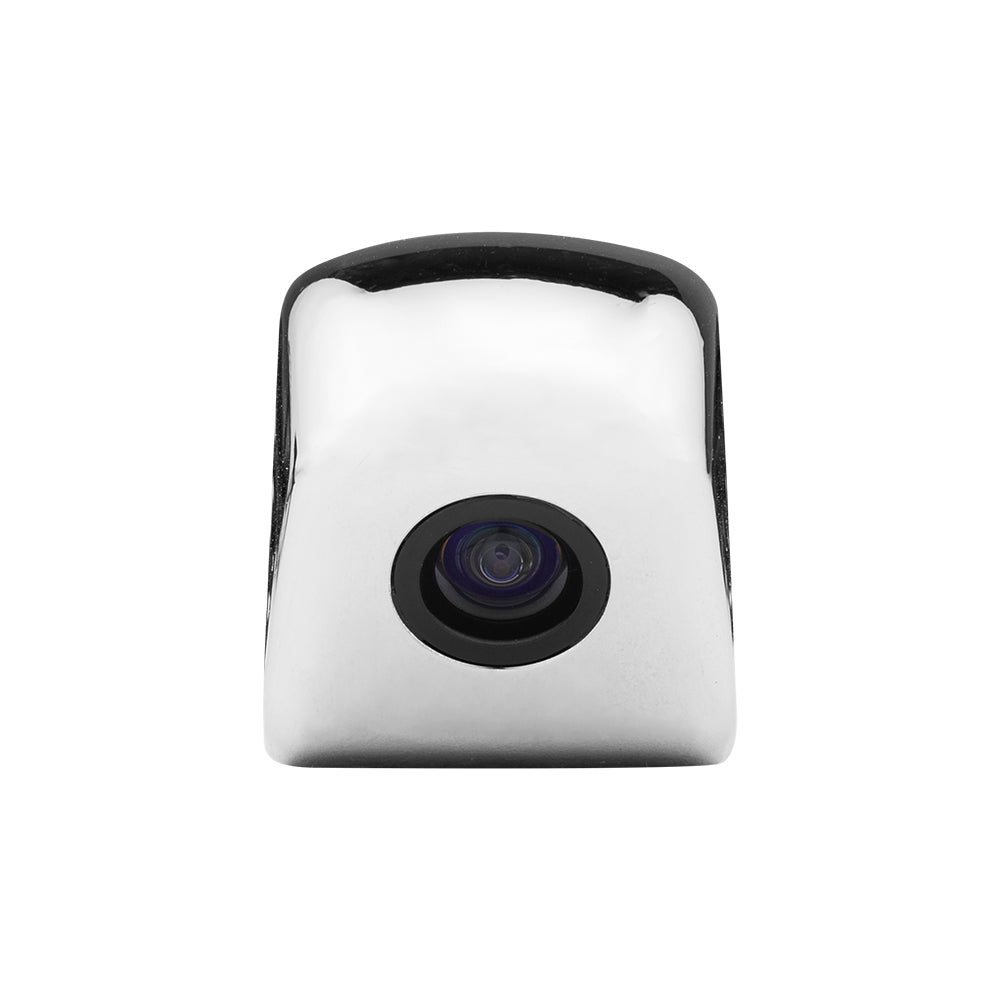

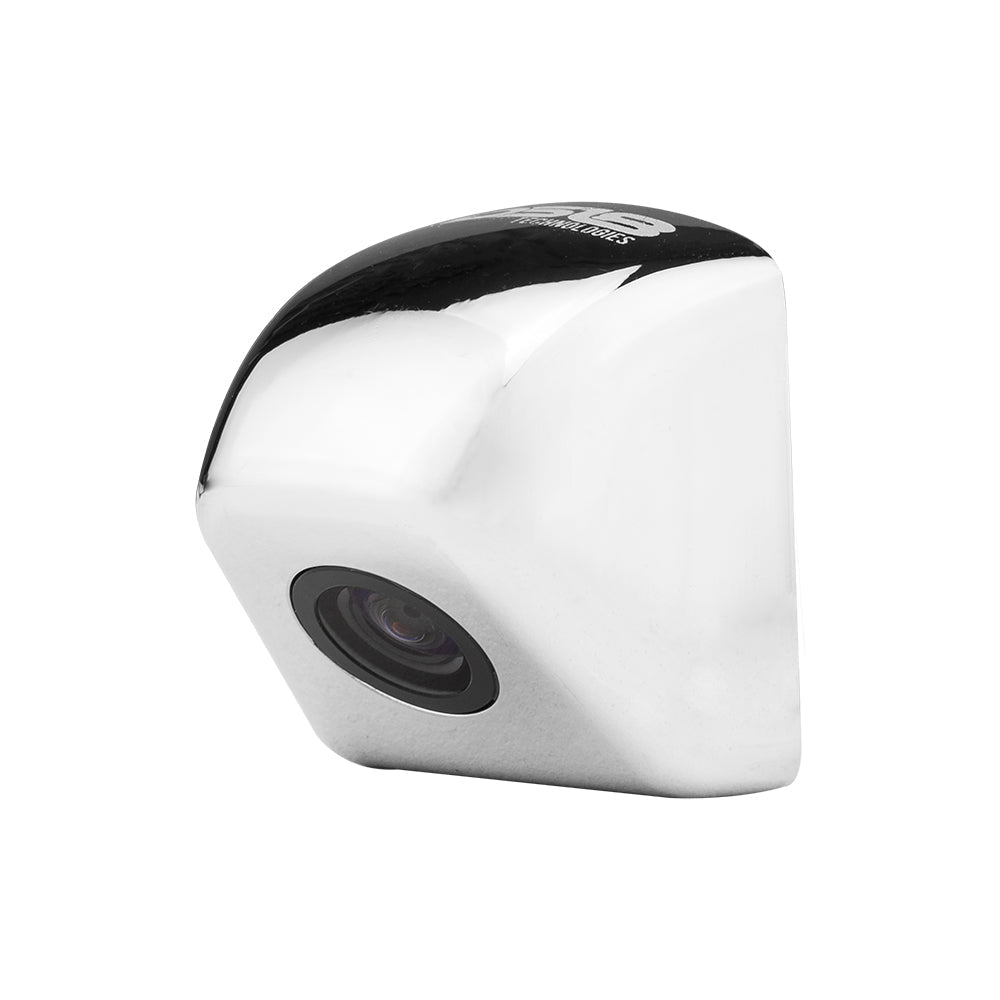

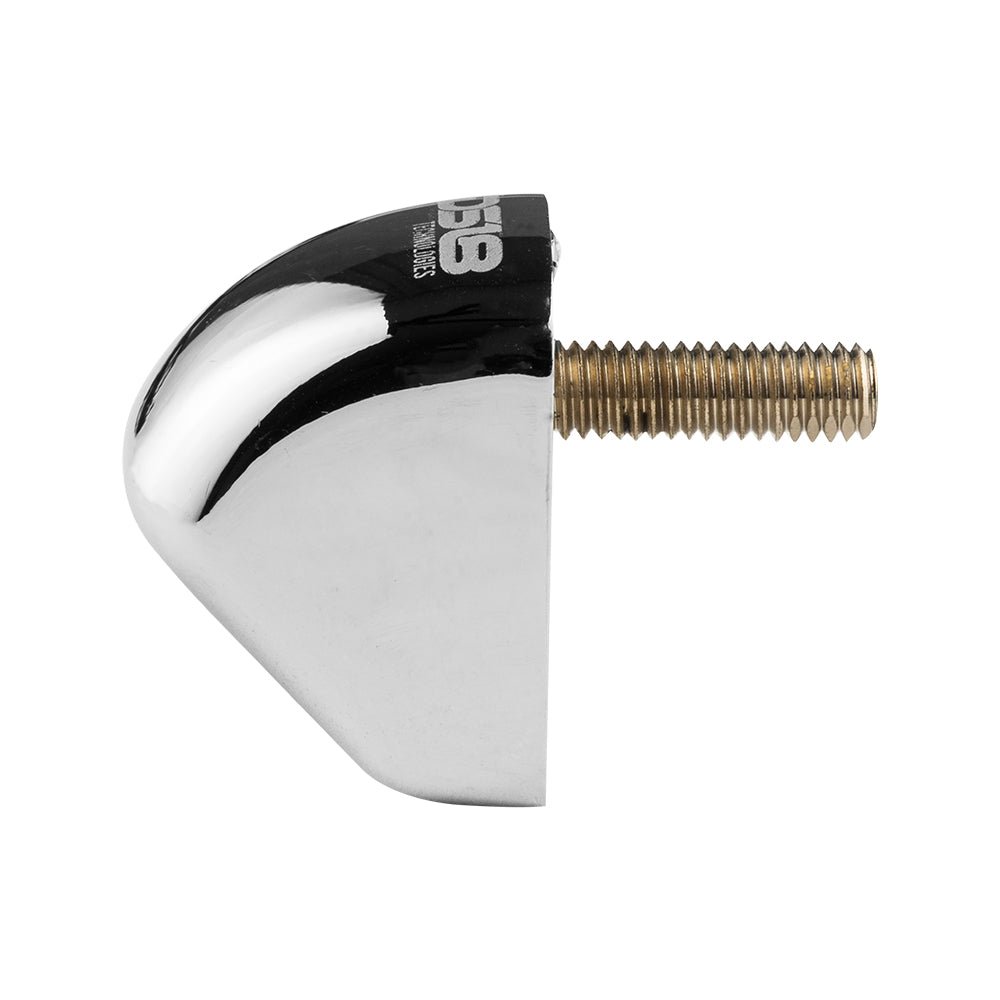

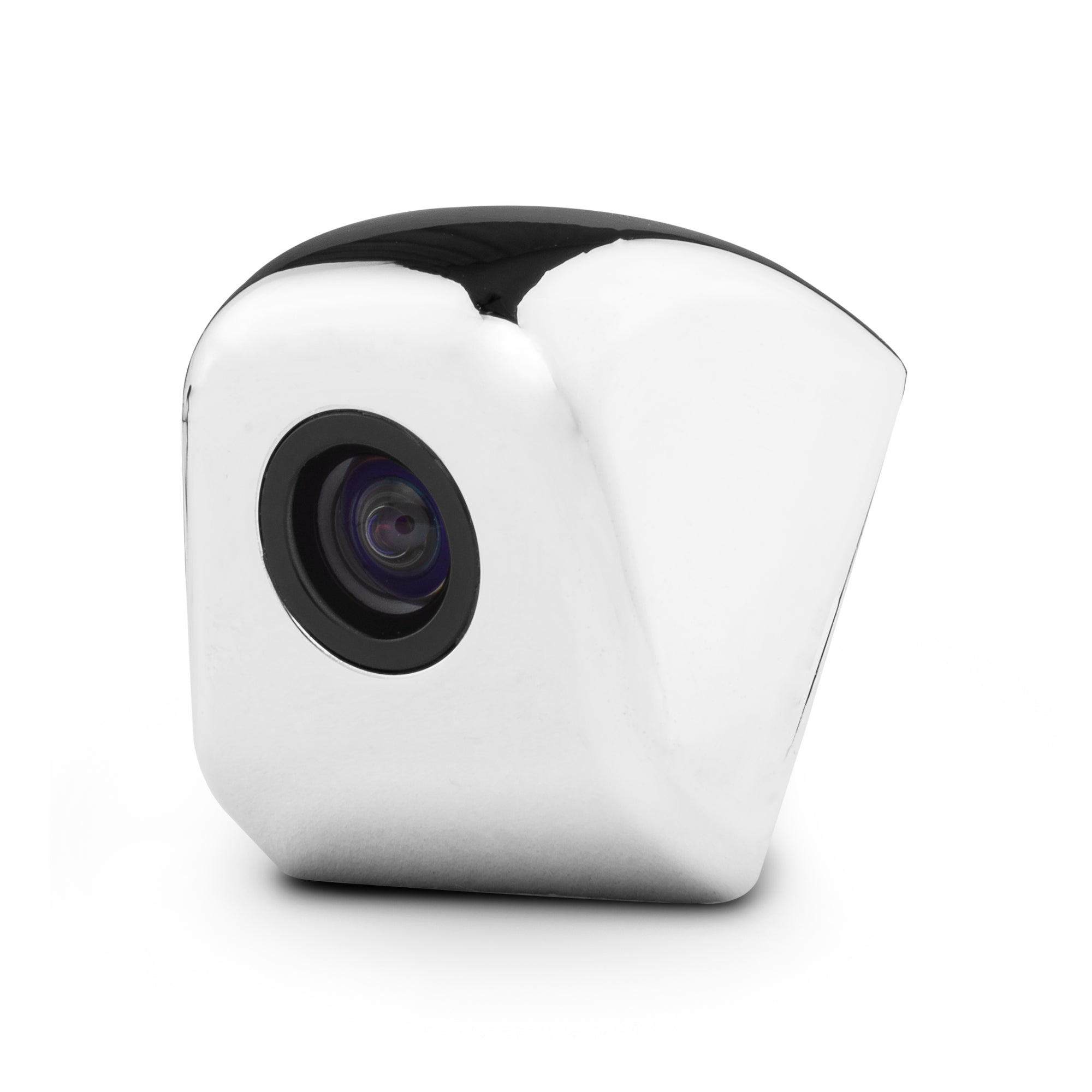

DS18 RCD20 Reverse Camera with Night Vision
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
drivers ass
Technical Details
| With customer safety in mind, DS18 cameras and reverse sensors are manufactured with the most up-to-date parts in the industry. Engineered and designed in the United States our cameras have crystal clear night vision and are tested to work in the harshest environment. |
Technical Details
| Operation Temperature: | -10°- + 46°C (RH95% Max) |
| TV System: | NTSC |
| Distance Scale Line: | 6-9M |
| Effective Pixels: | NTSC: 648 x 488 pixels |
| Sensing Area: | 5.55µm x 5.55µm |
| Horizontal Resolution: | 420 TV Lines |
| Dimension: | 24 x 25 x 21.6mm |
| Lens Angle: | 135° |
| Minimum Illumination: | 1.5 lux /F1.2 |
| Electronic Shutter Time: | 1/60th - 1/15000th seconds |
| S/N ratio: | >48 |
| Video Output: | CCIR/EIA(PAL/NTSC) Standard video Signal 1.0 Vp-p, 75 ohm |
| Sync System: | Internal Synchronization |
| Power Supply: | 12V |
Authorized DS18 dealer at JS Ultimate Sounds. Free shipping on orders $99+.
DS18 RCD20 Reverse Camera with Night Vision
Sale price$24.95
