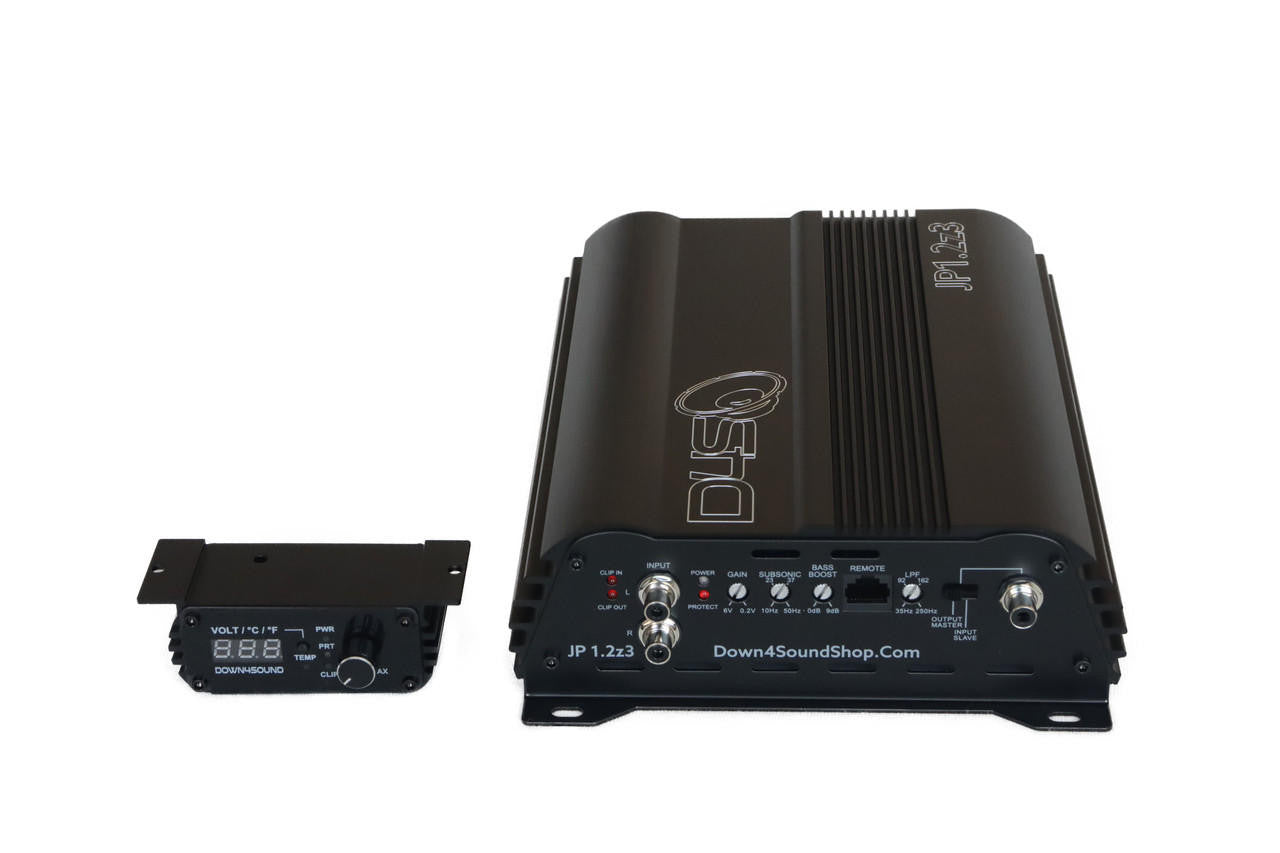

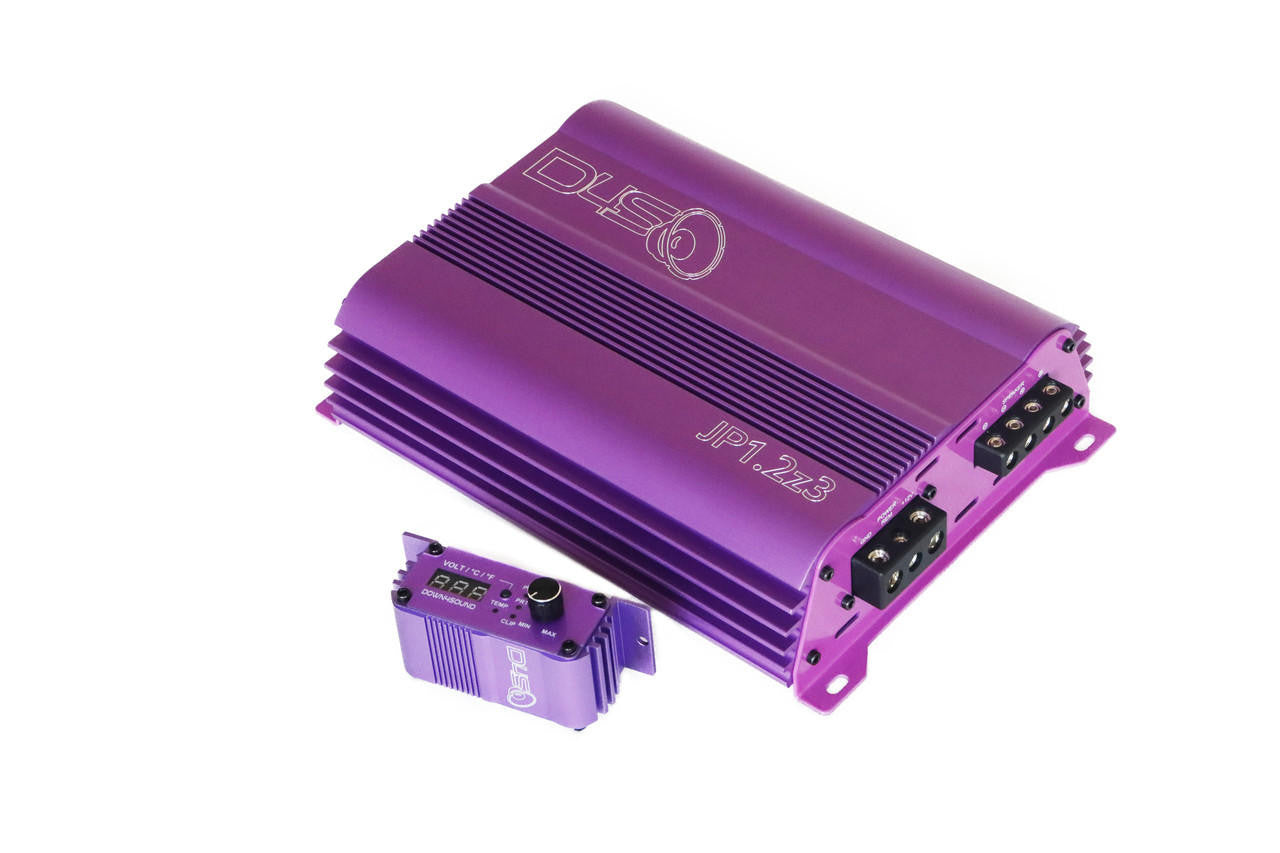

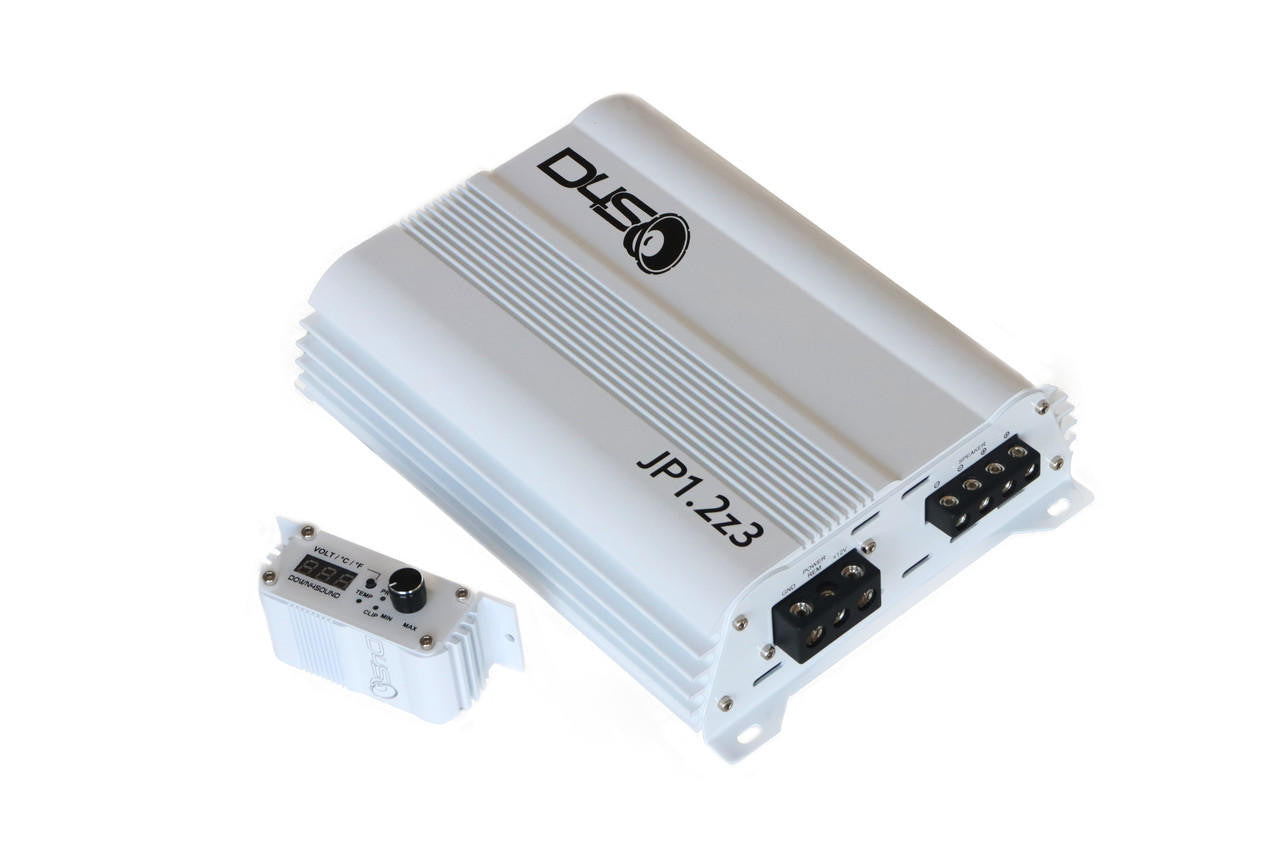

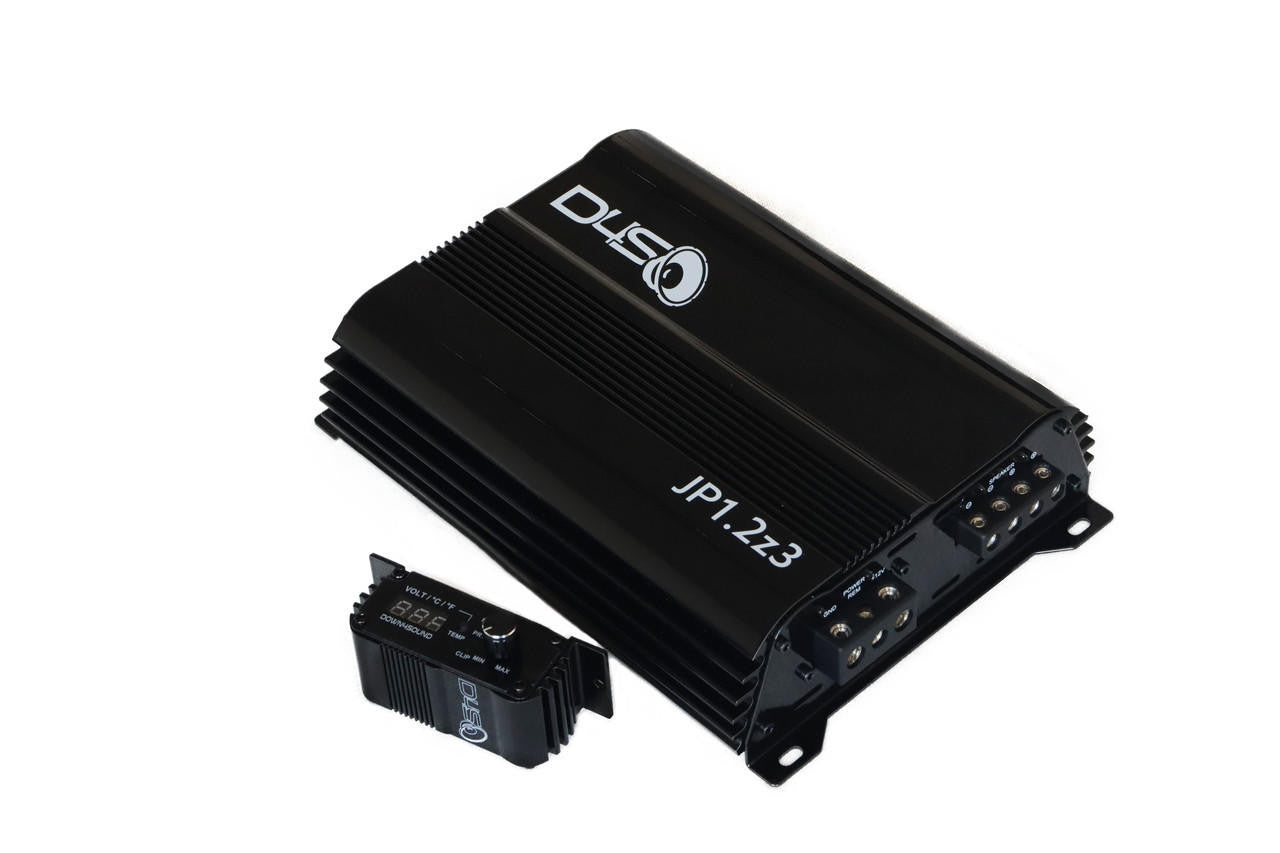

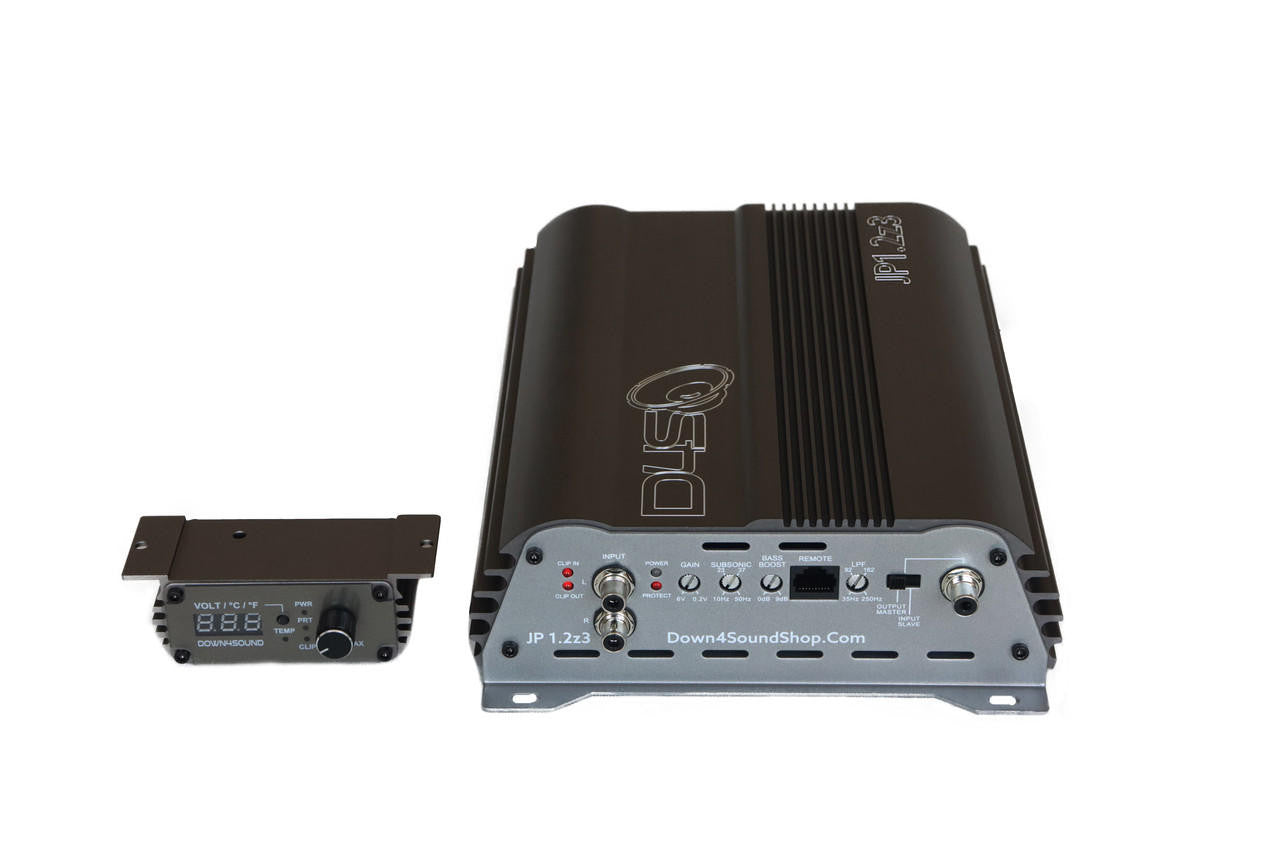

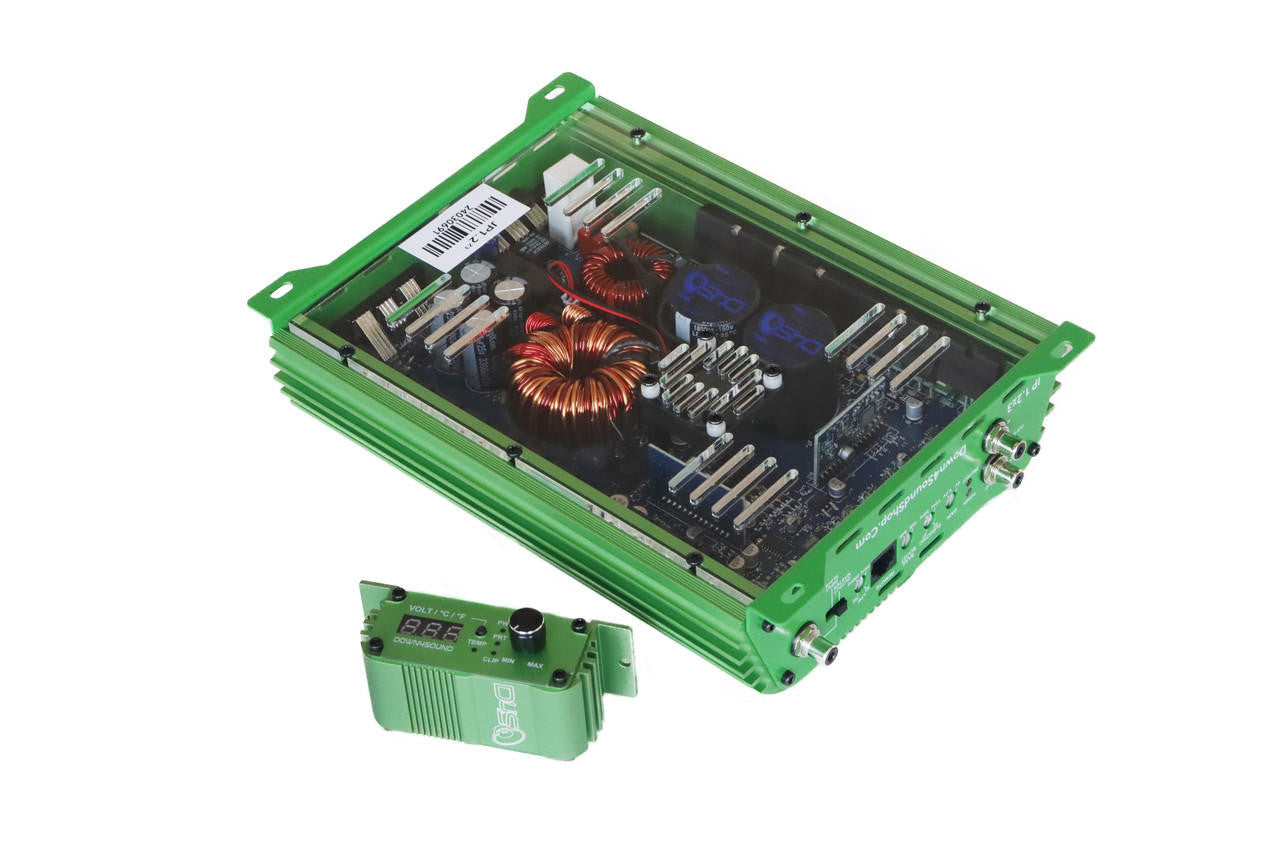

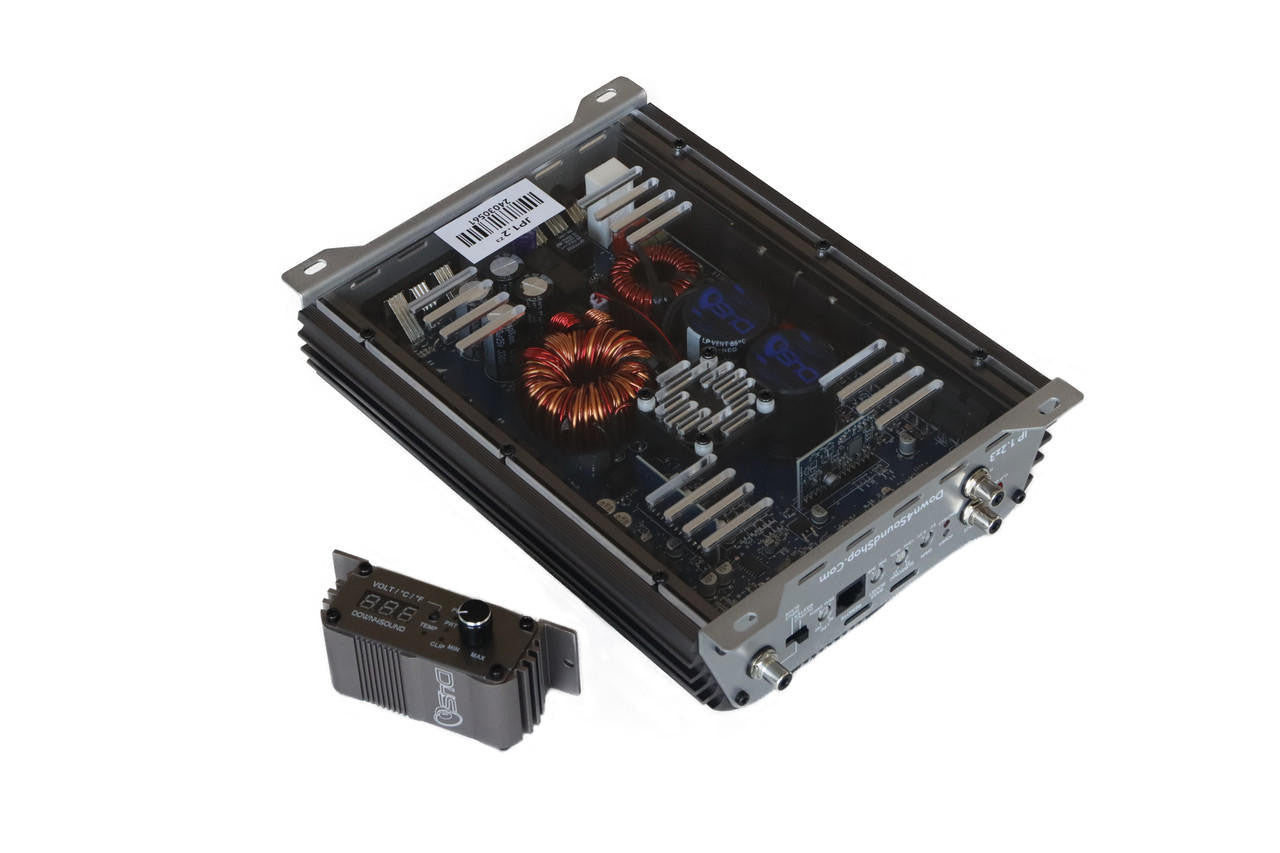

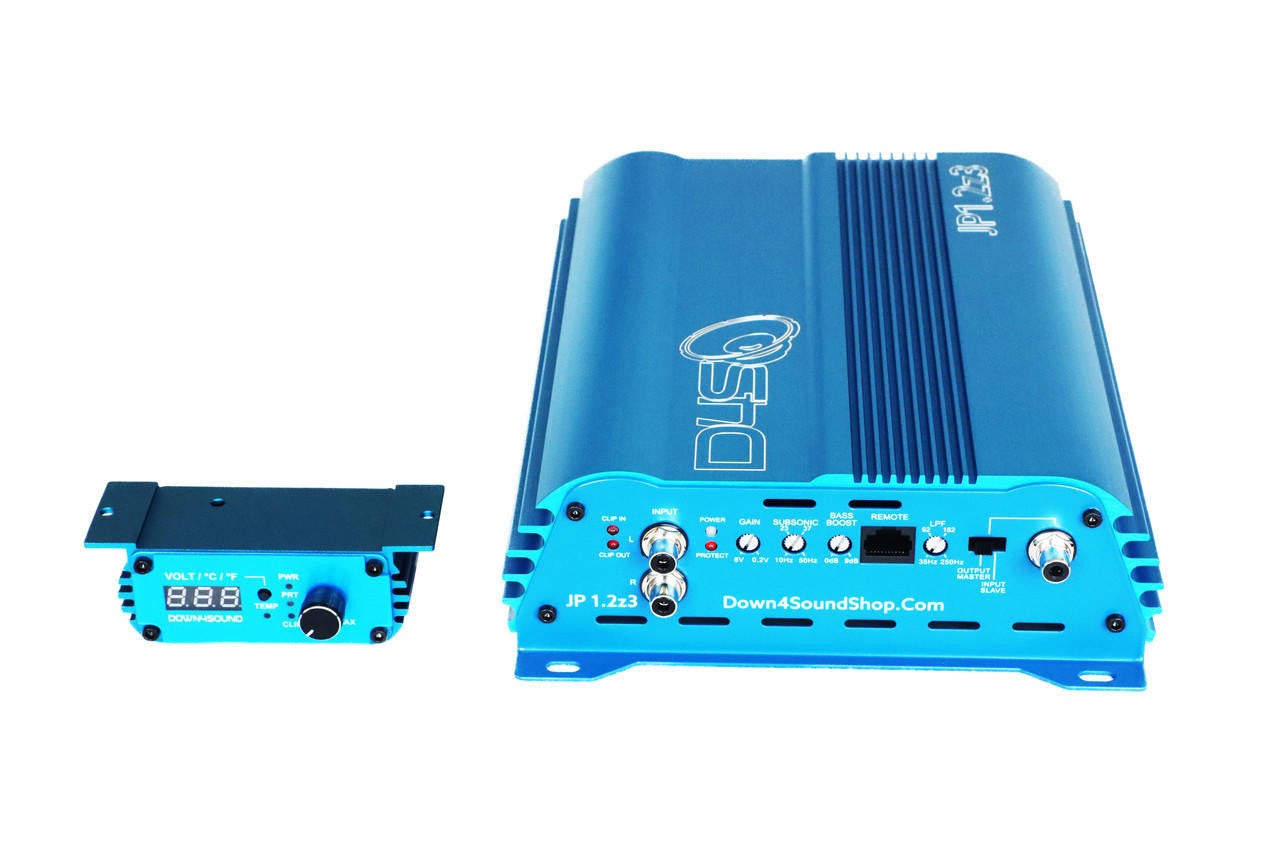

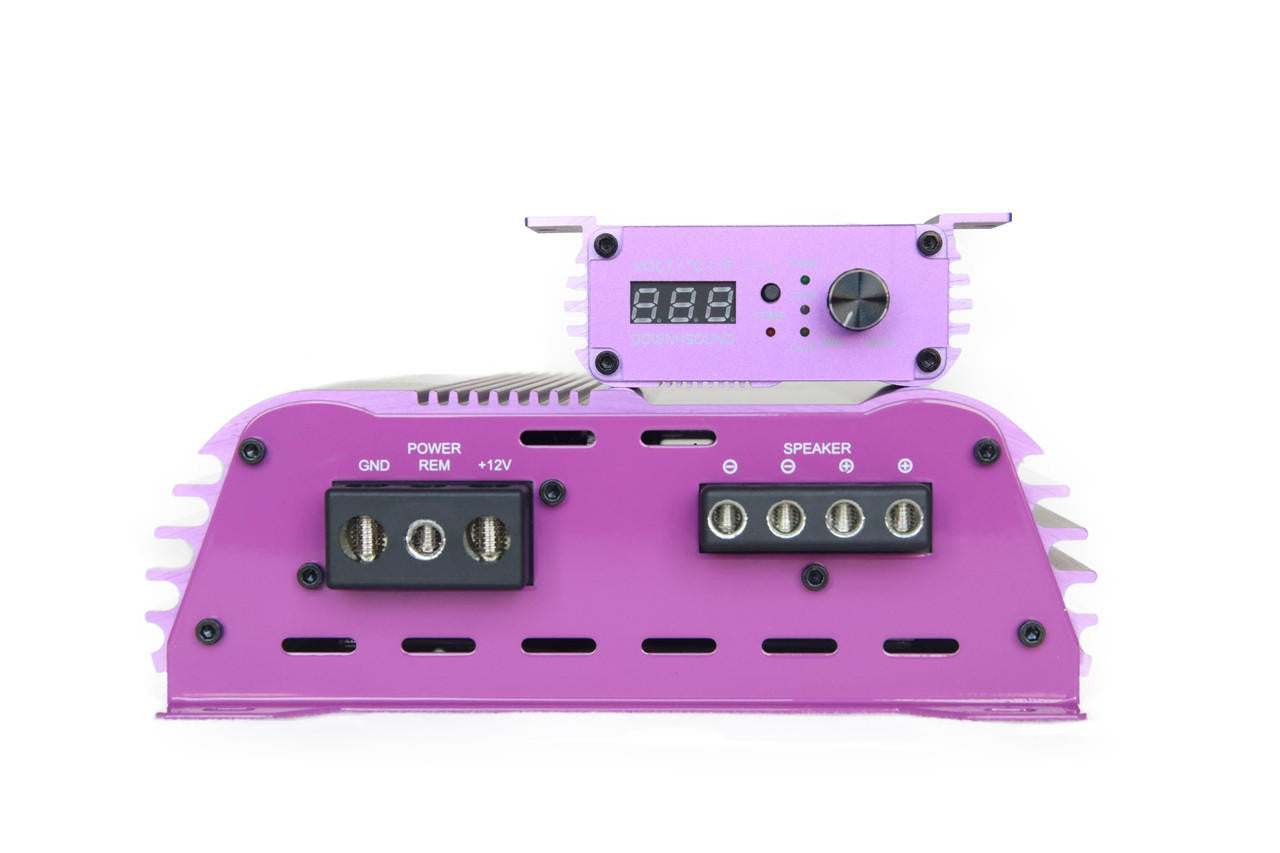

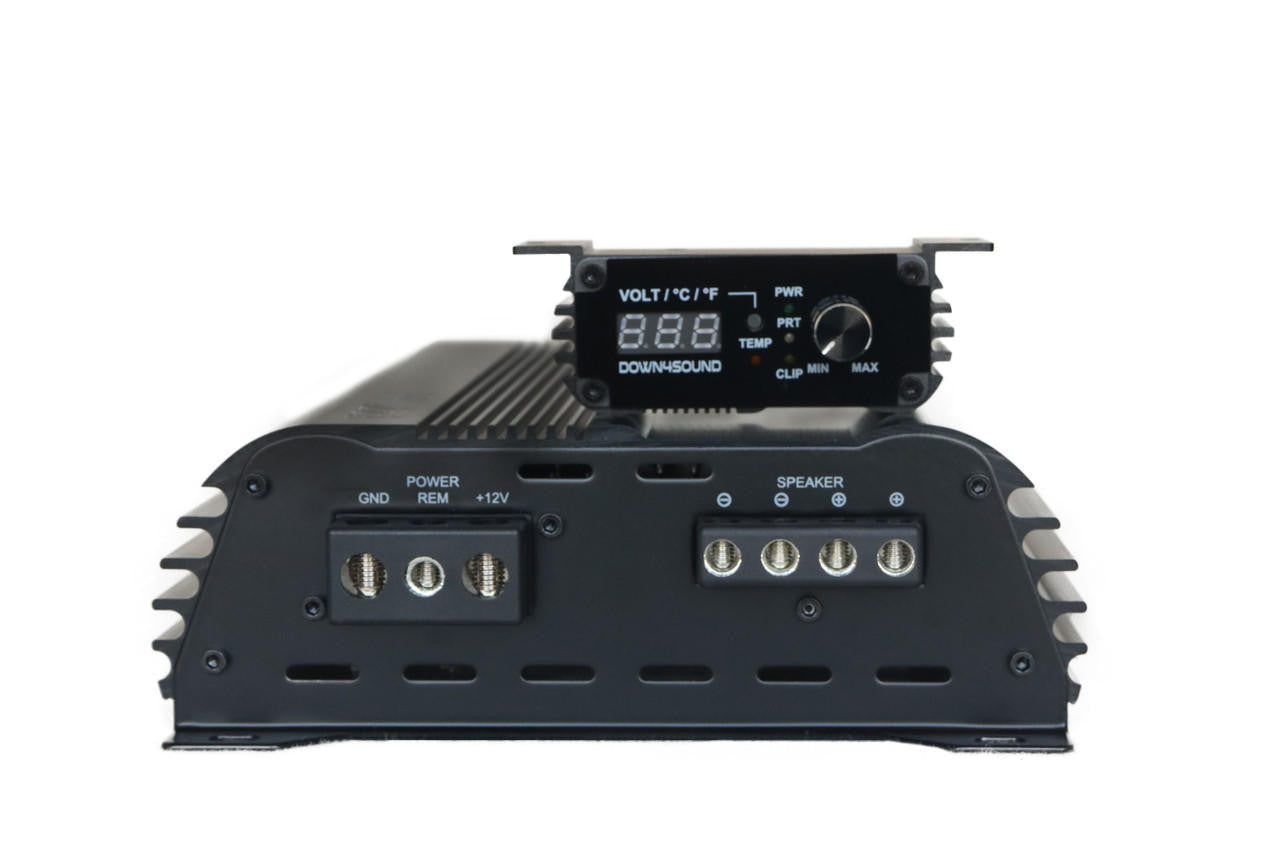

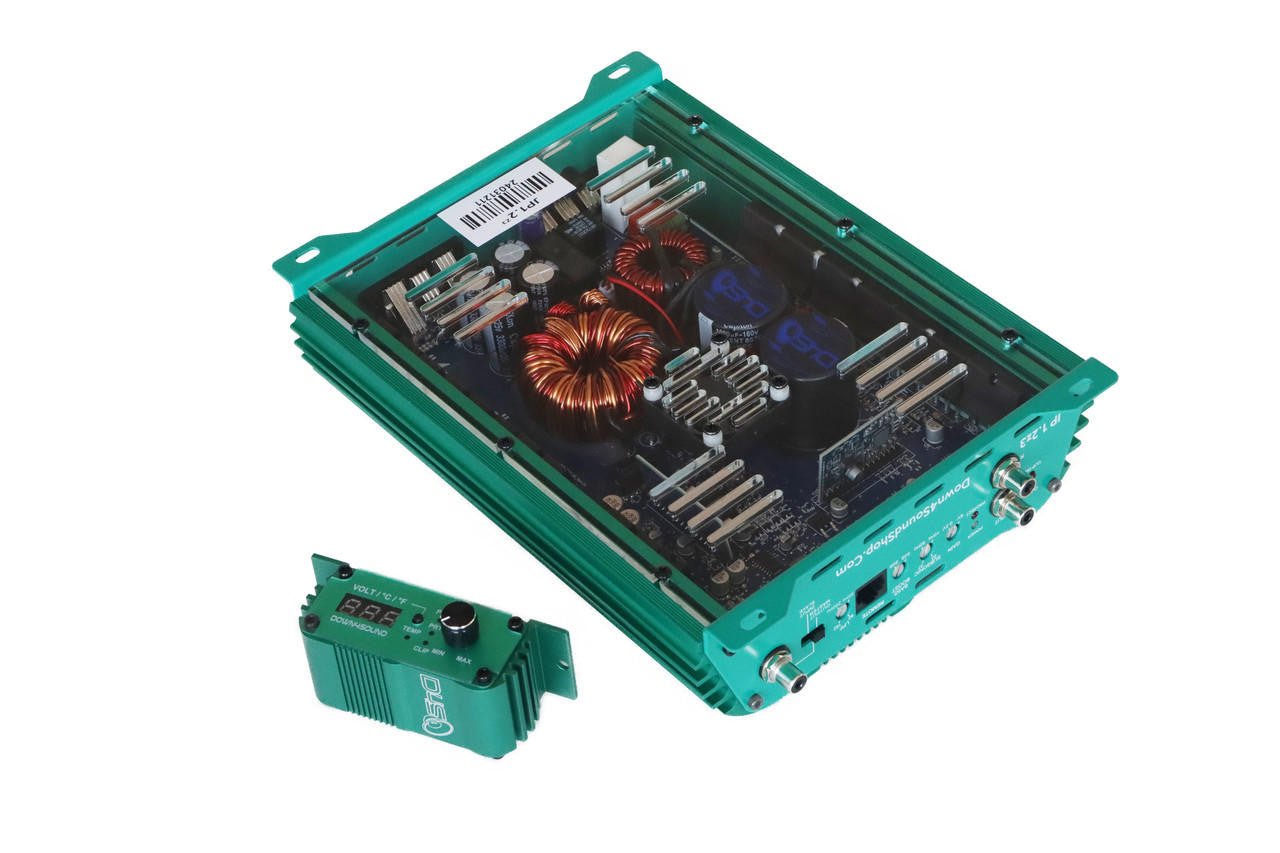

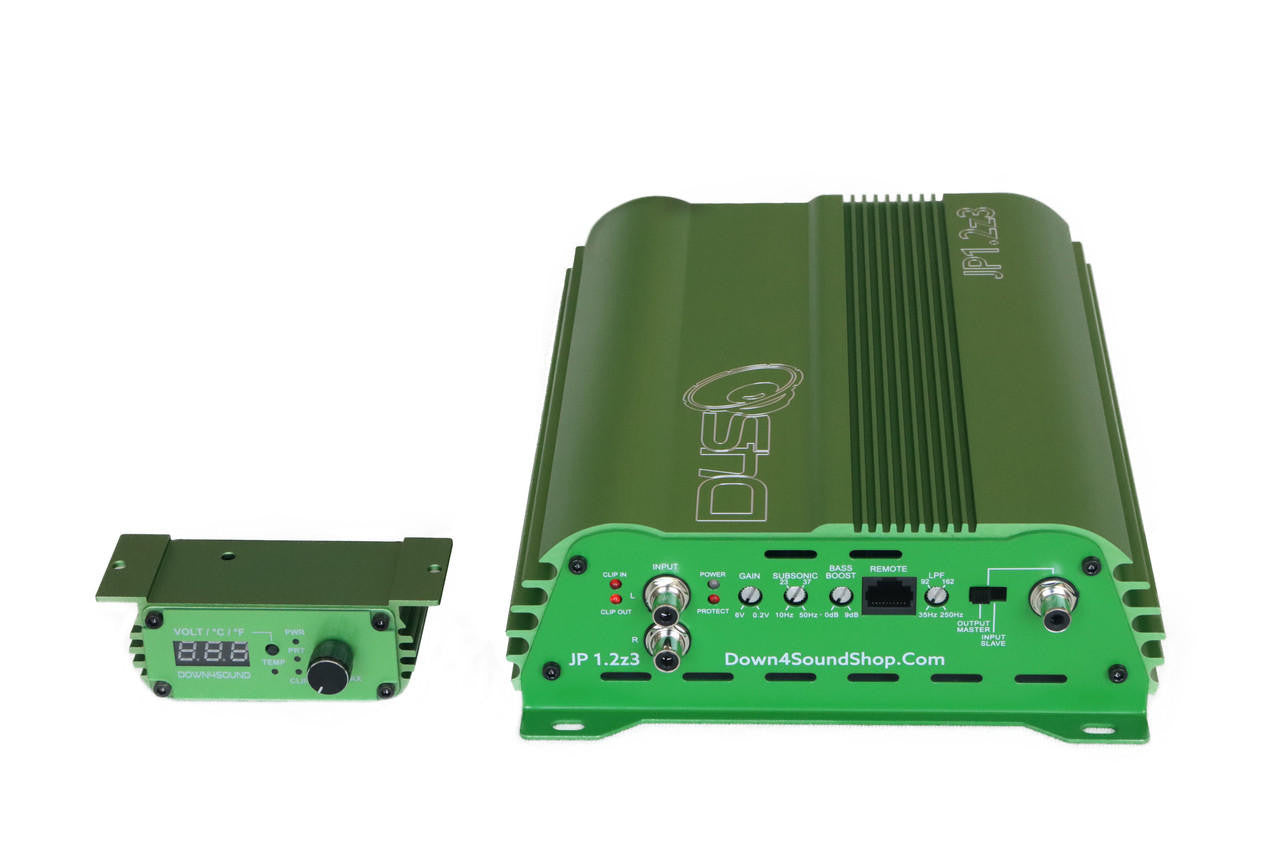

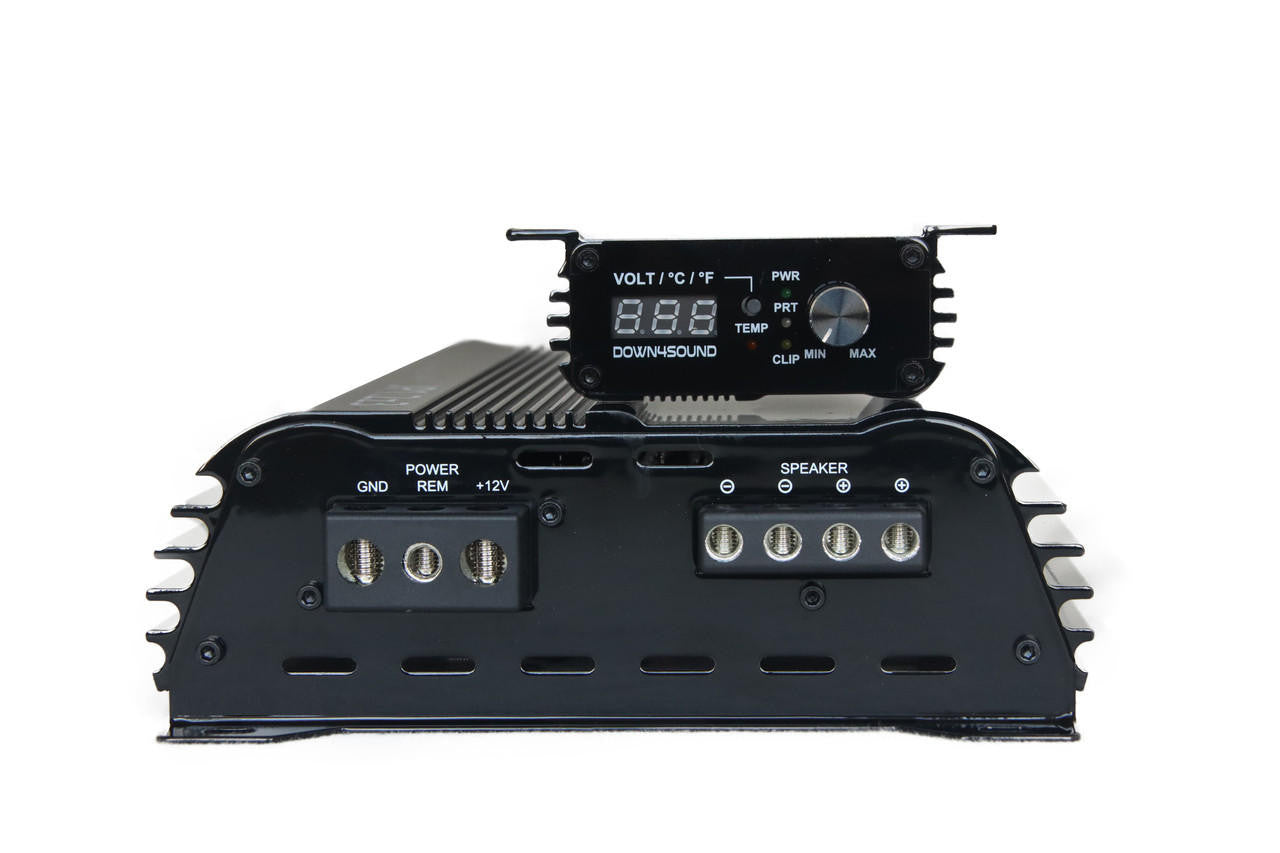

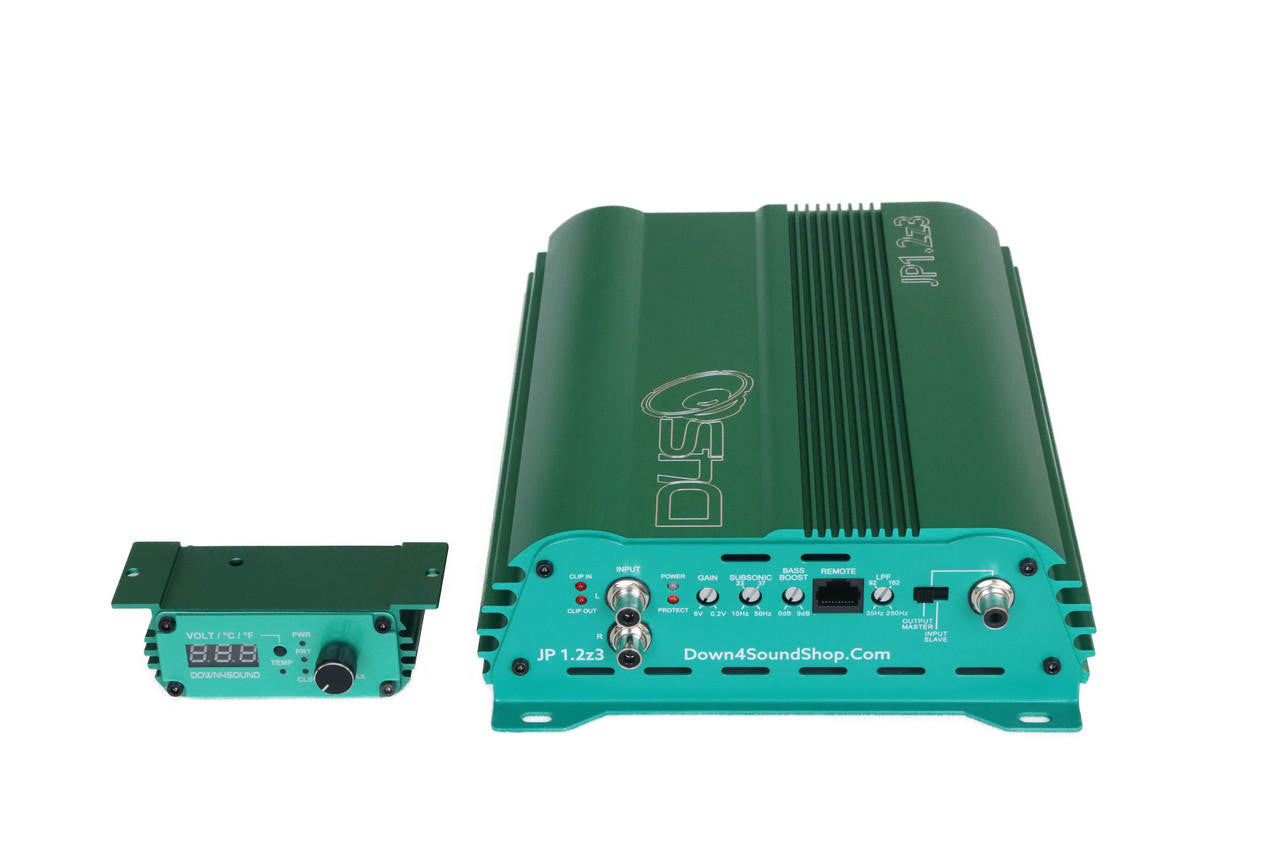

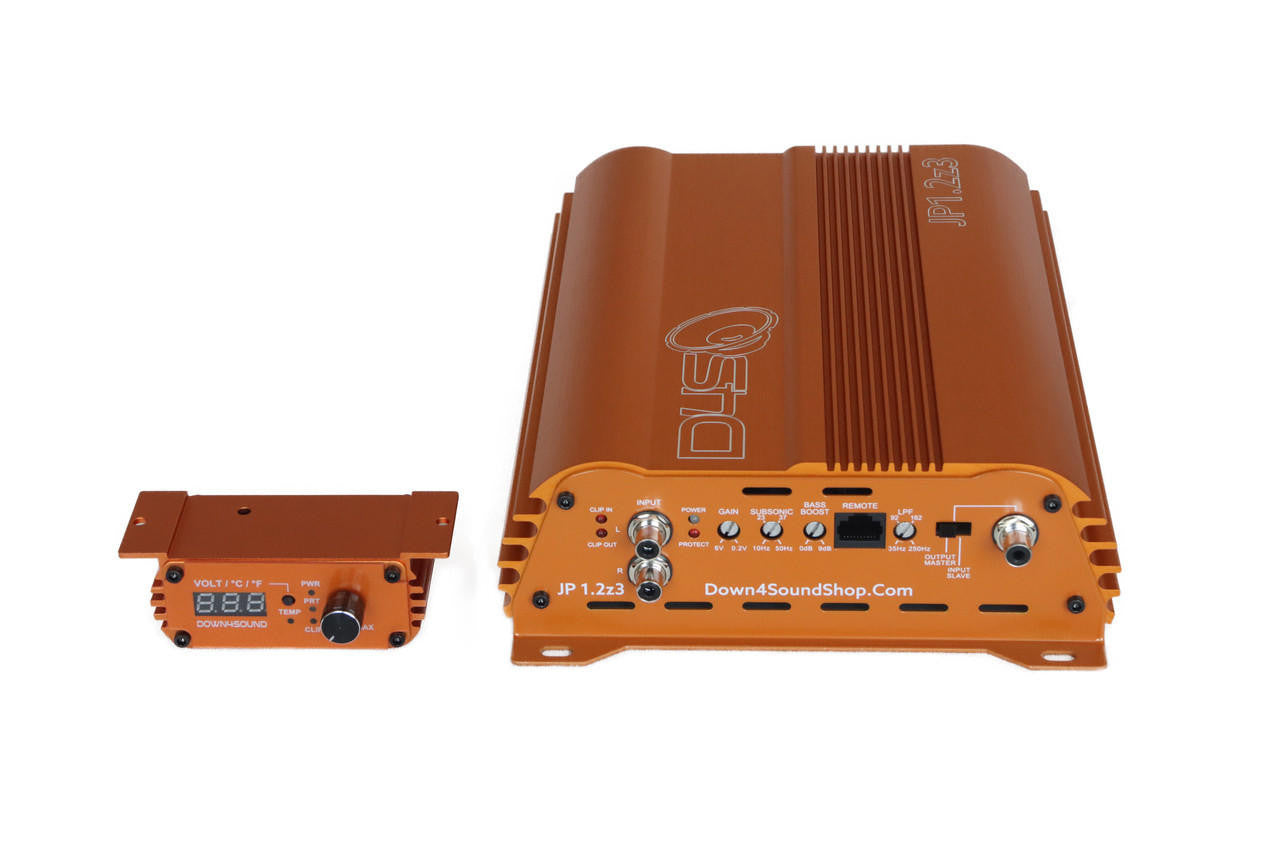

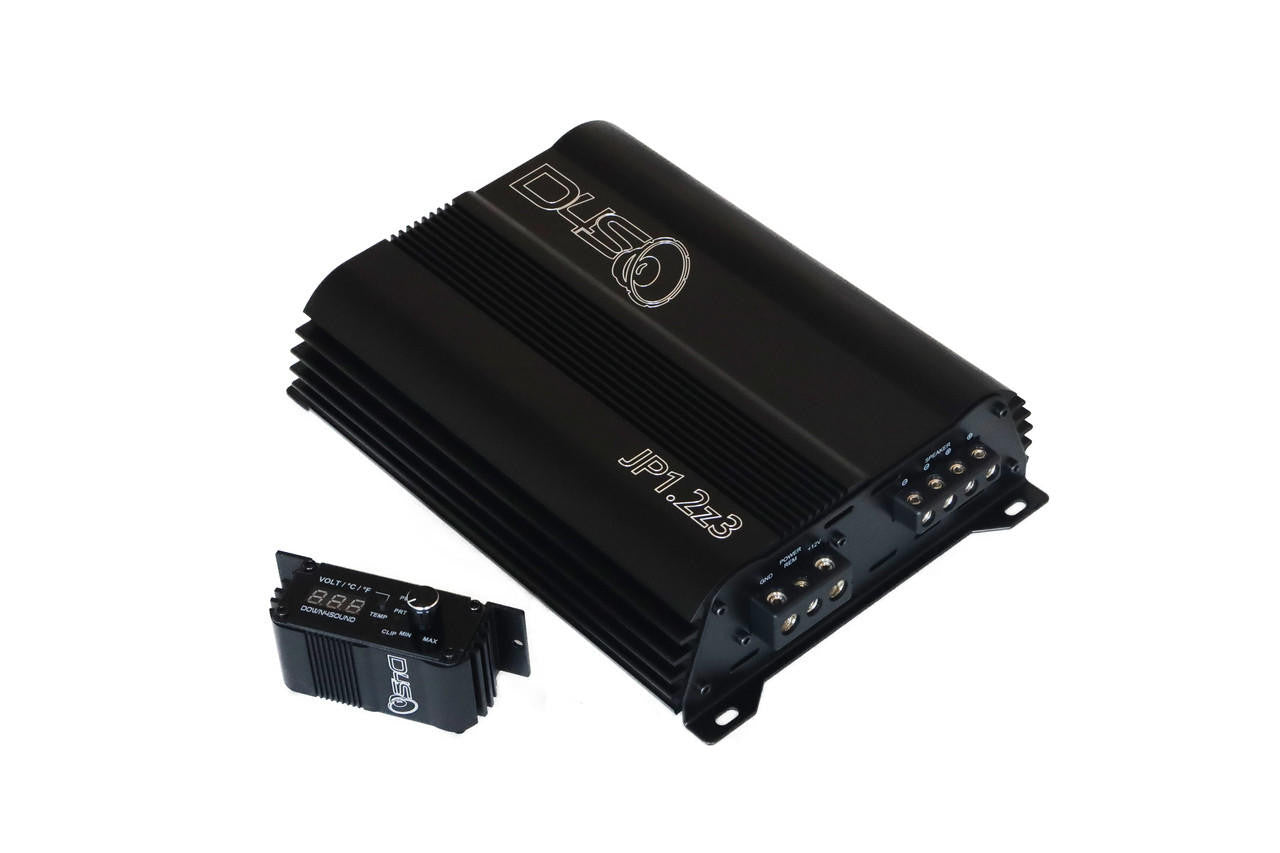

Down4Sound JP1.2Z3 1200W RMS 4 2 1 ANY-OHM Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.

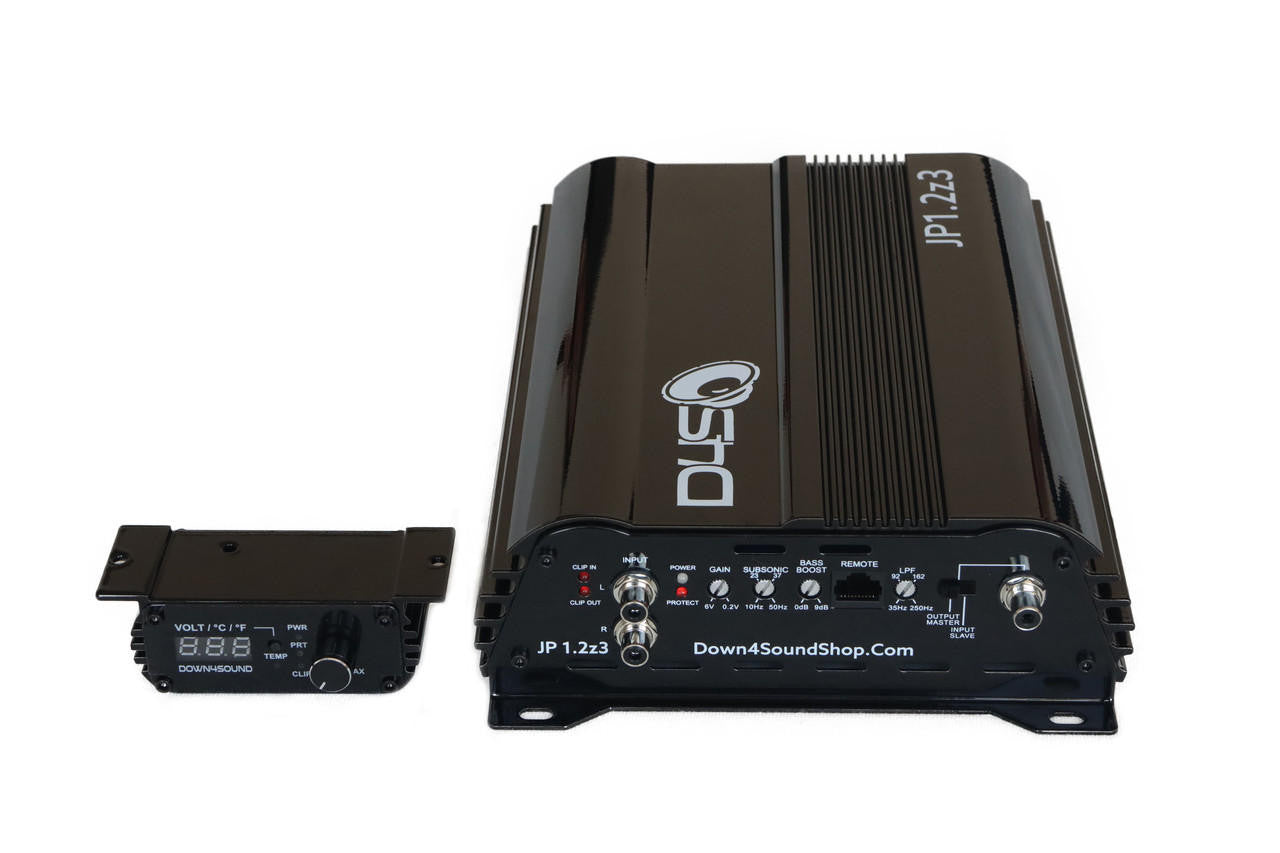

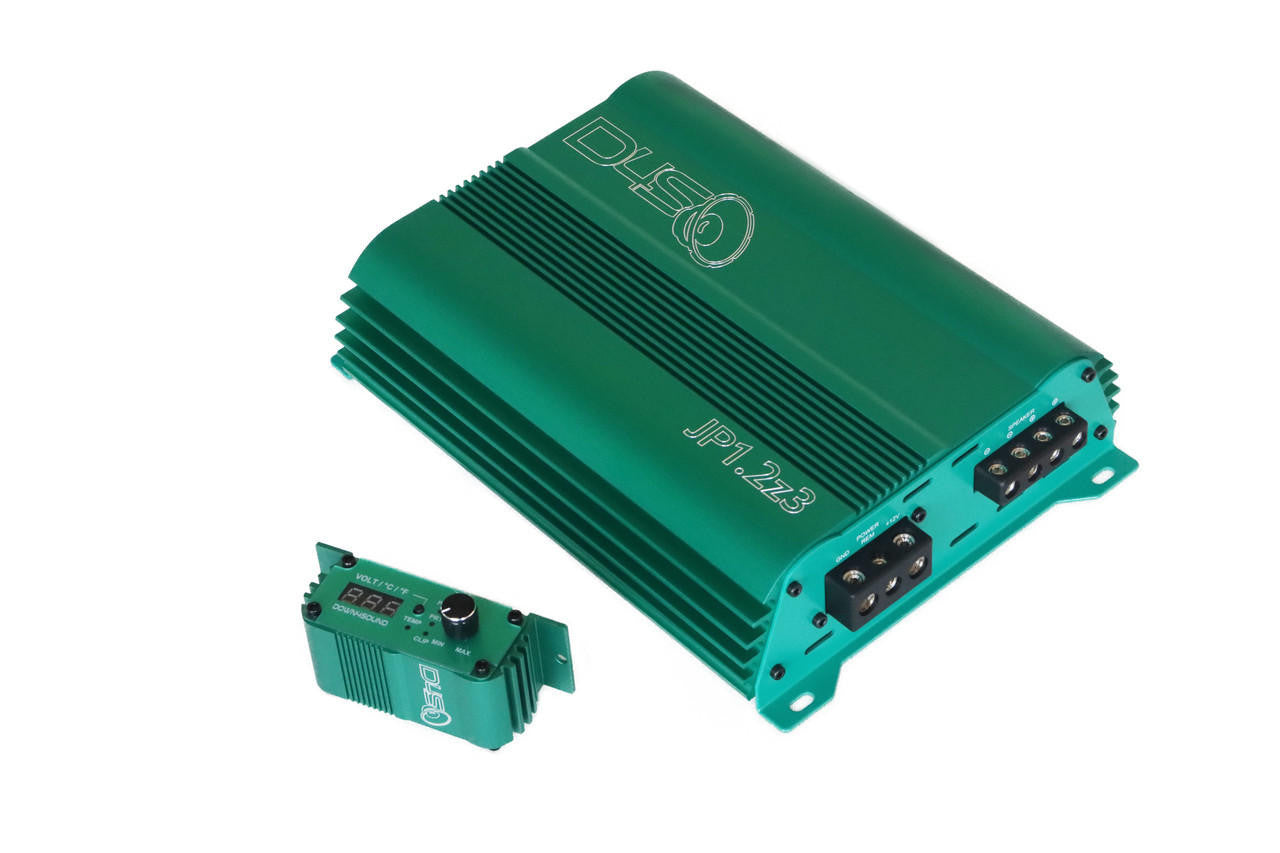

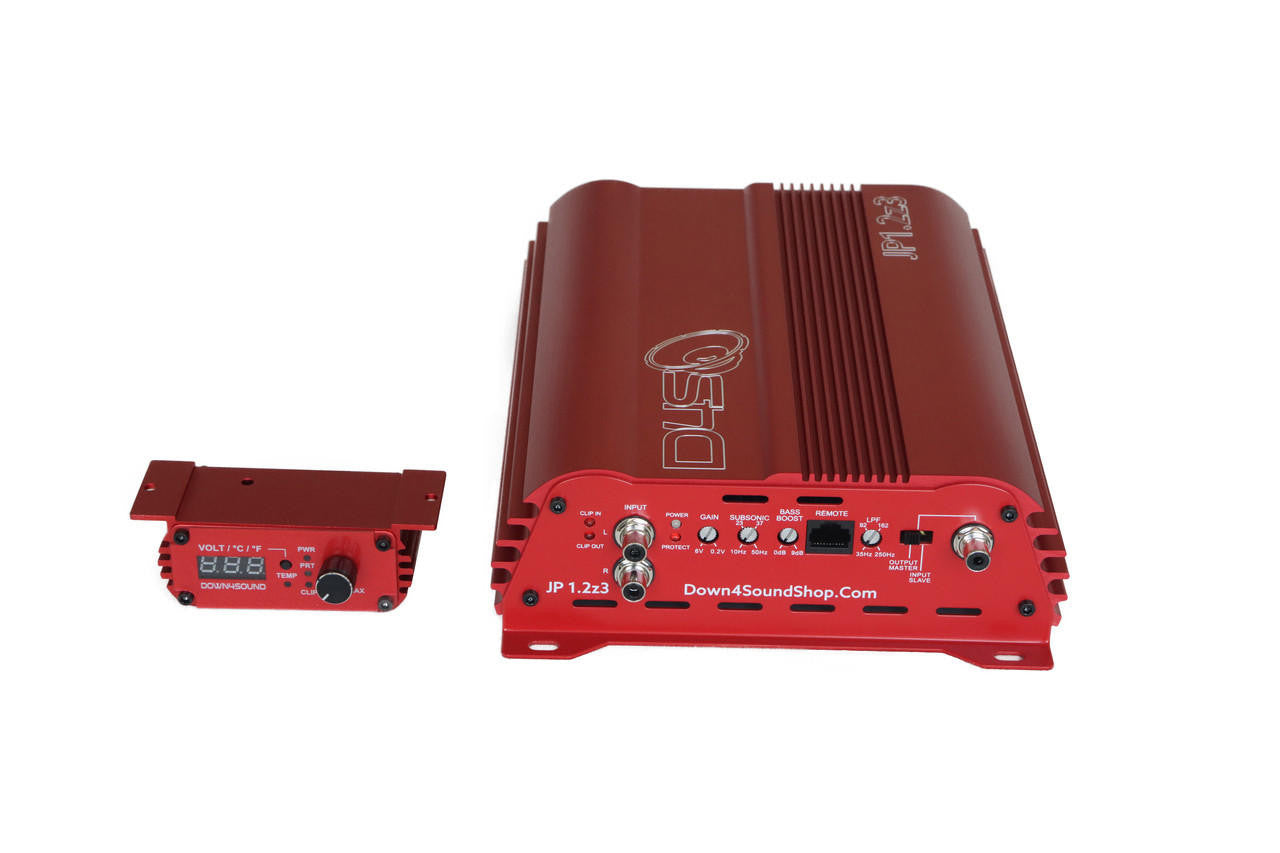

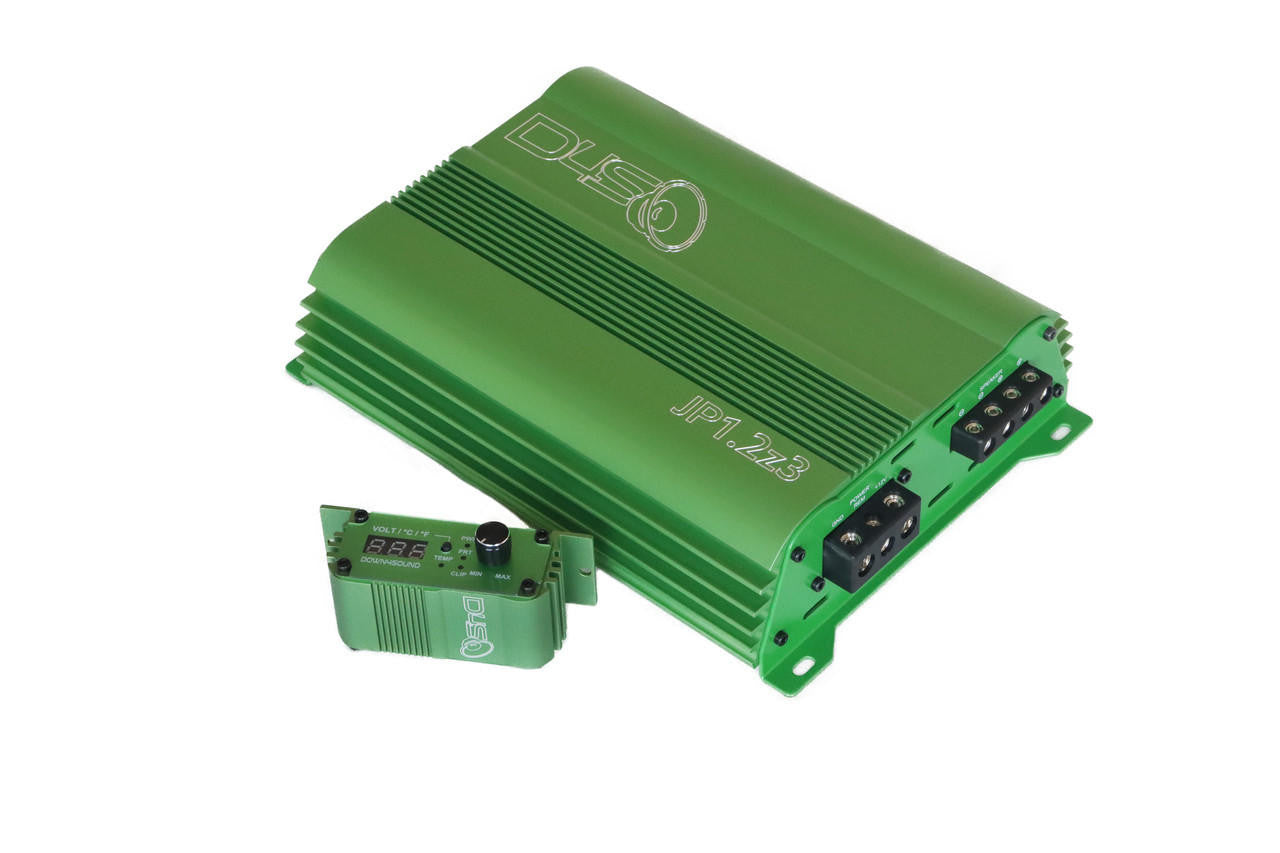

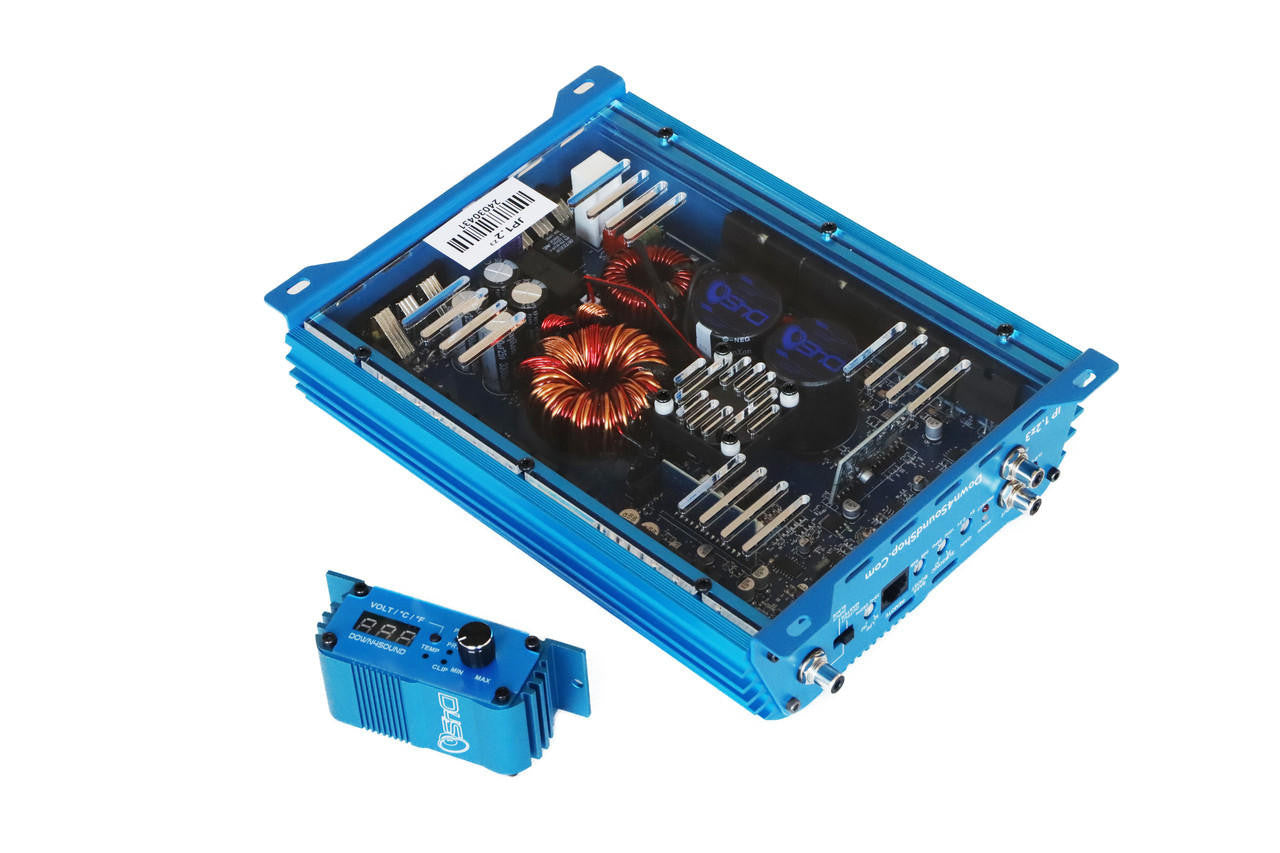

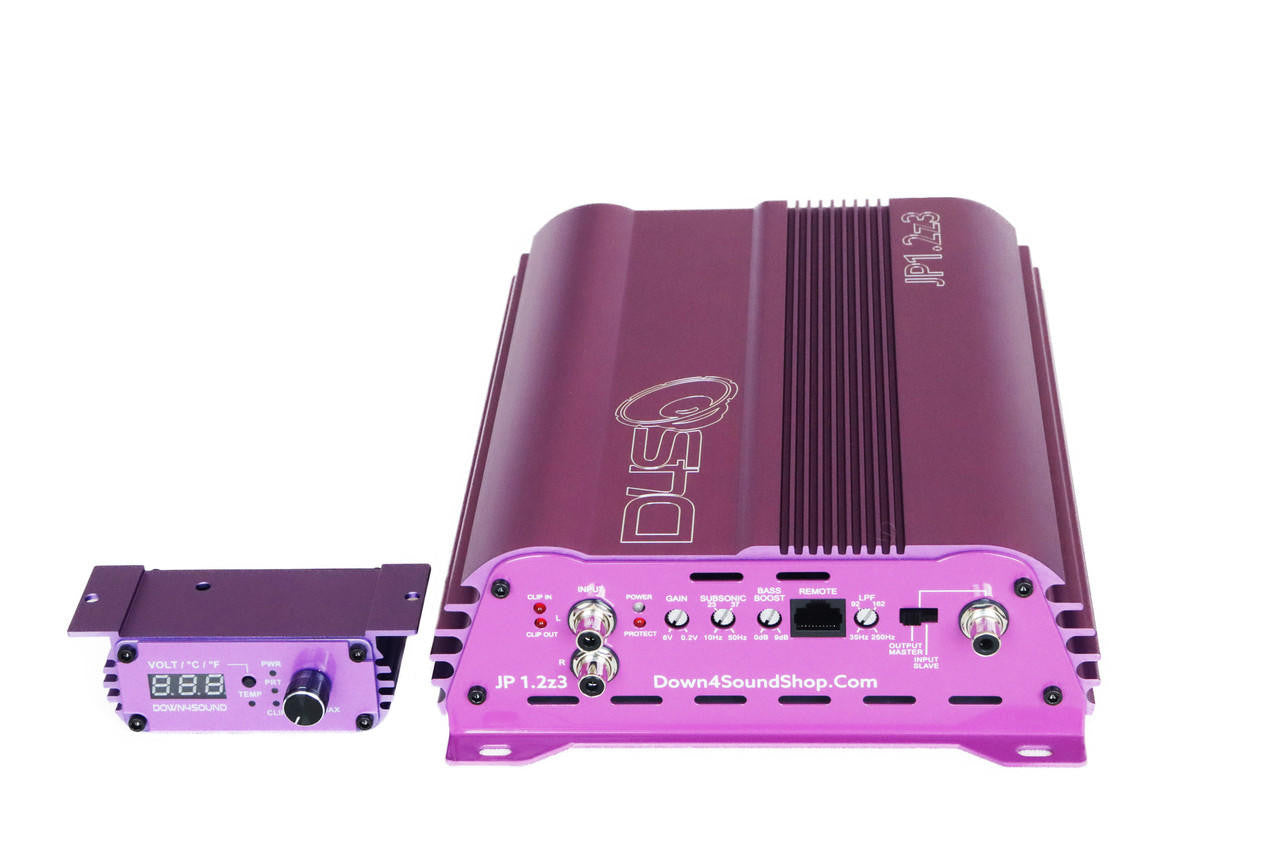

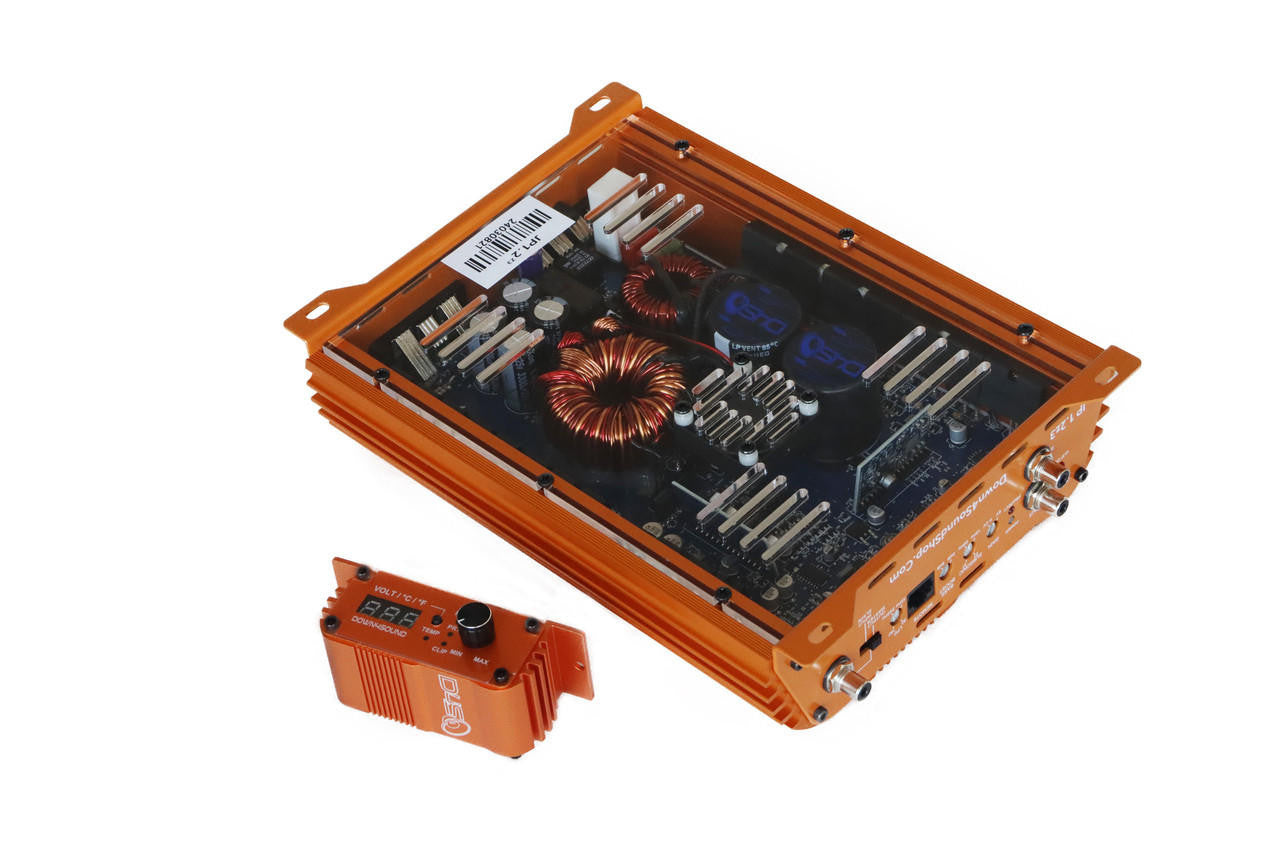

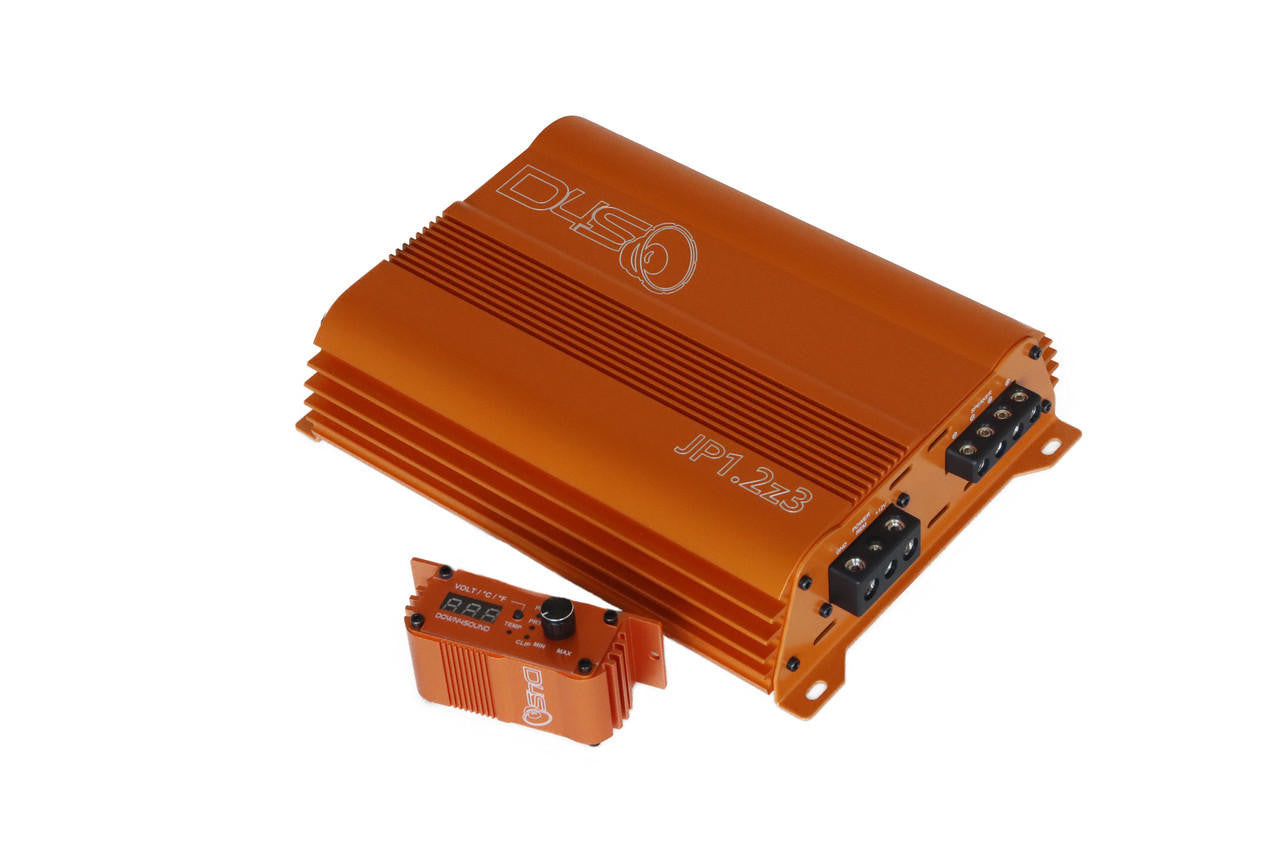

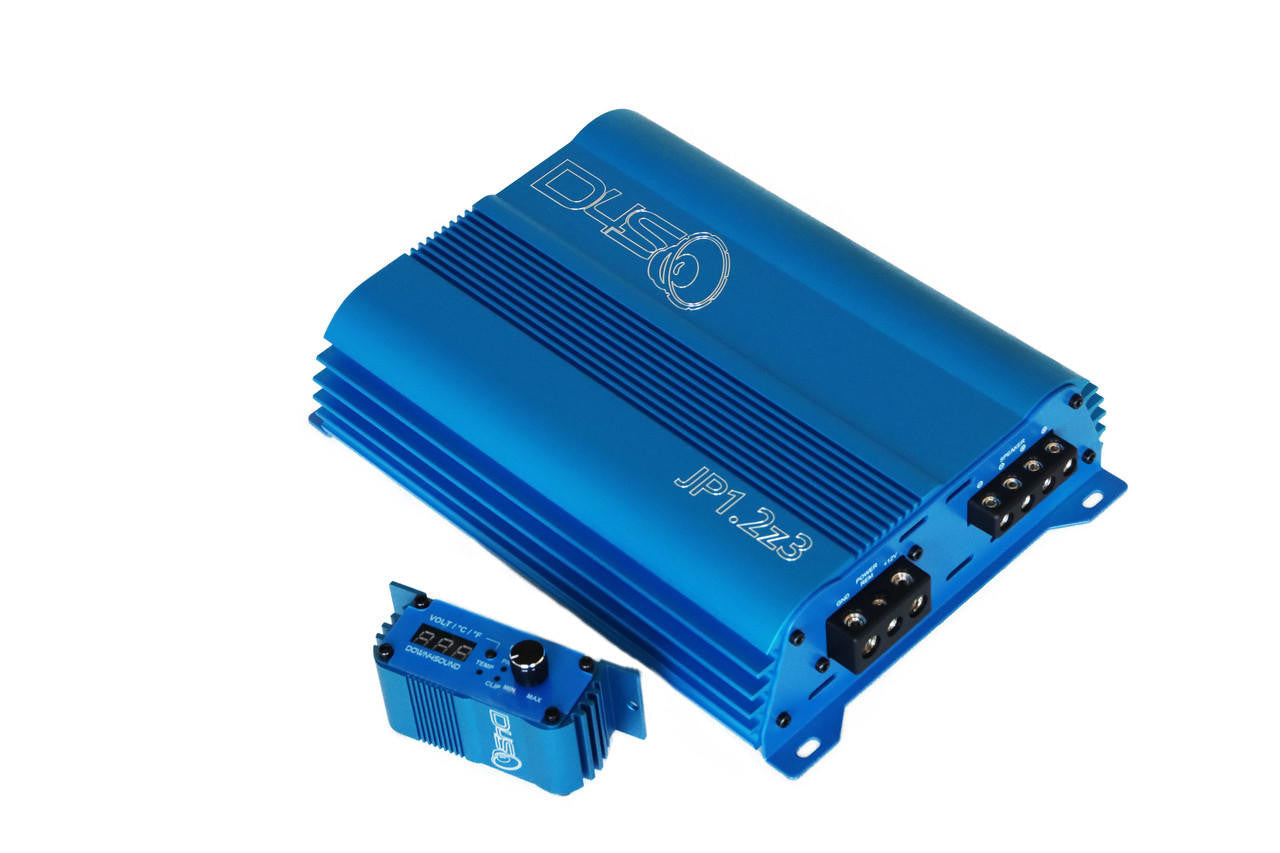

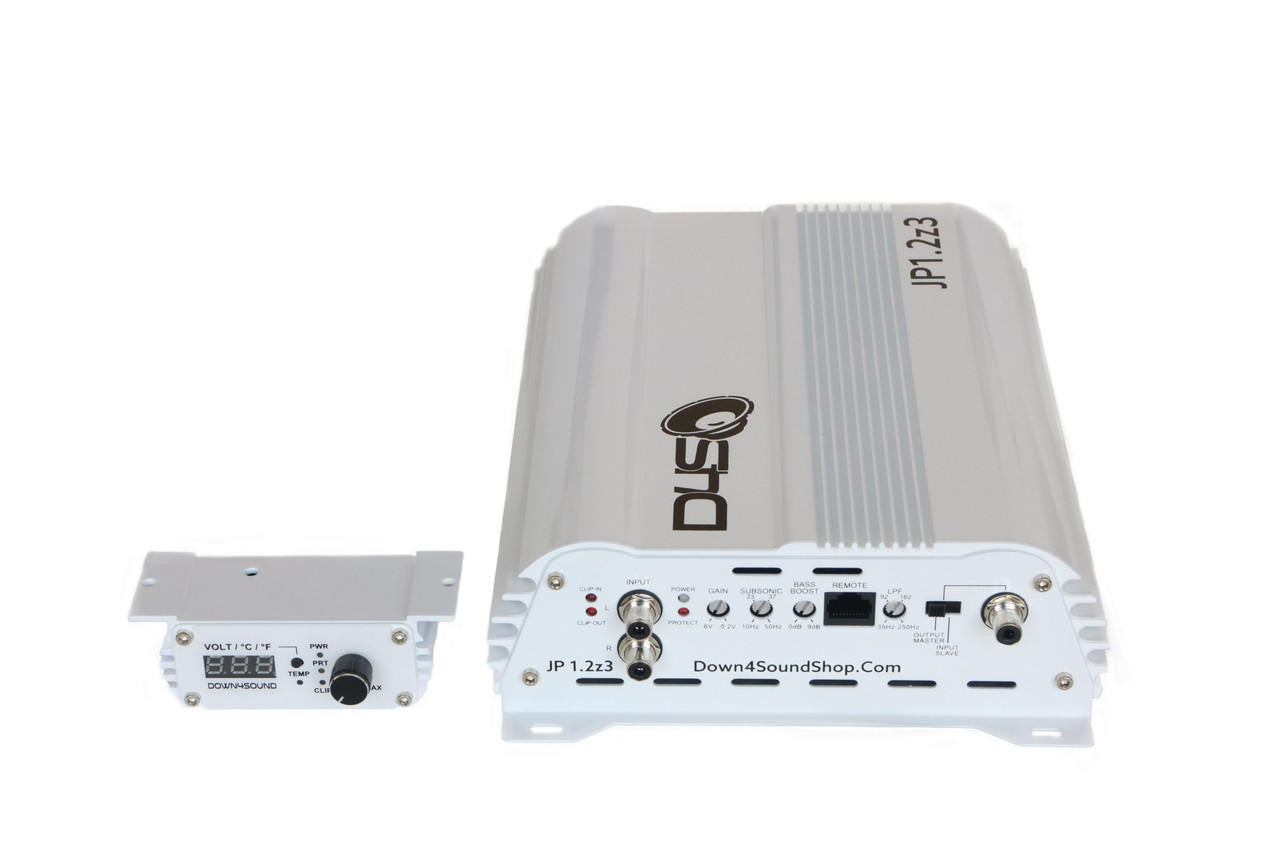

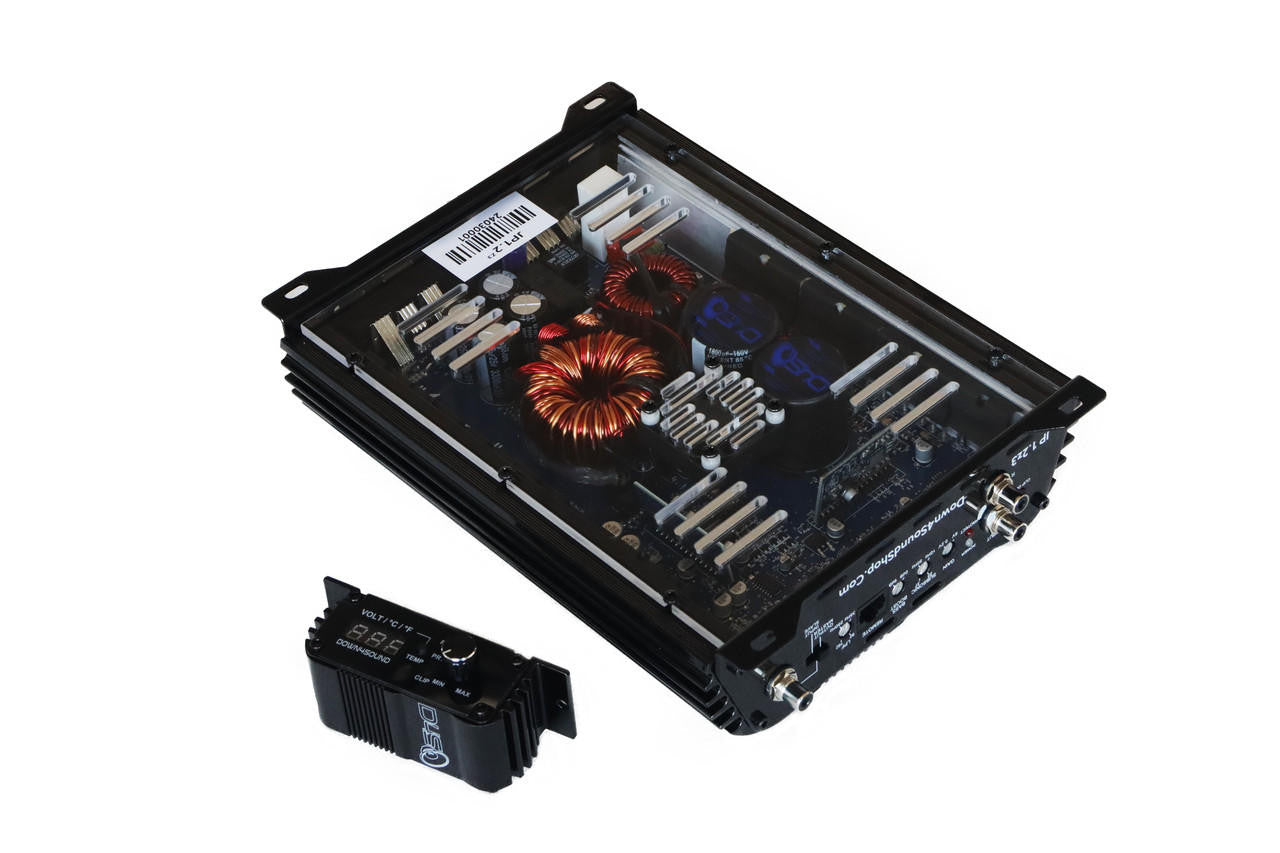

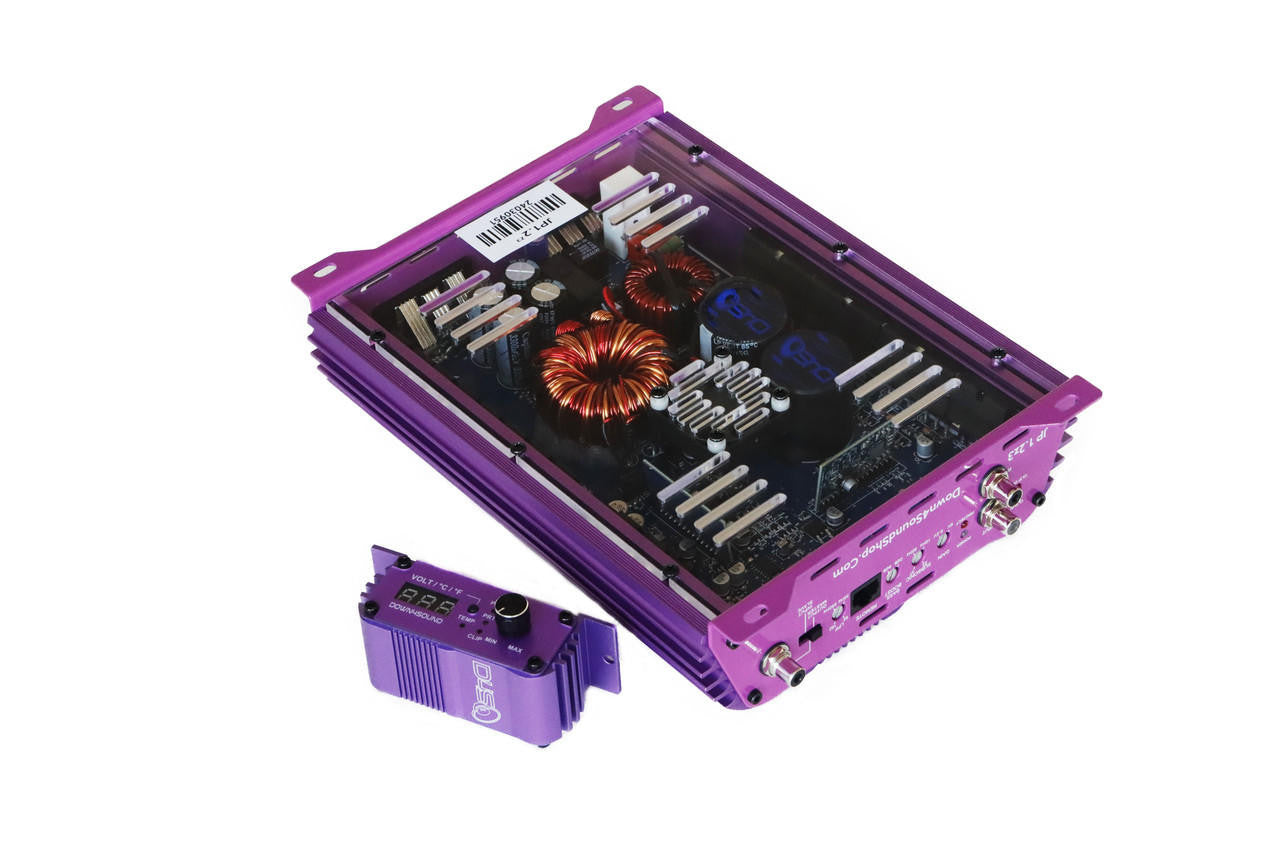

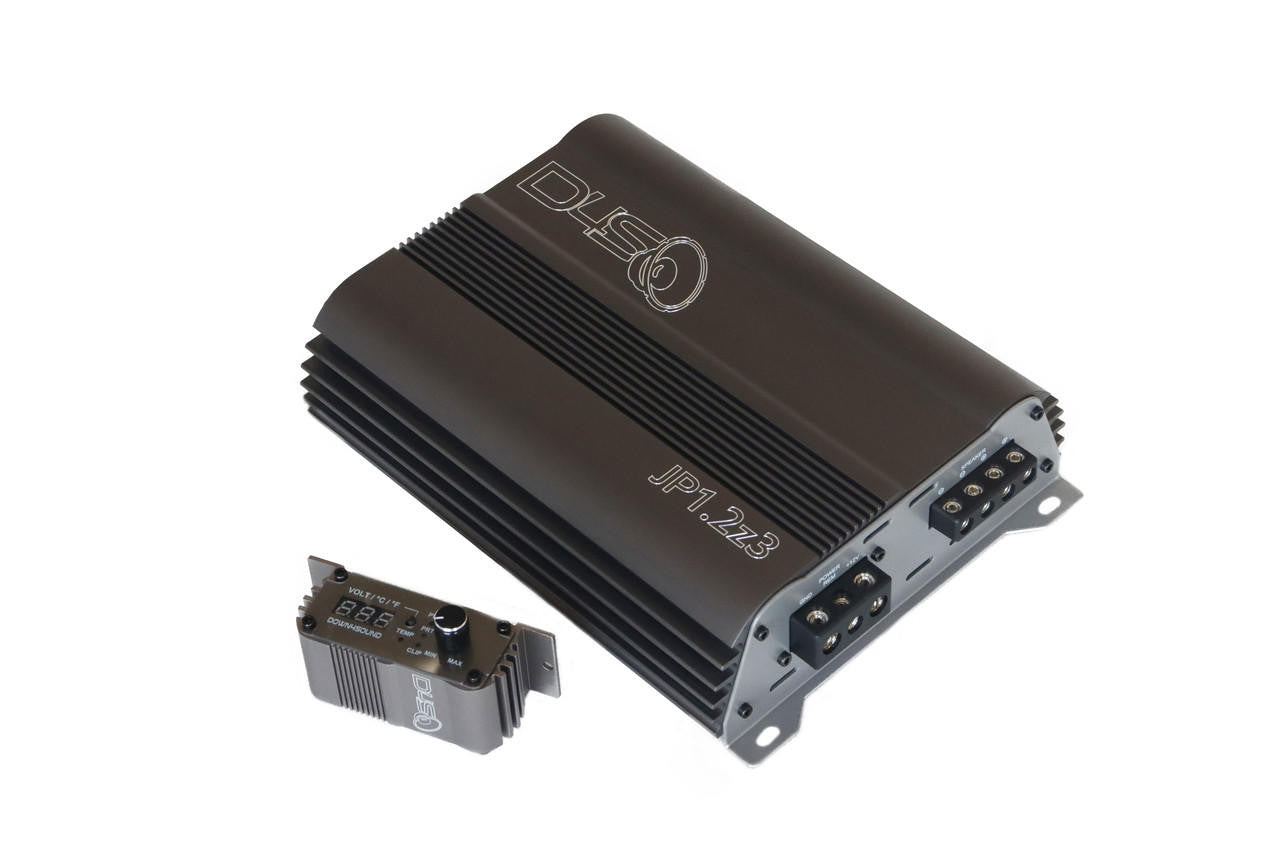

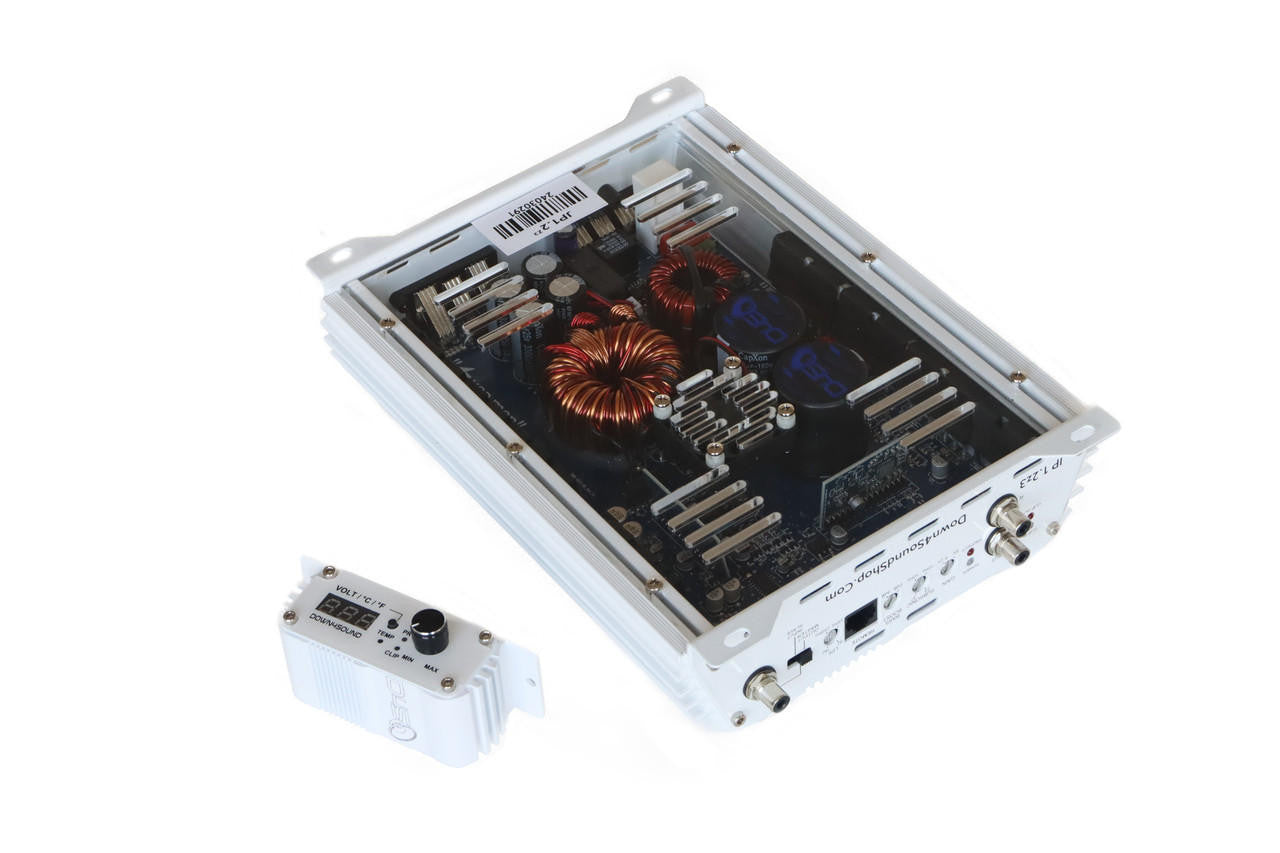

Prepare to elevate your audio experience with the sleek and powerful DOWN4SOUND JP1.2z3 amplifier. Designed for versatility and performance, this amplifier offers exceptional power and efficiency across a wide range of impedance configurations, from 4 ohms to 1 ohm.
Product Features
- Strappable Digital Monoblock Amplifier
- Stable into 1 Ohm Mono Load
- High-Speed MOSFET Power Supply
- Variable Low Pass Filter
- Variable Subsonic Filter
- Variable Bass Boost
- 4-Way Protection Circuits (Thermal, High & Low Voltage, Speaker Short, and DC)
- Bass Remote with Voltmeter and Temperature Display

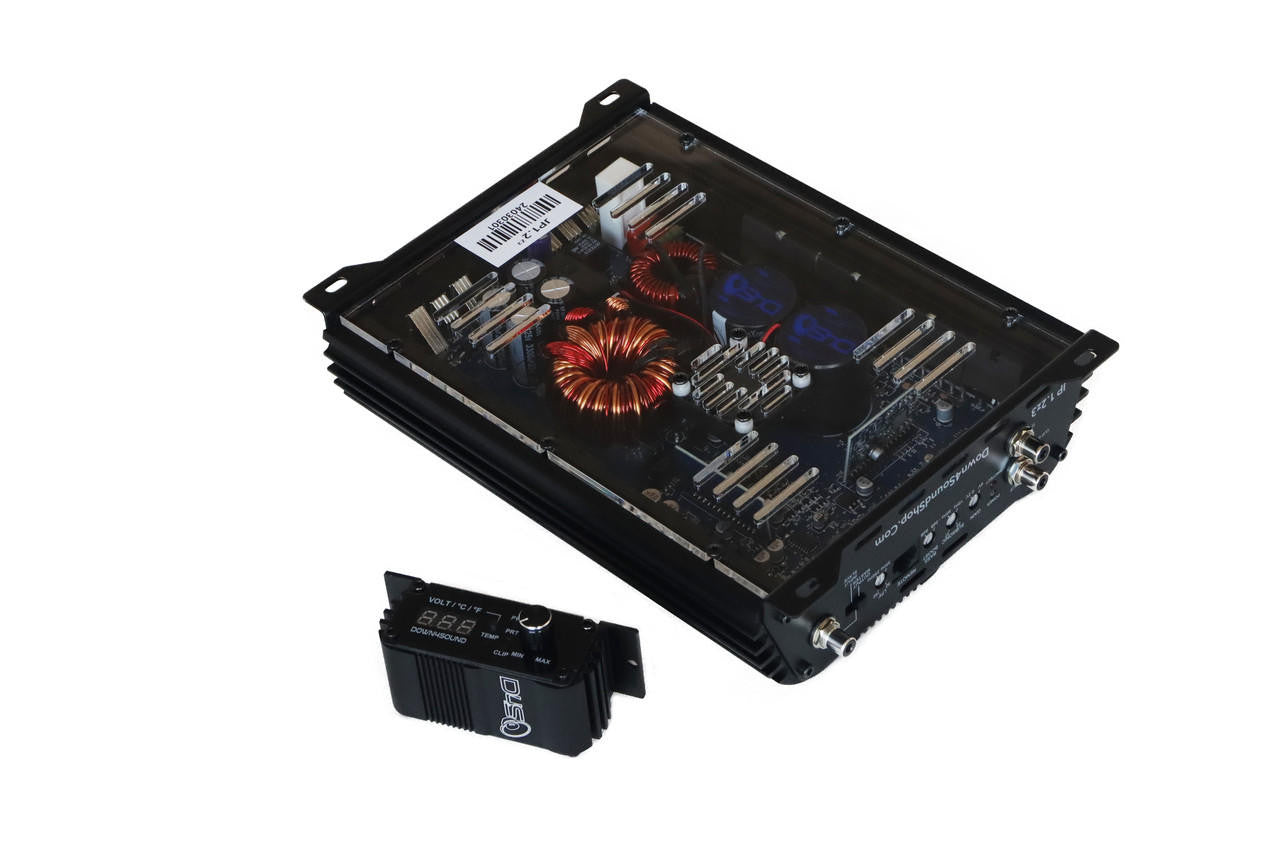

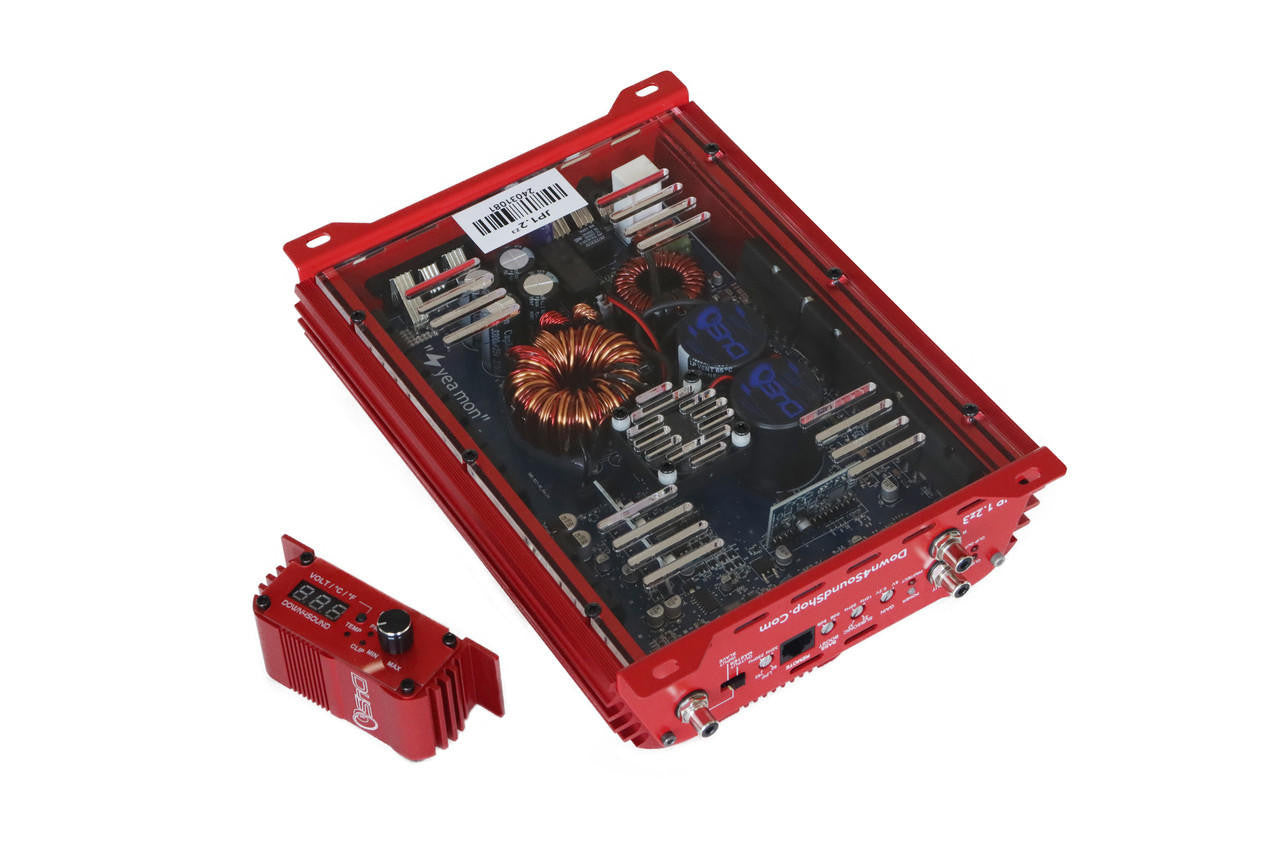

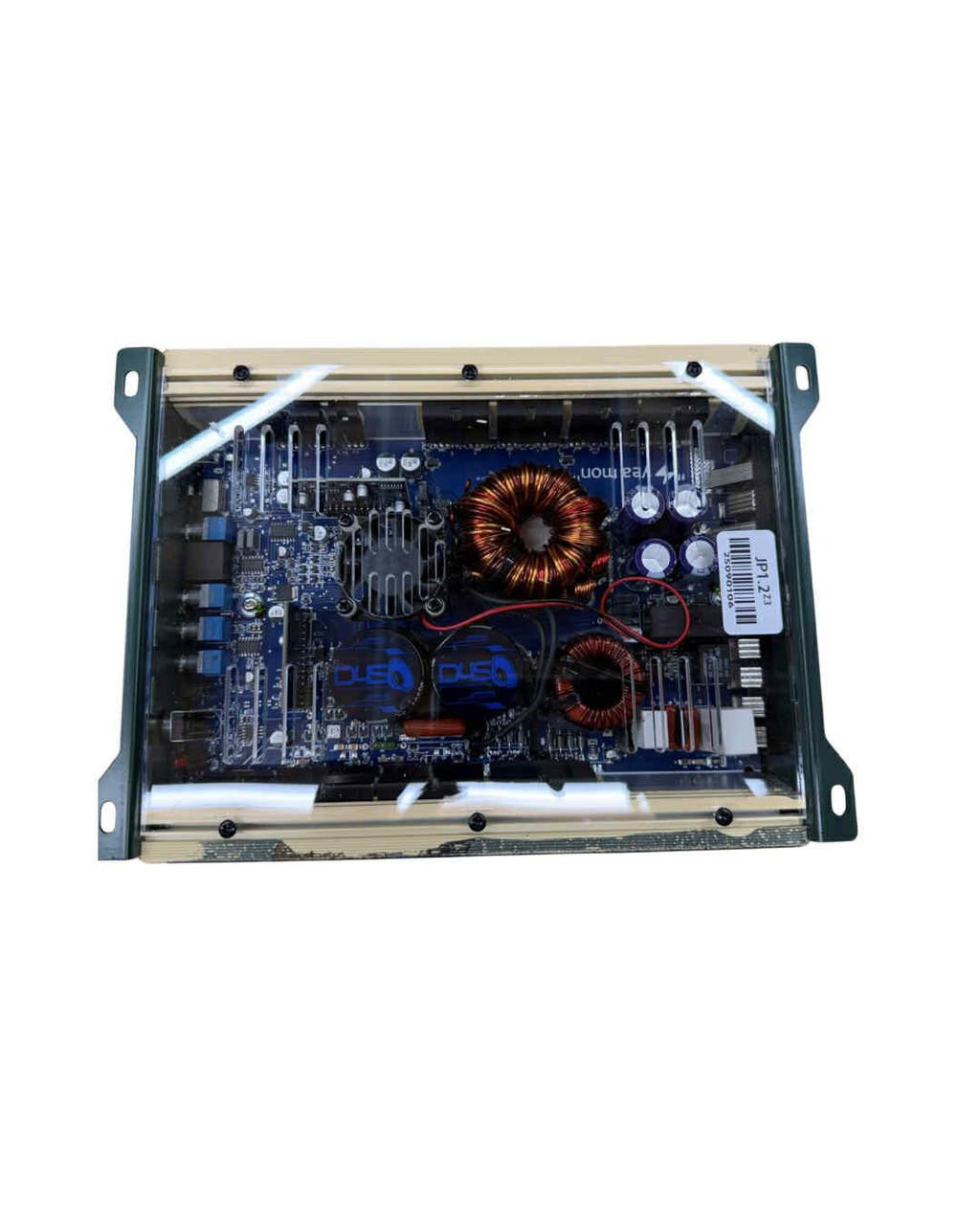

- High Purity Copper Printed Circuit Board

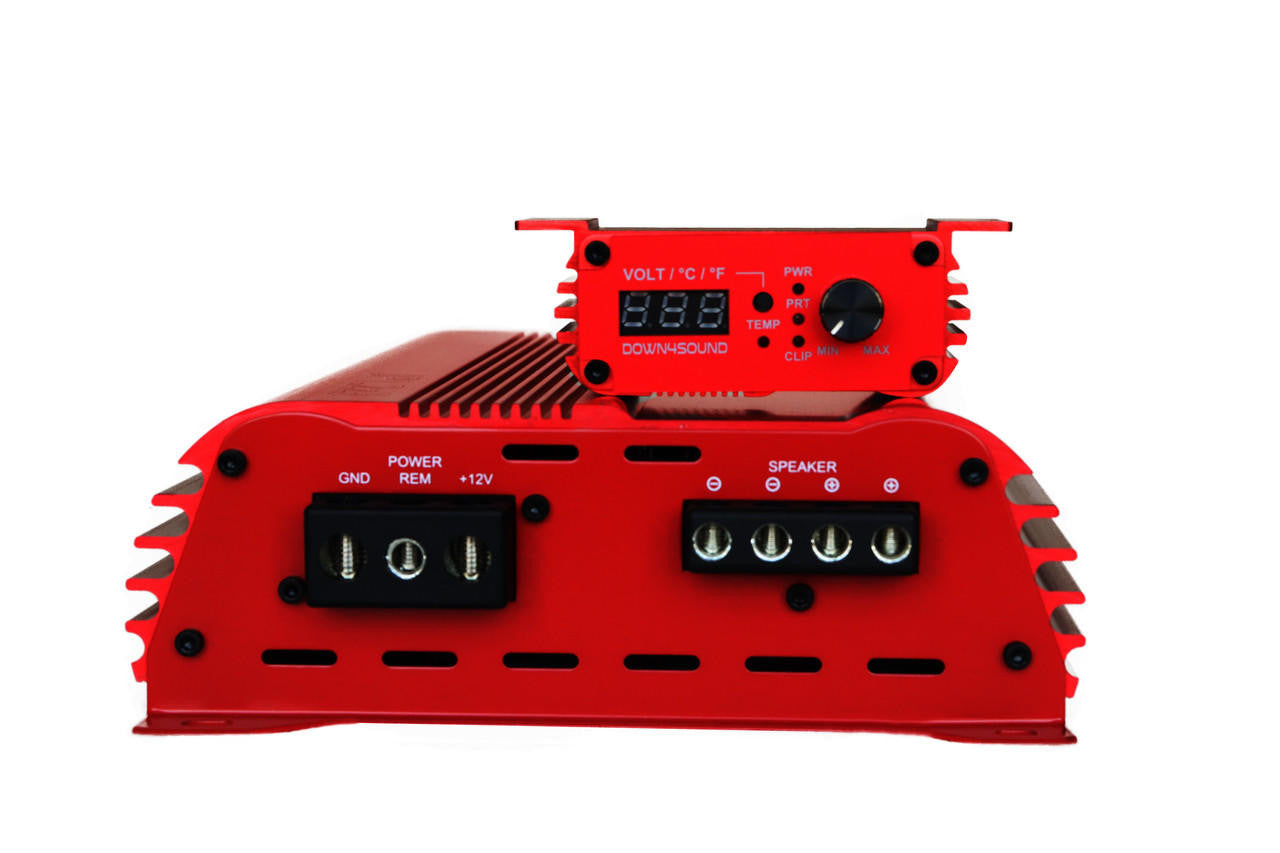

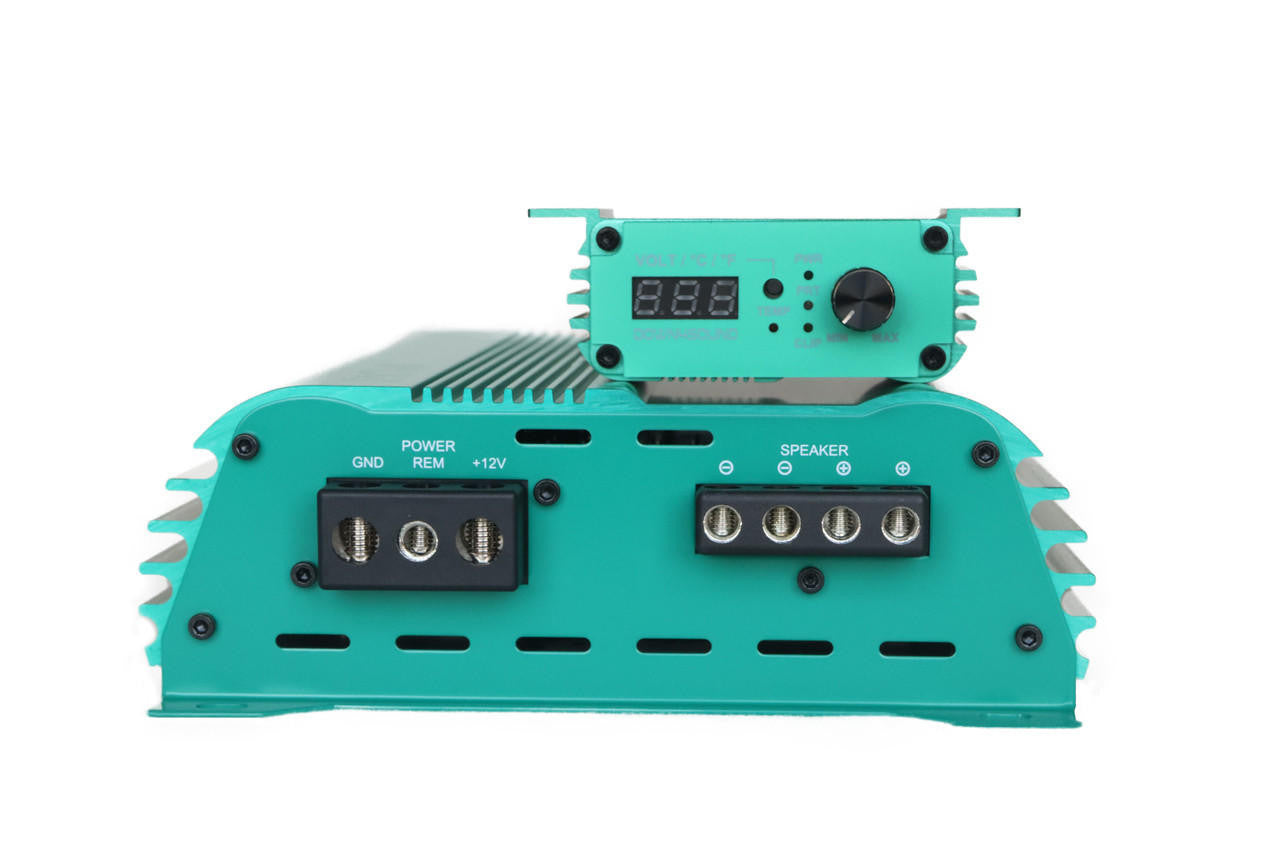

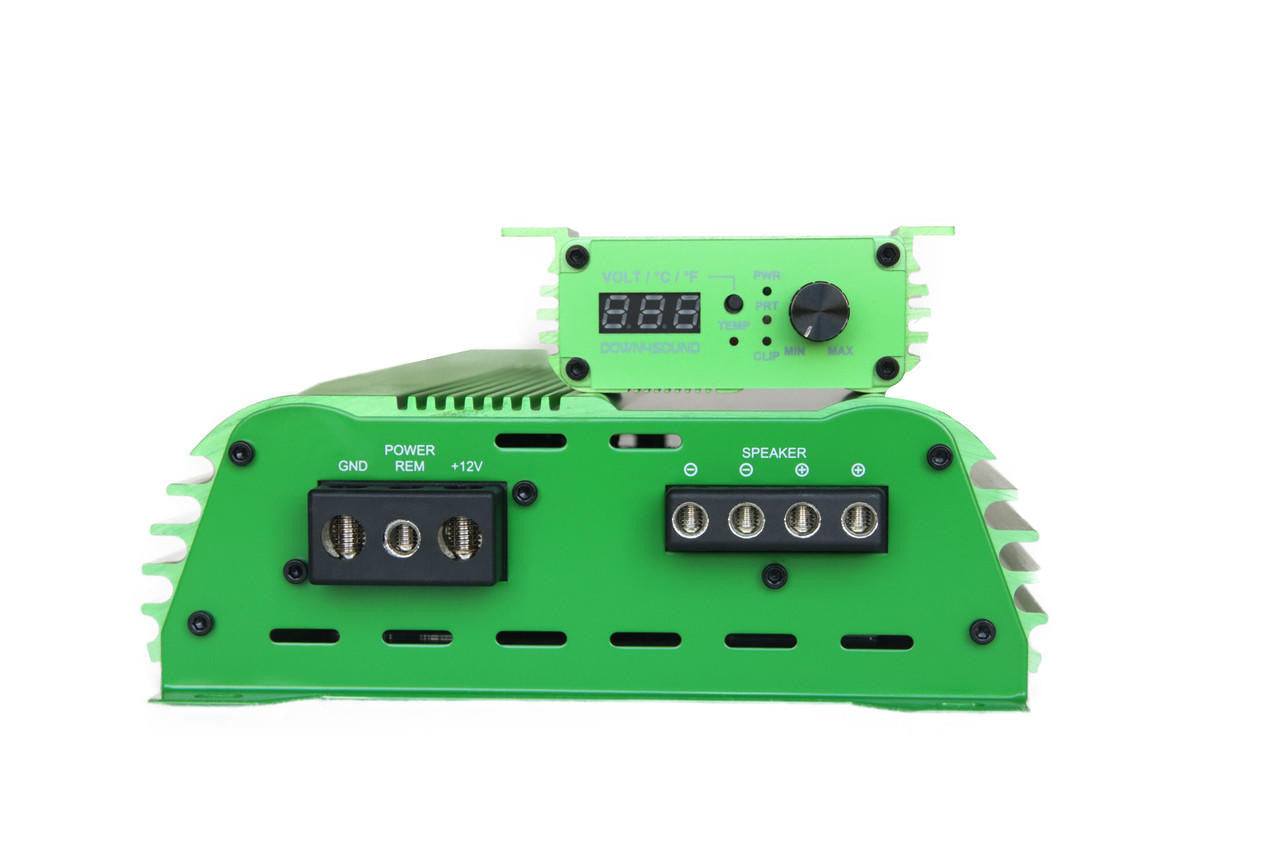

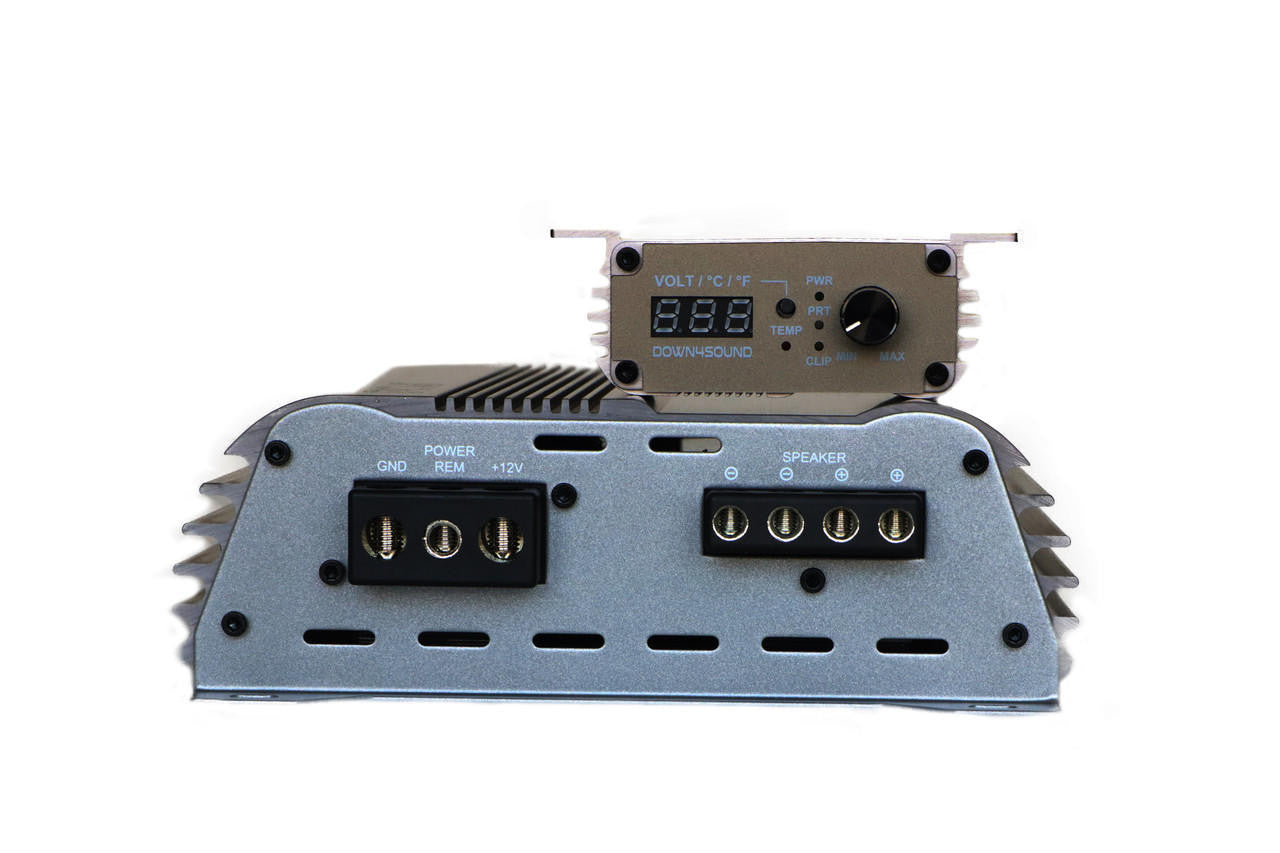

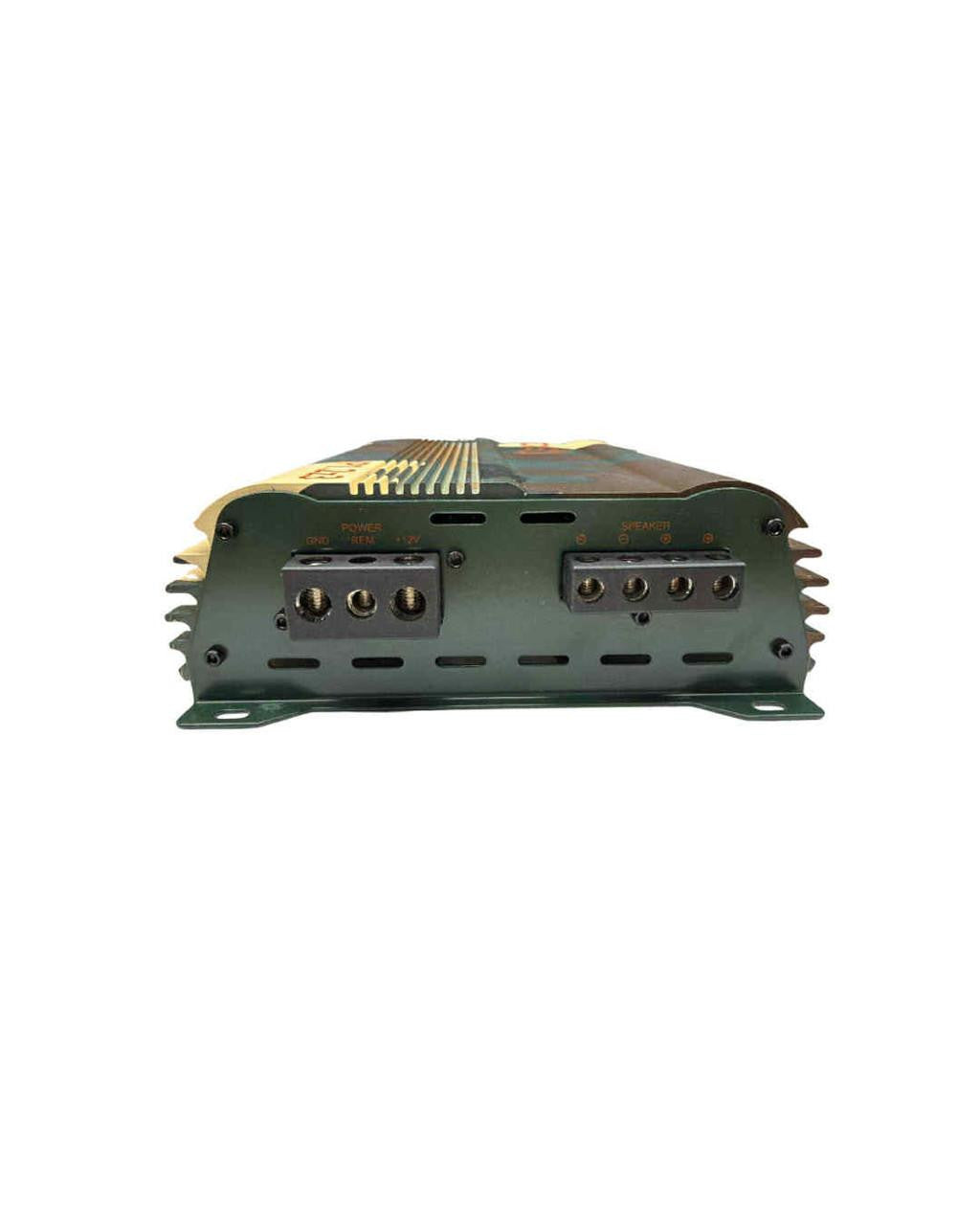

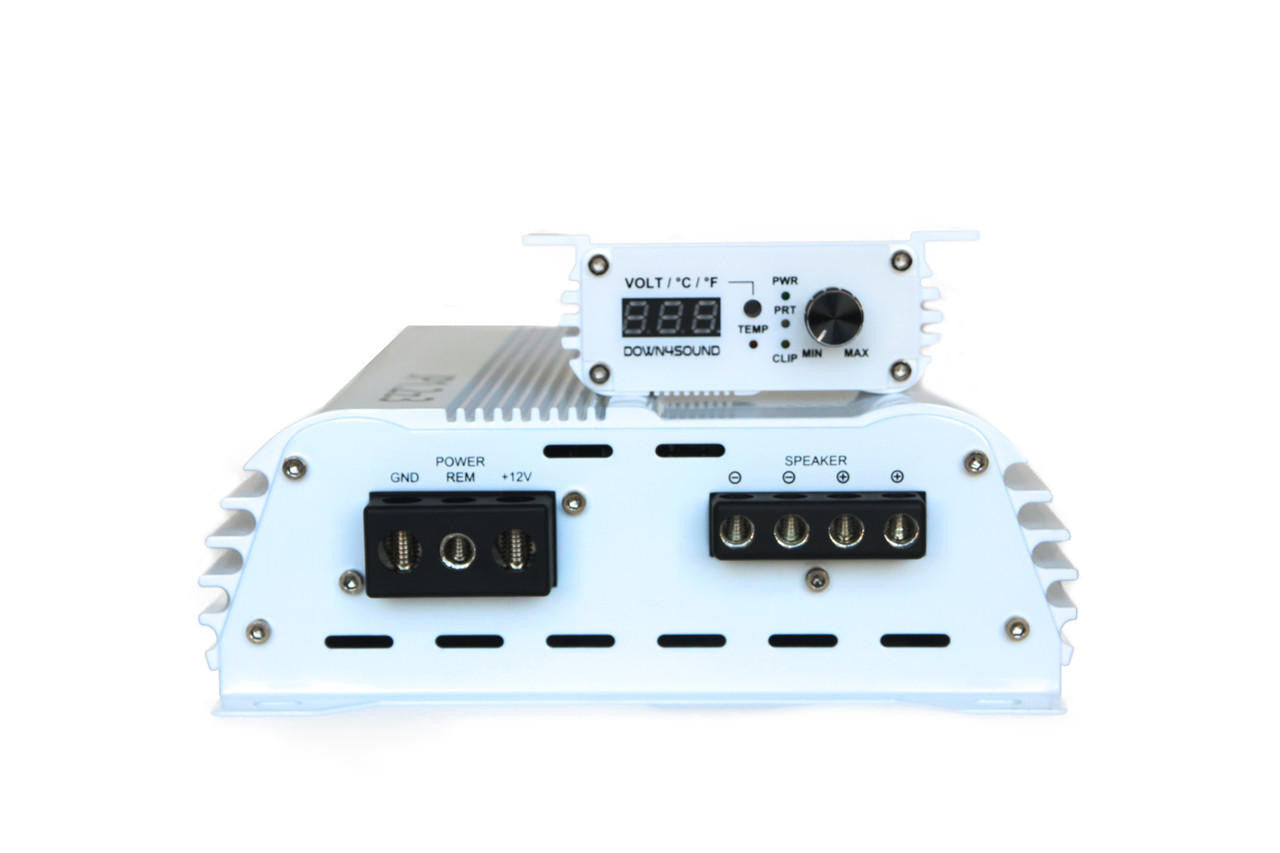

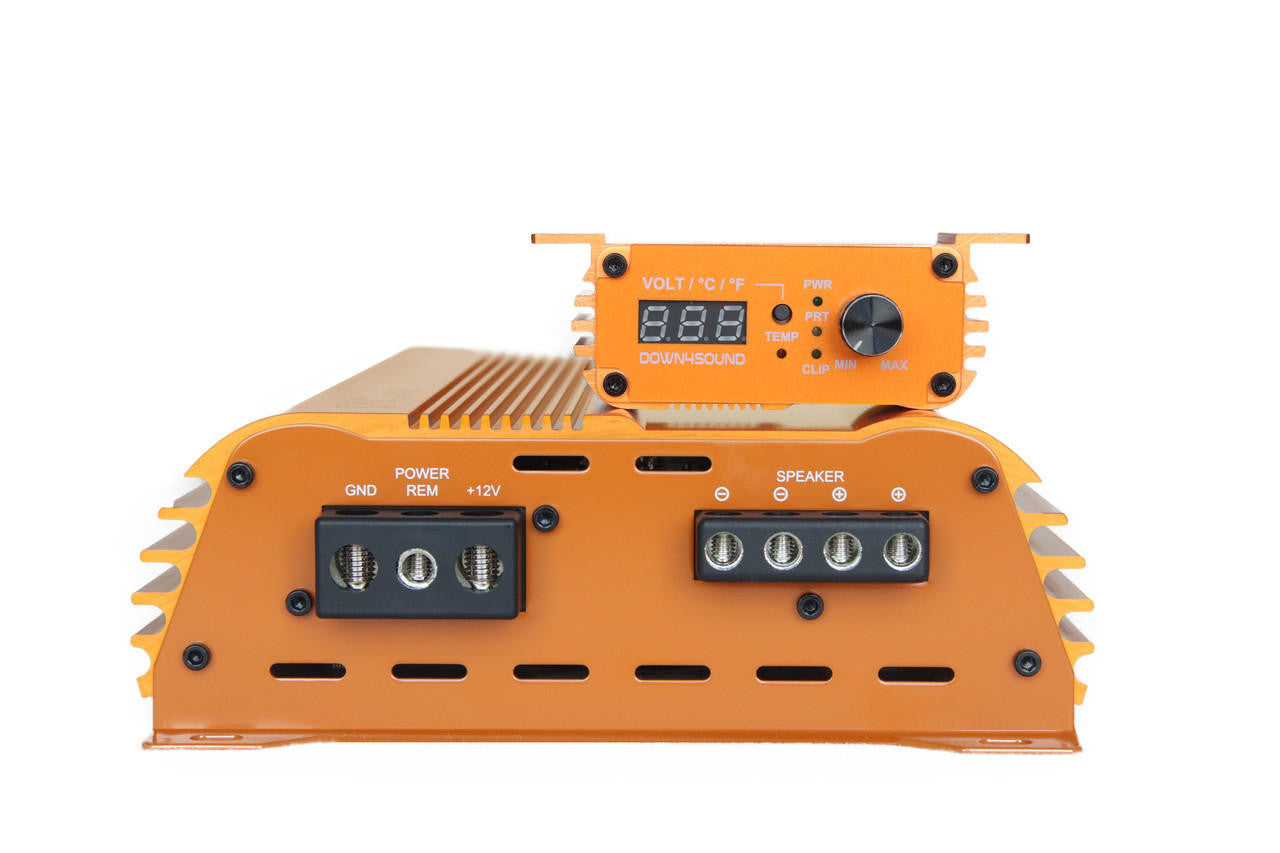

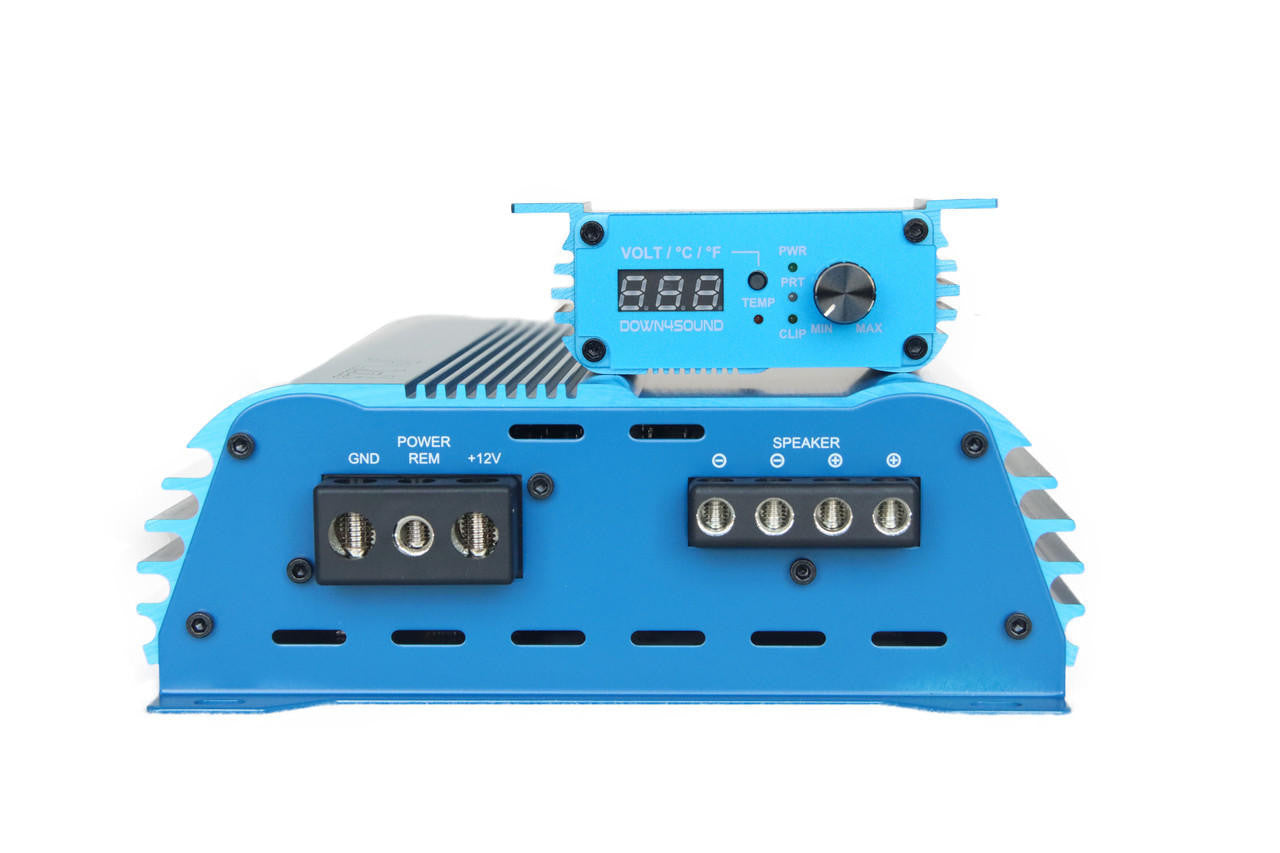

- 4 Gauge Power/Ground Terminals
Specifications
- Output Power:
- 1200W x 1 @ 14.4V (1 Ohm)
- 1200W x 1 @ 14.4V (2 Ohm)
- 1200W x 1 @ 14.4V (4 Ohm)
- 2400W x 1 Strapped
- Frequency Response: 11Hz - 239Hz
- Variable Filters:
- Low Pass Filter: 35Hz - 250Hz
- Subsonic Filter: 10Hz - 50Hz
- Bass Boost: 0 - 9 dB
- Input Sensitivity: 6V - 0.2V
- Signal to Noise Ratio: 92dB
- Total Harmonic Distortion (THD): Less than 0.1% @ 4 Ohms
- Voltage Range: 9V - 15.5V
- Fuse Ratings:
- 190A (single)
- 380A (strapped)
- Dimensions: 9.05”L x 7.48”W x 2.24”H
