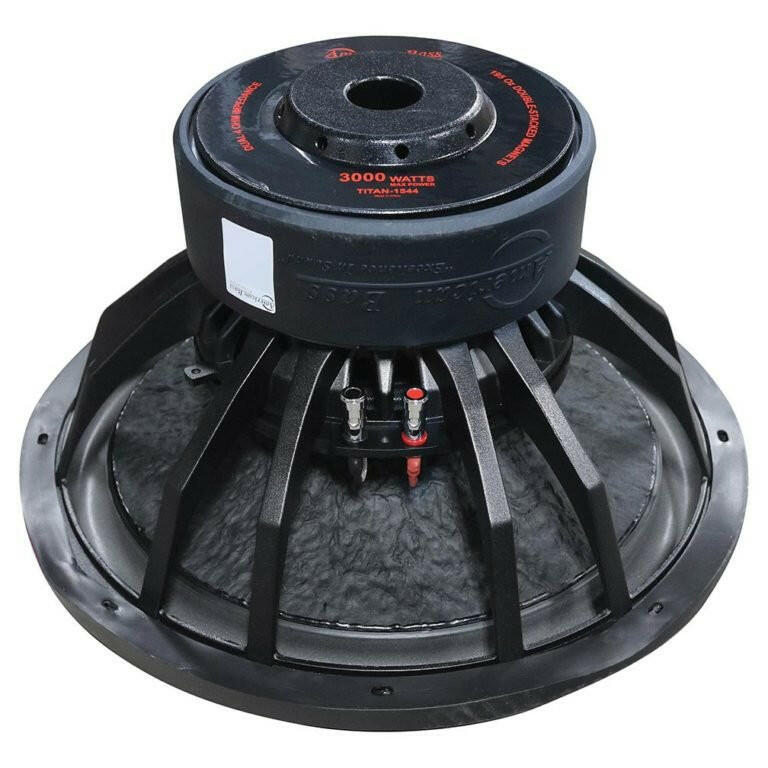

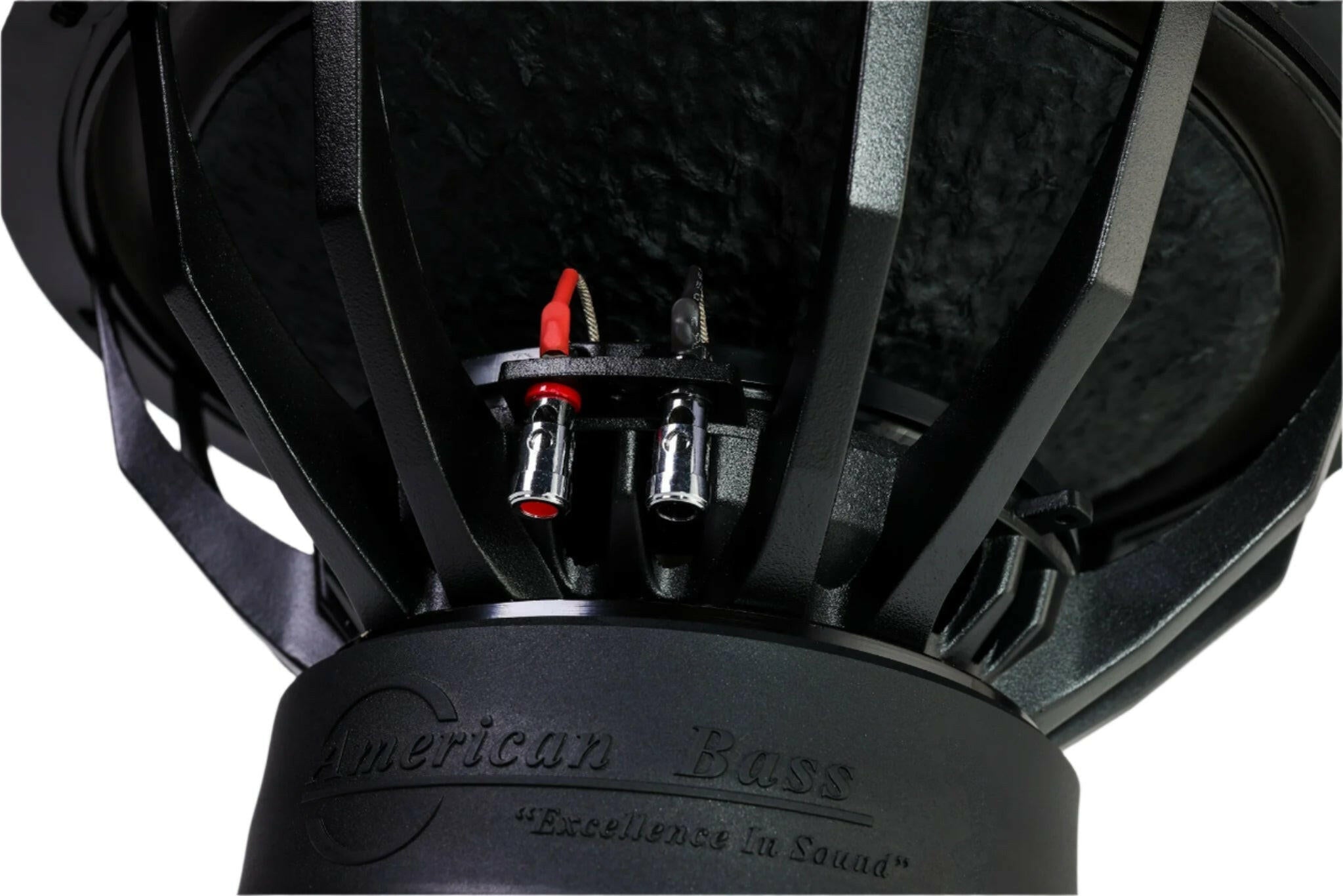

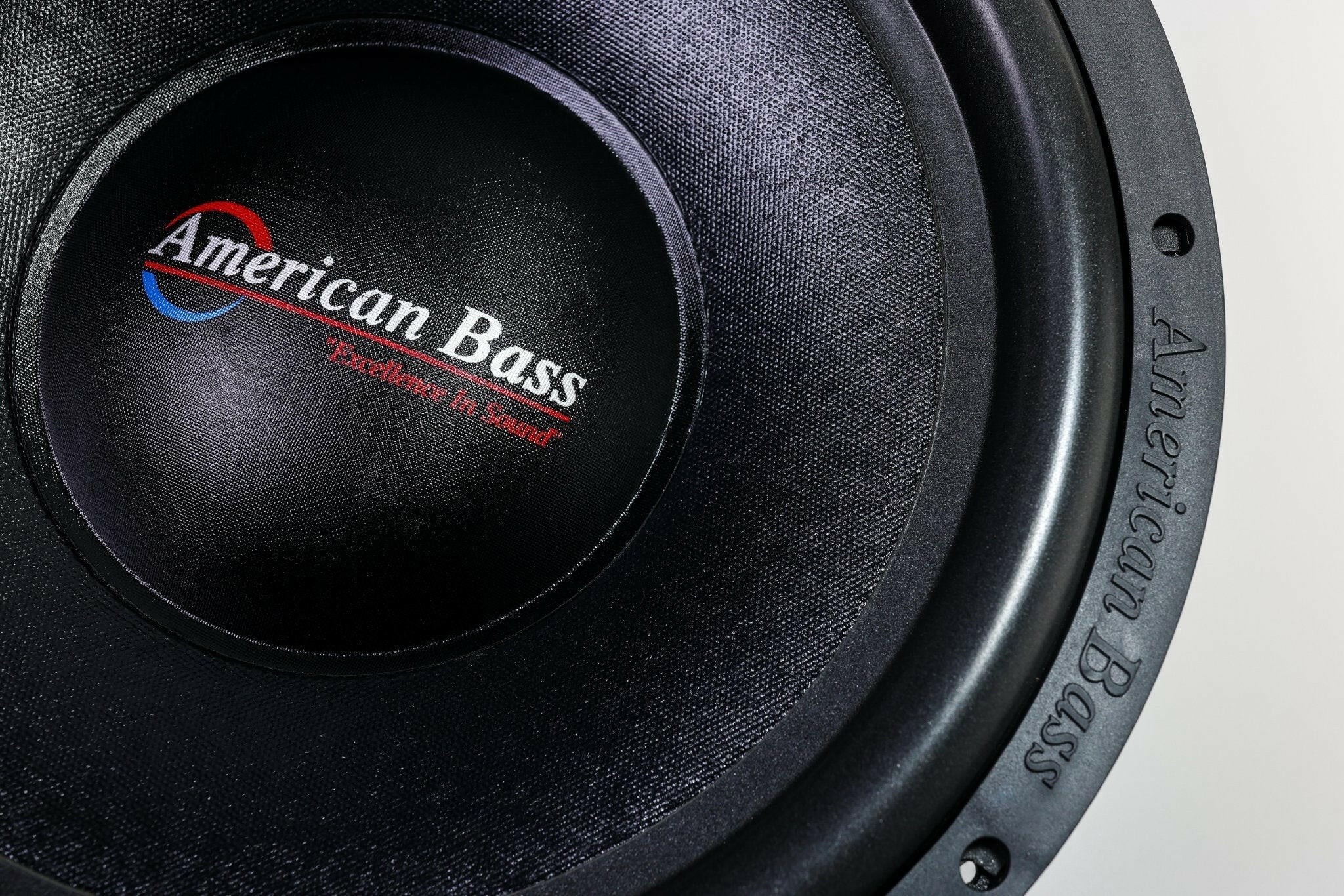

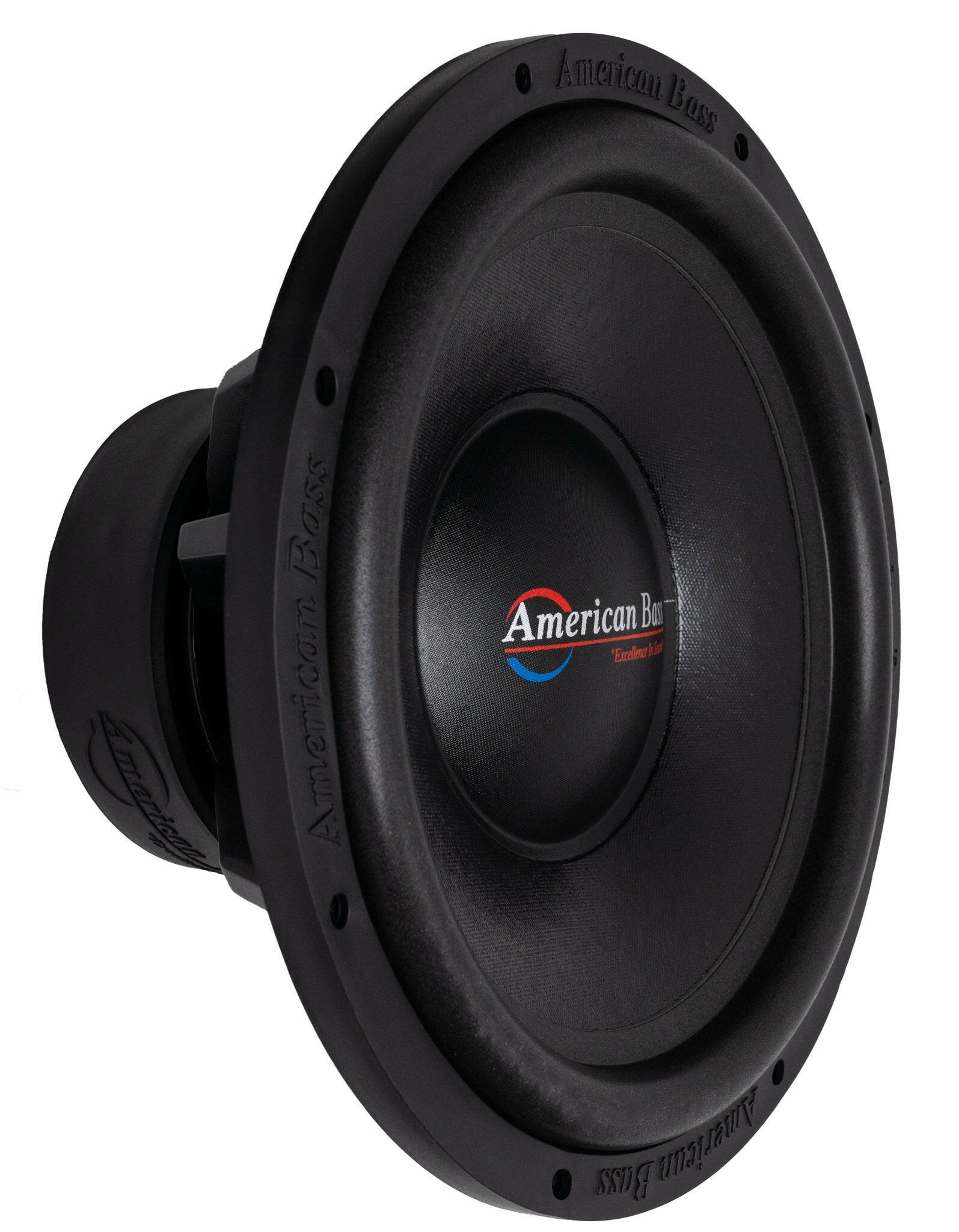

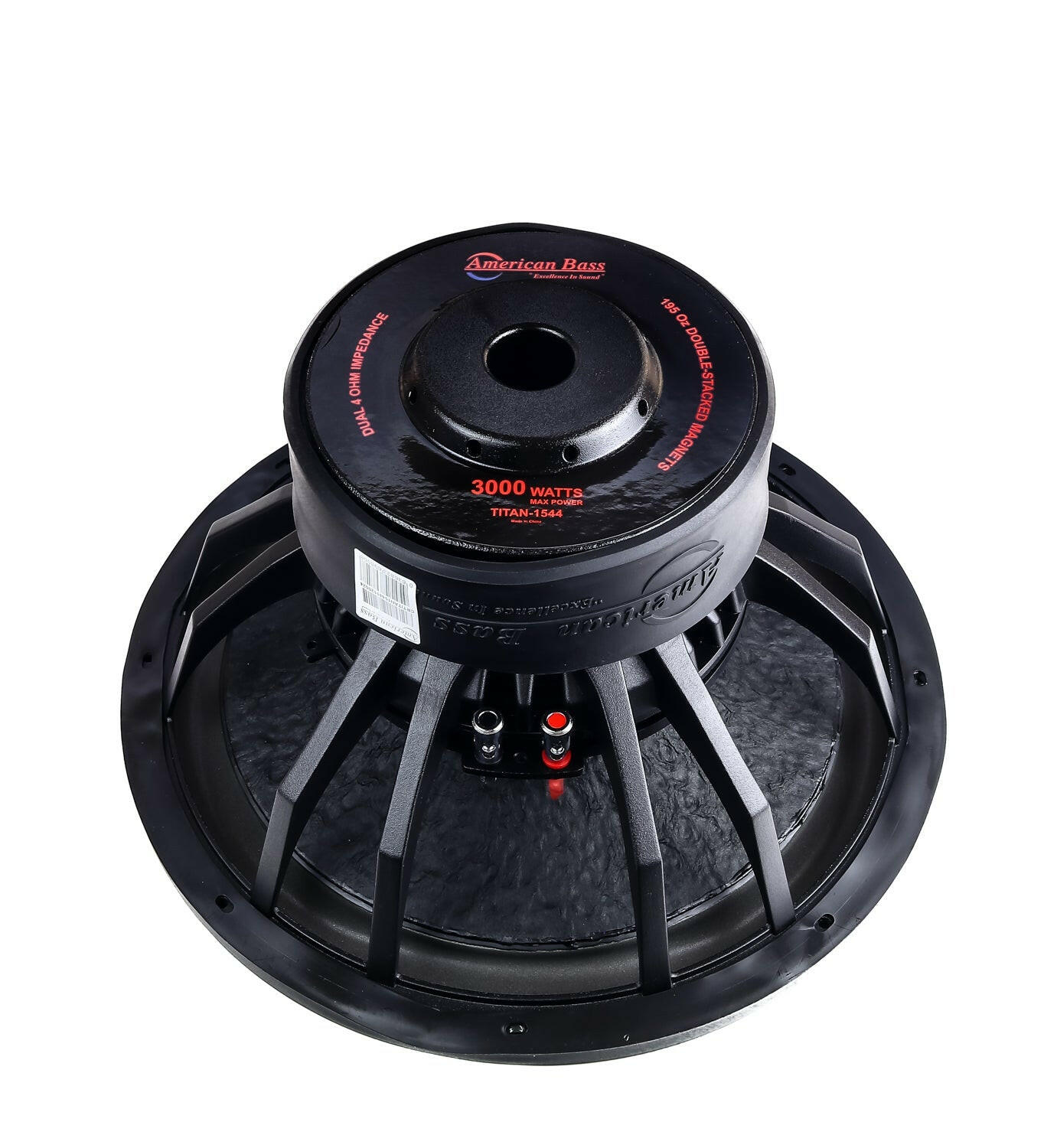

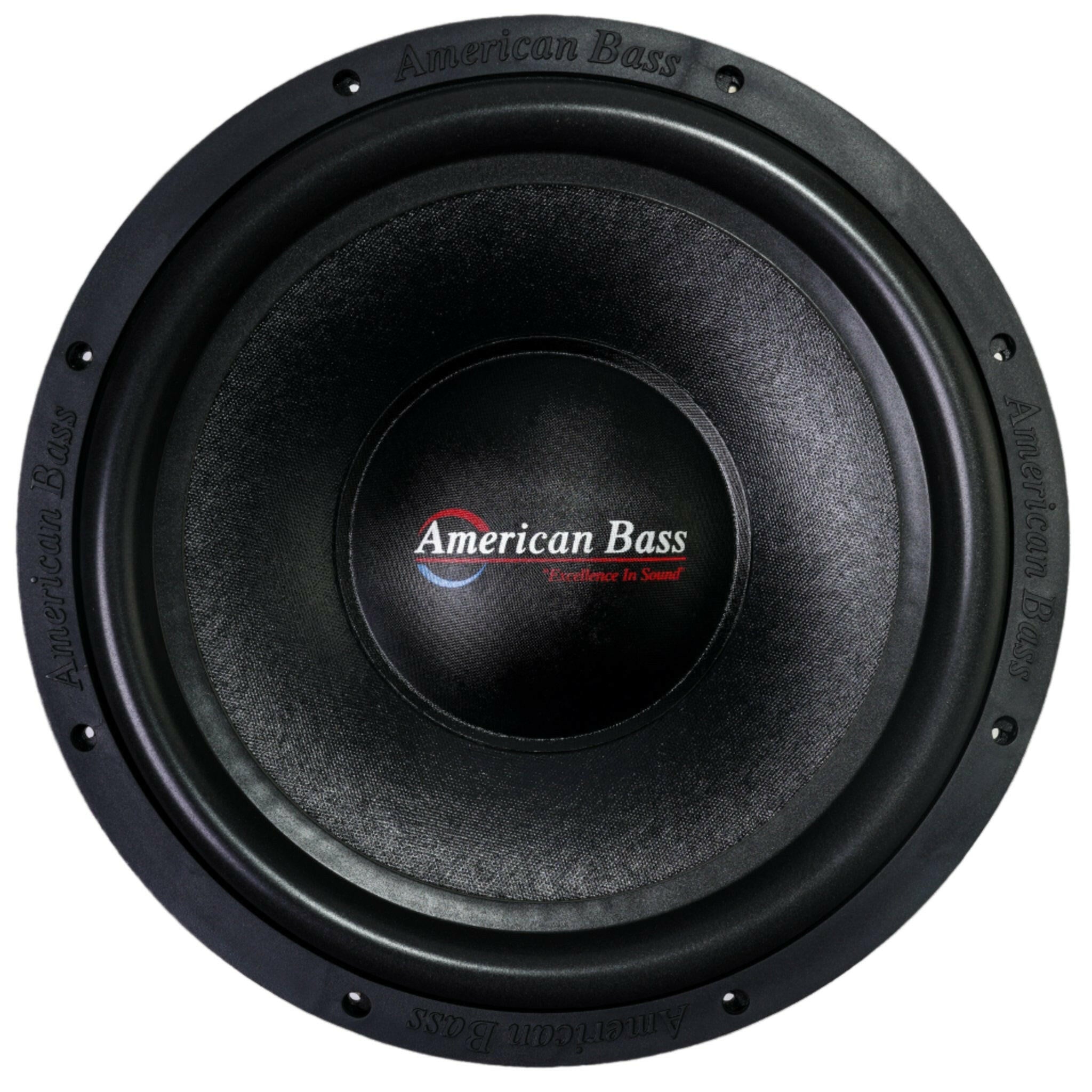

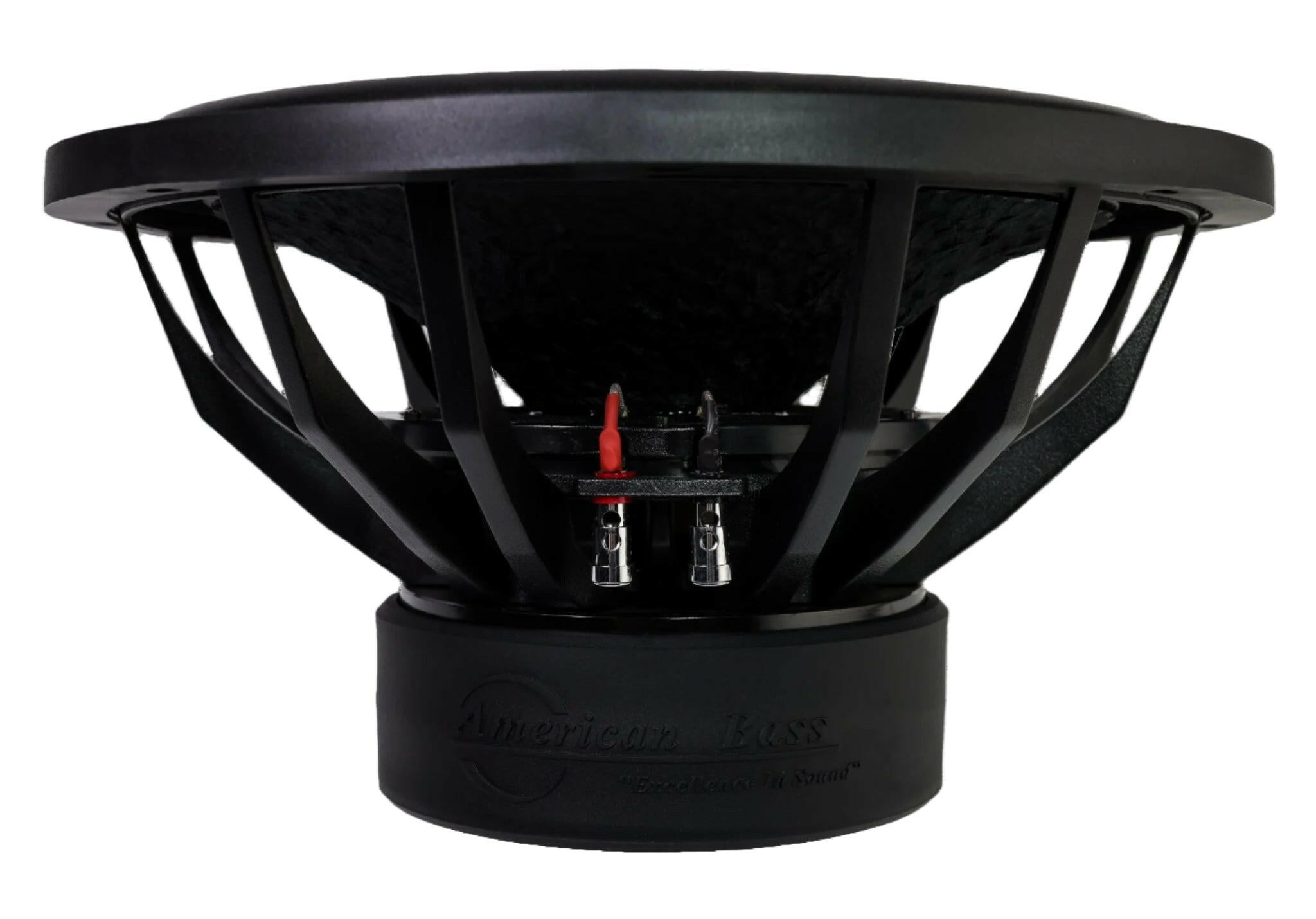

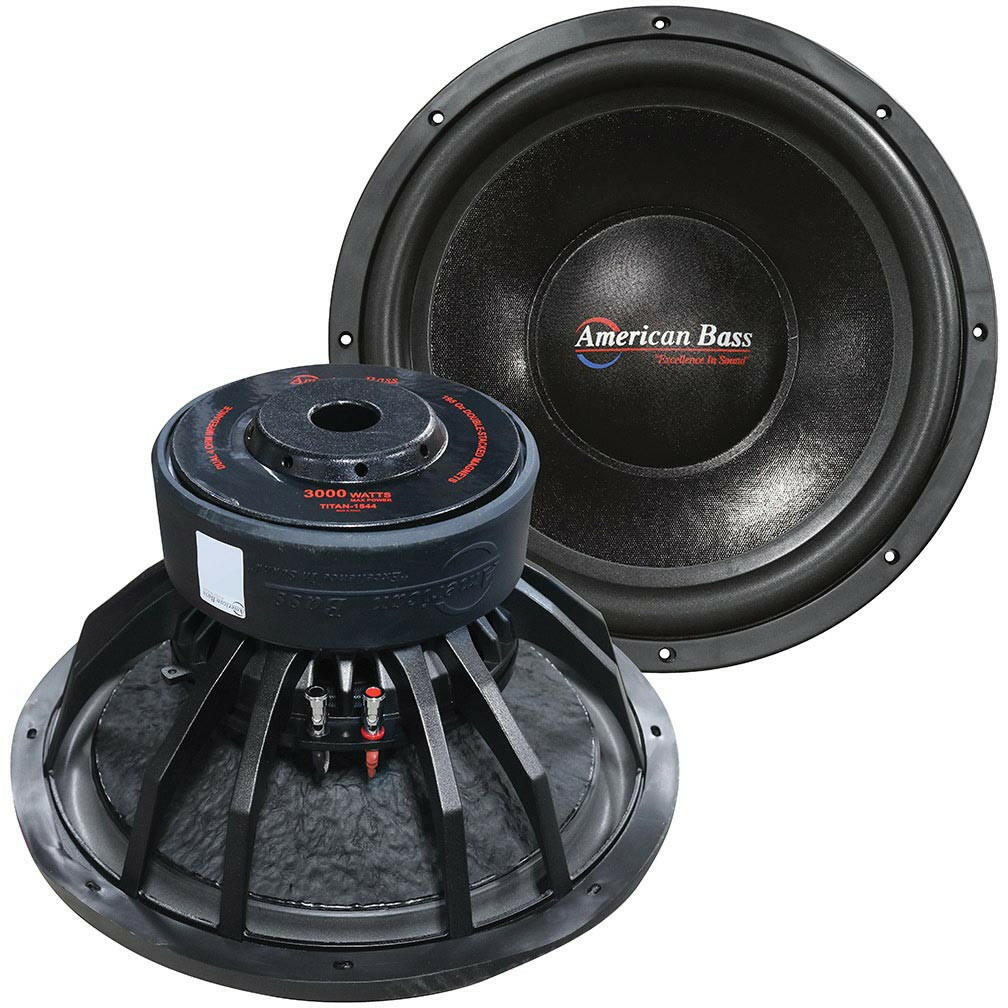

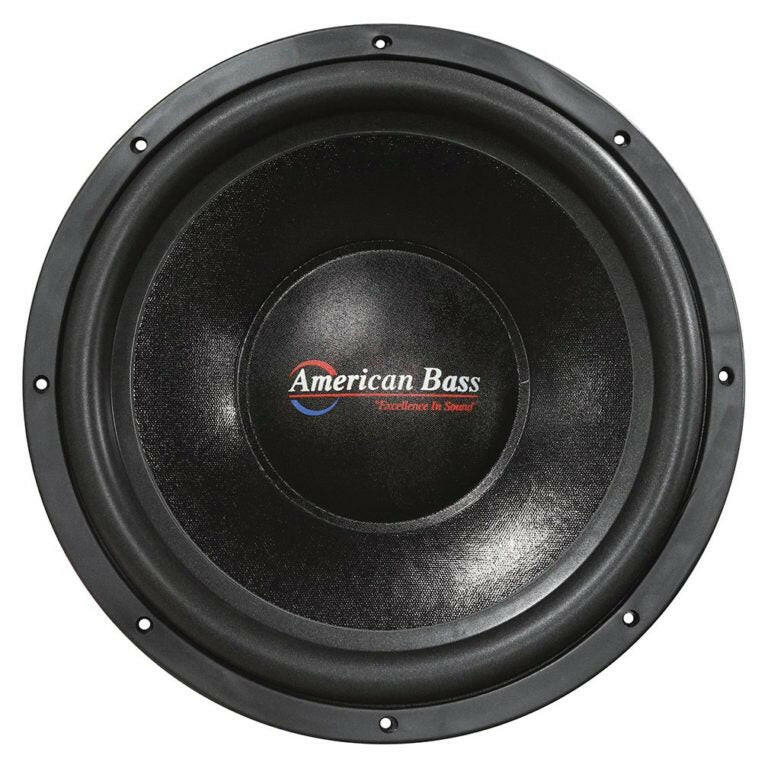

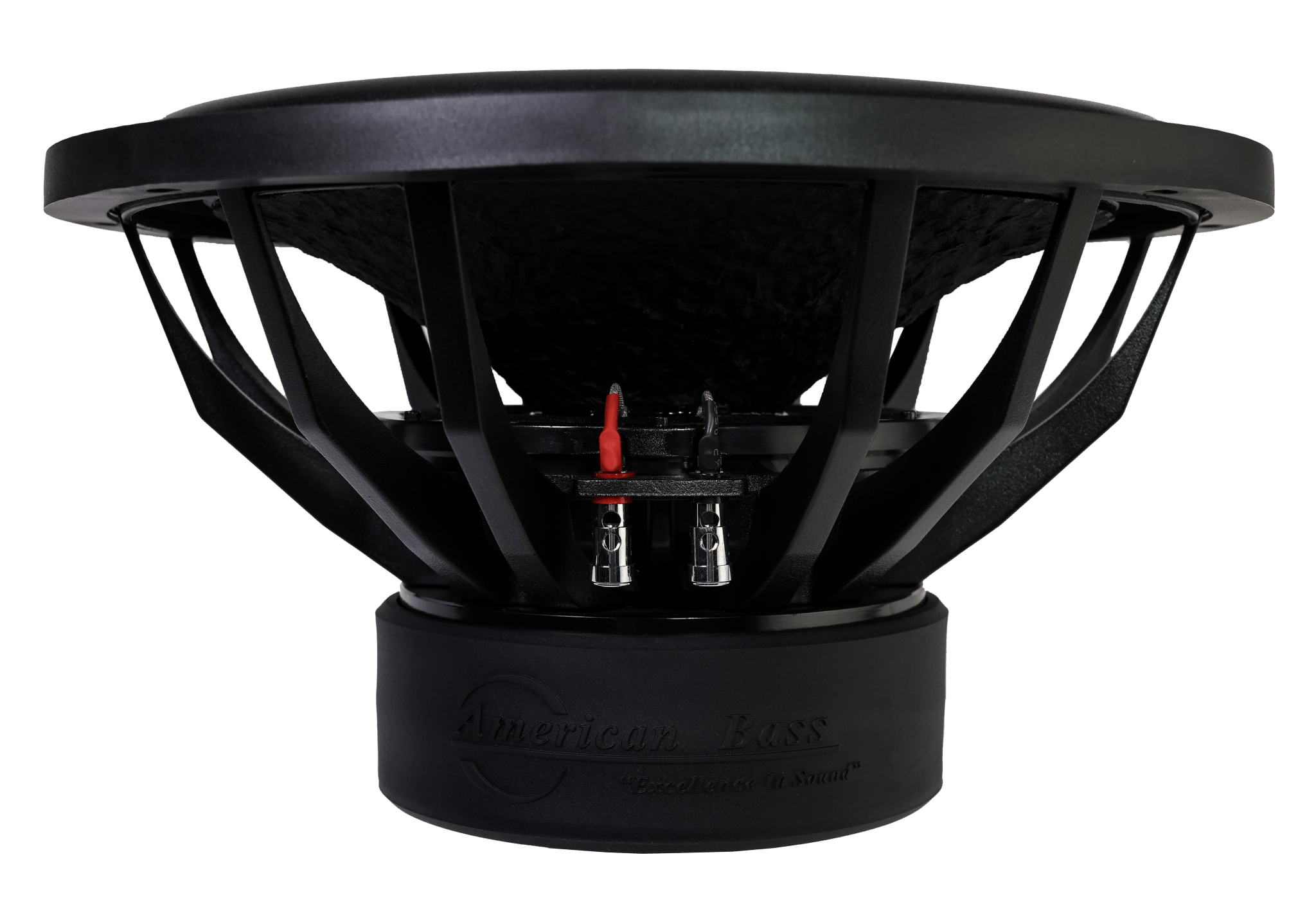

American Bass Titan 15" Car Subwoofer 800 Watts RMS Dual Voice Coil 4 Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 800W RMS / 1600W Max — big 15" output for serious low end
- Dual 4Ω voice coils — wire to match your amp
- 3" 4-layer voice coil with Nomex — built to take the heat
- 150 oz double-stacked magnet — strong, controlled motor
- Titan 15" (TITAN-1544) — Kevlar-reinforced cone, vented basket
American Bass Titan 15" Car Subwoofer — 800W RMS Dual Voice Coil (TITAN-1544)
This Listing Includes:
- (1) American Bass Titan 15" Subwoofer
The American Bass Titan 15" brings heavy, room-filling bass at a price that makes building a system easy. You get a 3" four-layer voice coil with Nomex protection, a Kevlar-reinforced paper cone, and a vented stamped basket that keeps the Titan 15" cool when you lean on it. Wire the dual 4Ω coils to your amp and enjoy deep, confident output. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- High-temperature 4-layer voice coil with Nomex protection
- Double stacked high-energy magnets (150 oz)
- Heavy-duty stamped basket with perimeter vents for voice-coil cooling
- Oversized 1.4" 3-layer foam surround
- Kevlar-reinforced paper cone
Specifications
| RMS Power | 800W |
| Max Power | 1600W |
| Impedance | Dual 4Ω |
| Sensitivity | 87.9 dB |
| Voice Coil Diameter | 3.0" |
| Magnet Weight | 150 oz |
| Basket | Stamped steel |
| Mounting Depth | 7.63" |
| Cutout Diameter | 13.97" |
| Re | 6 Ω |
| Fs | 42.77 Hz |
| Qts | 0.734 |
| Qes | 0.831 |
| Qms | 6.255 |
| Vas | 42.08 L |
| Xmax | 18.0 mm |
| BL | 25.13 |
| Mms | 325.66 g |
| Sd | 834.69 cm² |
